Section 4 Maintenance

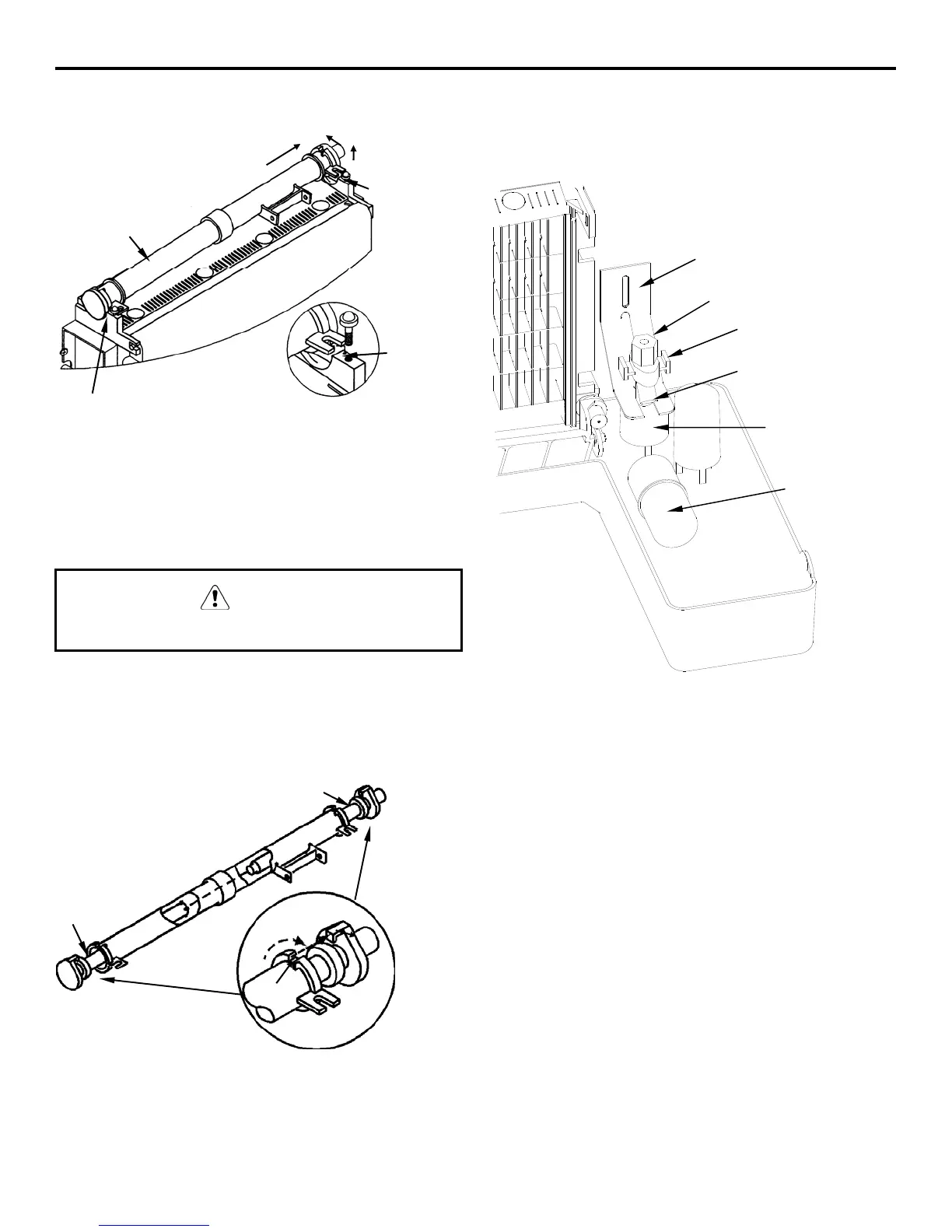

D. Remove the Water Distribution Tube
Water Distribution Tube Removal
• Loosen the two thumbscrews, which secure the
distribution tube.
• Lift the right side of the distribution tube up off
the locating pin, then slide it back and to the
right.
CAUTION
Do not force this removal. Be sure the locating pin is clear of
the hole before sliding the distribution tube out.
Disassembly
• Twist both of the inner tube ends until the tabs
line up with the keyways.
• Pull the inner tube ends outward.
Water Distribution Tube Disassembly
E. Remove the Float Valve
• Turn the splash shield counterclockwise one or
two turns.
Float Valve Removal
• Pull the float valve forward and off the mounting
bracket.
• Disconnect the water inlet tube from the float
valve at the compression fitting.
• Remove the cap and filter screen for cleaning.
SV1211
INNER
TUBE
INNER
TUBE
KEYWAY
TAB
1. LIFT UP
2. SLIDE BACK
3. SLIDE TO RIGHT
THUMBSCREW
DISTRIBUTION
TUBE
THUMBSCREW
1
2
3
SV127
LOCATING PIN
SPLASH SHIELD
FLOAT
SHUT-OFF
VALVE
COMPRESSION
FITTING
FLOAT V
LVE
BRACKET
SV1695-2
CAP AND FILTER
SCREEN
