4-4
Maintenance Section 4

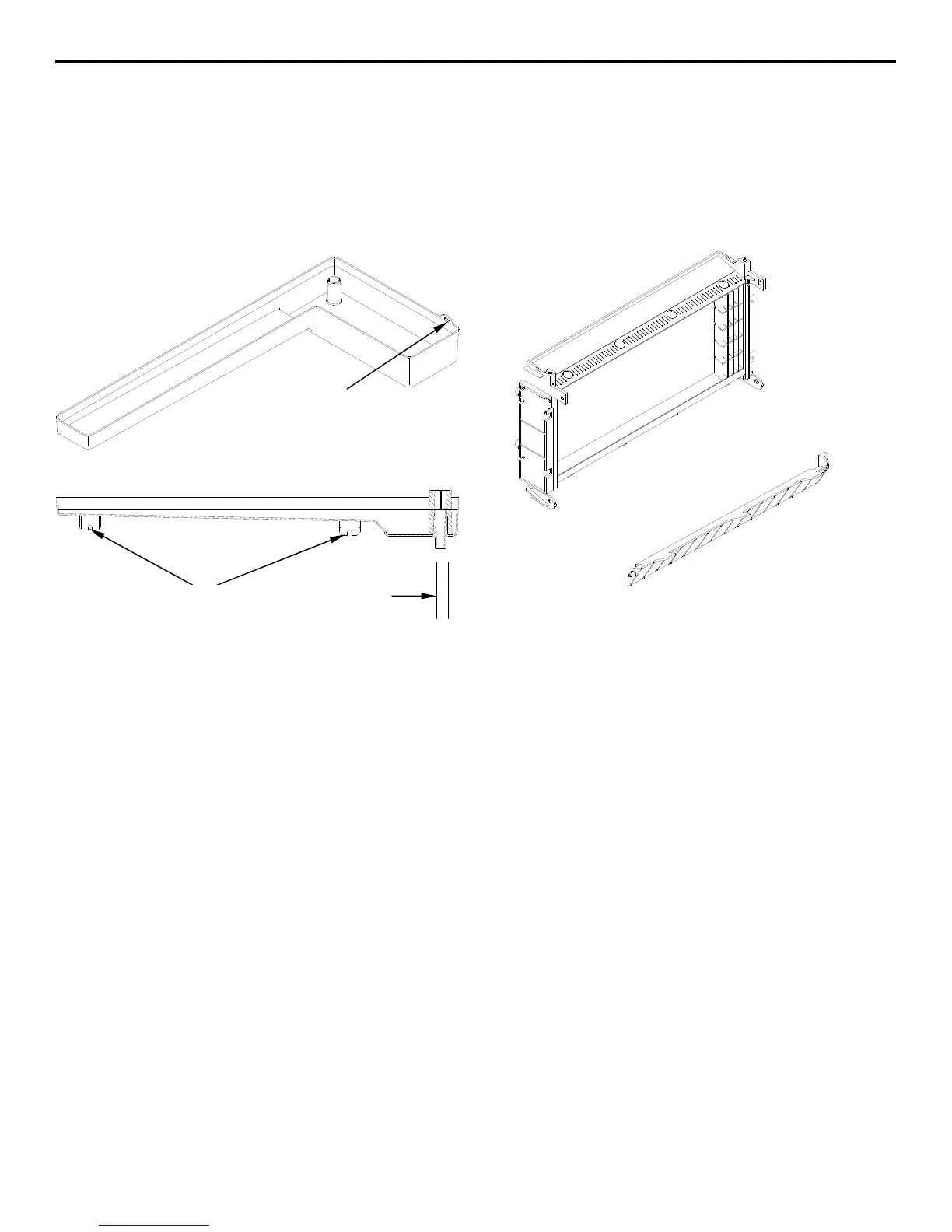

F. Remove the Water Trough
• Apply downward pressure on the siphon tube and
remove from the bottom of the water trough.
• Remove the upper thumbscrew.
• While supporting the water trough remove the
two thumbscrews from beneath the water trough.
• Remove the water trough from the bin area
G. Remove the Ice Damper
• Grasp ice damper and apply pressure toward the
left hand mounting bracket.
• Apply pressure to the right hand mounting
bracket with thumb.
• Pull ice damper forward when the right hand ice
damper pin disengages.
Installation
• Place ice damper pin in left hand mounting
bracket and apply pressure toward the left hand
mounting bracket.
• Apply pressure to the right hand mounting
bracket with thumb.
• Push ice damper toward evaporator until right
hand damper pin engages.
SV1689-1
UPPER
THUMBSCREW
REMOVE SIPHON
TUBE
LOWER
THUMBSCREWS
