Section 2 Installation Instructions
Part Number 040001360 6/14 7
WATER SUPPLY AND DRAIN LINE SIZING/CONNECTIONS
1
Min. = Minimum
2
Max. = Maximum

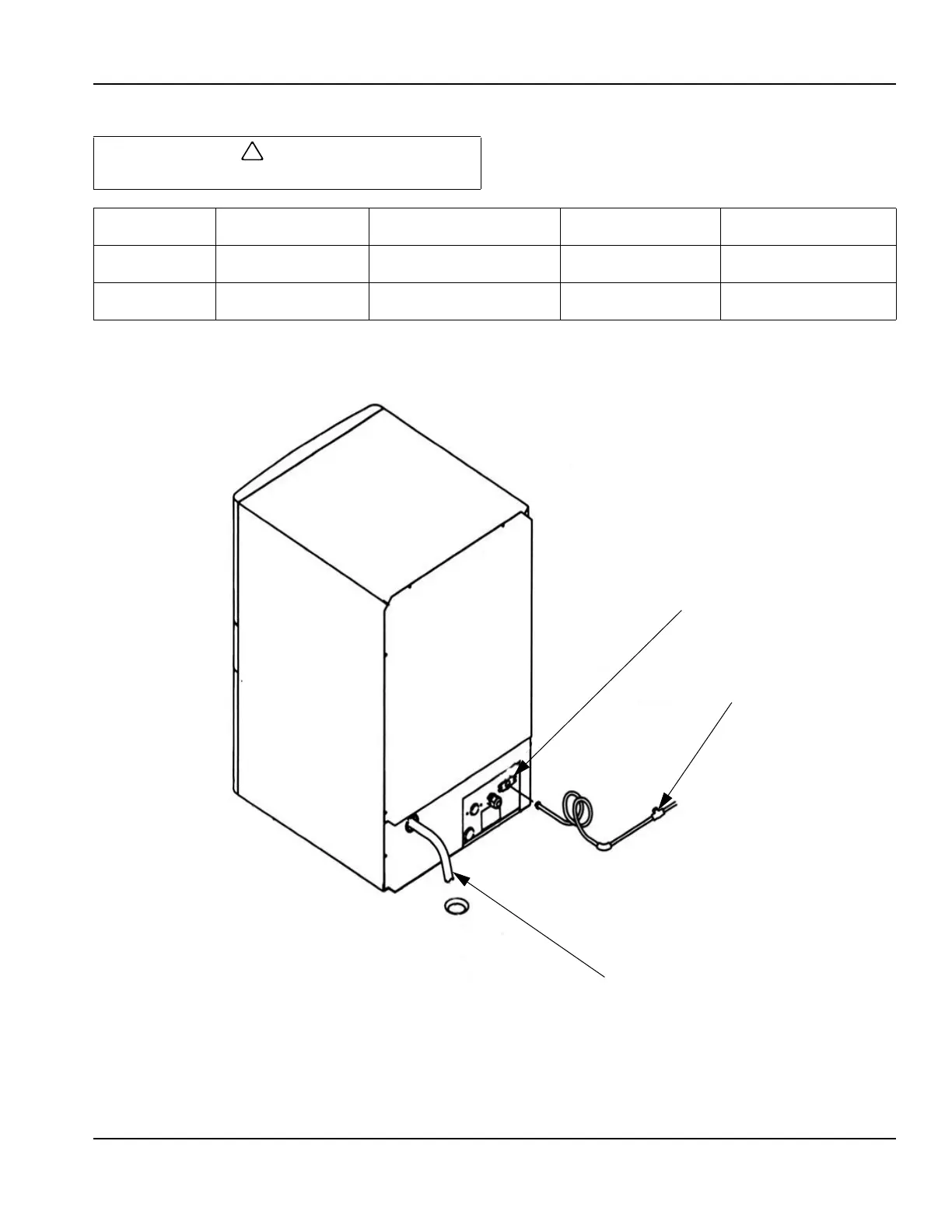

Typical Water Supply and Drain Line Sizing and Connections
Plumbing must conform to state and local codes.
Water
Temperature
Water
Pressure
Ice Machine
Fitting
Tubing Size Up to Ice
Machine Fitting
Ice Making
Water Inlet
0.6°C (33°F) Min.
1
32.2°C (90°F) Max.
2
137.9 kPA (20 psi) Min.
1
551.5 kPA (80 psi) Max.
2
3/8" male hose
connection
0.95 cm (3/8") minimum
inside diameter
Ice Making/Bin
Water Drain
—— ——
1.59 cm (5/8") inside
diameter flexible hose
1.59 cm (5/8") minimum
inside diameter
WATER SHUTOFF
VALVE
ICE MAKING WATER INLET
TUBING 0.95 cm (3/8") MIN.I.D.
ICE MAKING WATER/BIN
DRAIN 1.59 cm (5/8") MIN.I.D.
