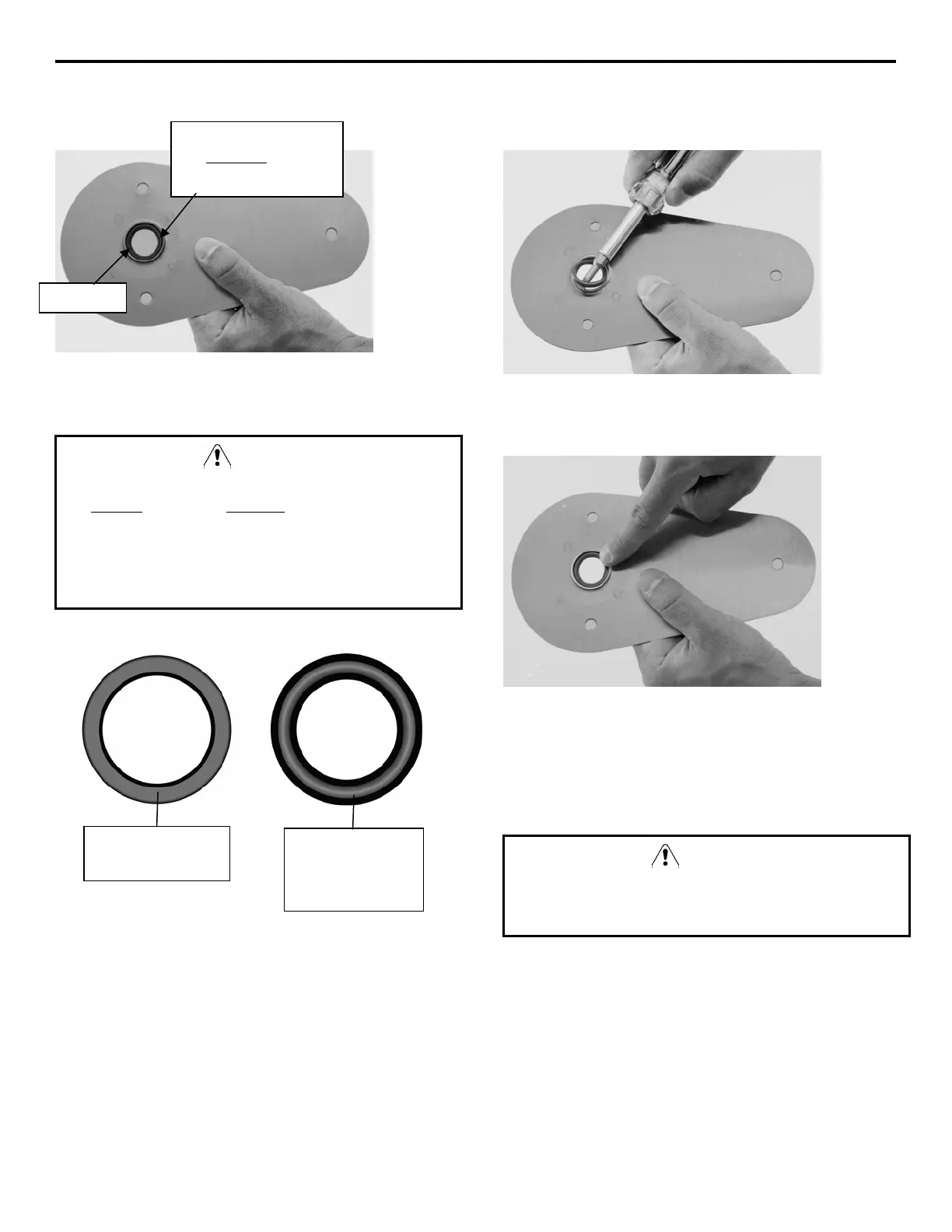

5-2
Component Parts – Removal & Replacement Section 5
Gearmotor Shaft Seal Replacement (continued)
5 Locate the shaft seal on the underside of the bin
insulator plate.
CAUTION
Know which side of the shaft seal you are accessing,
the convex
side or the concave (ridge) side.
Snap in the new seal with the concave (ridge) side
down. Otherwise the seal will not work and the
dispenser will leak.
6 Using a screwdriver, pry out the shaft seal, then
throw the shaft seal away.
7 With the convex side of the shaft seal facing up
(and the concave, ridge side facing down), snap
the new shaft seal onto the bin insulator plate.
CAUTION
Preventive maintenance note:
Replace the motor shaft seal
once a year.
Shaft seal
Shaft seal marks the
underside
of bin
insulator plate
Convex side
(front of shaft seal)
Concave side
(ridge side…back
of shaft seal)
