Manitowoc QY1894N - Ice Machine Dimensions; Q1300;Q1600;Q1800 Ice Machines (Cont.)

Section 2 Installation Instructions
Part No. 80-1100-3 2-3
Q1300/Q1600/Q1800 ICE MACHINES (CONT.)

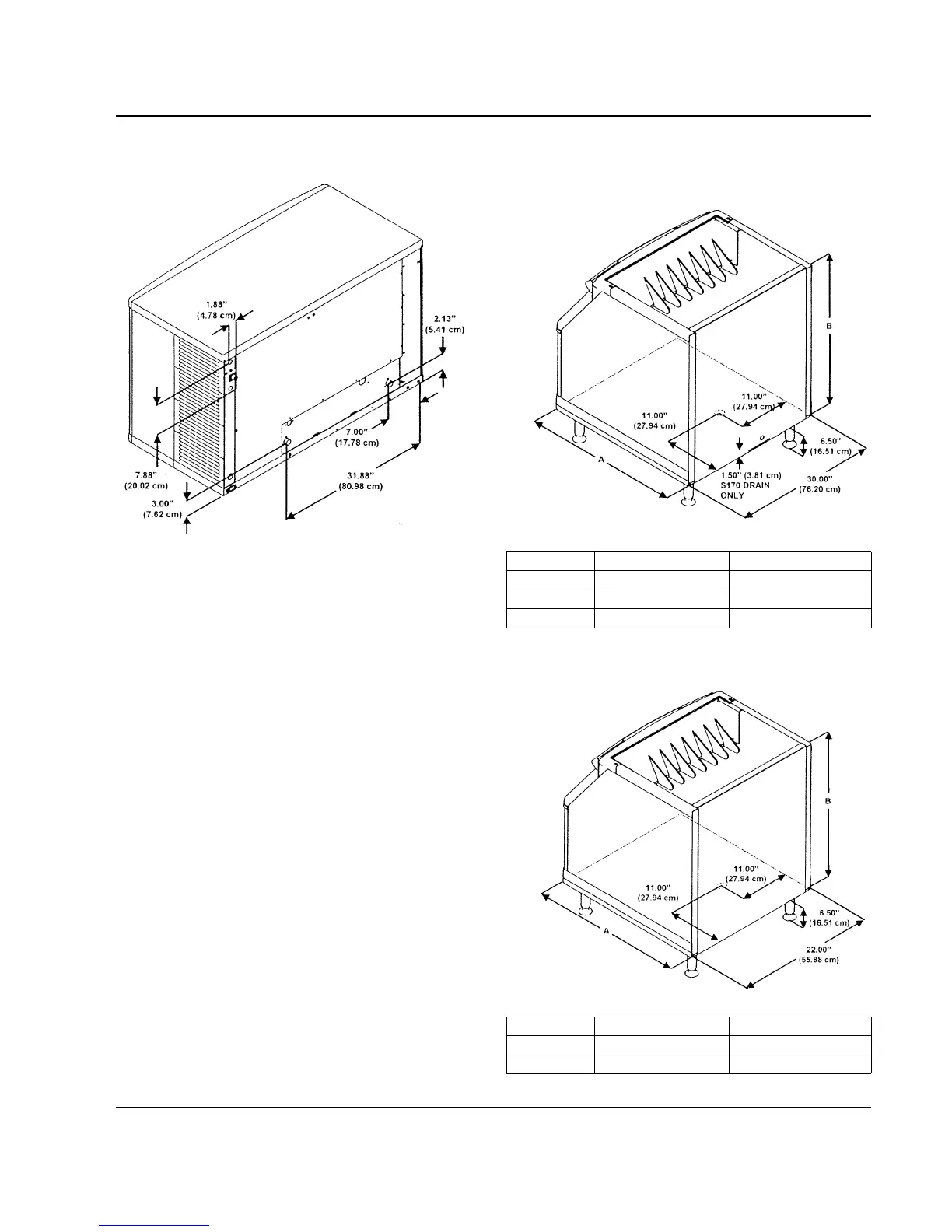

Ice Storage Bin Dimensions
S170/S400/S570 ICE STORAGE BINS
S320/S420 ICE STORAGE BINS
SV1629
REMOTE AIR-COOLED
Bin Model Dimension A Dimension B
S170 29.5 in (74.9 cm) 19.1 in (48.5 cm)
S400 34.0 in (86.3 cm) 32.0 in (81.3 cm)
S570 34.0 in (86.3 cm) 44.0 in (111.7 cm)
Bin Model Dimension A Dimension B
S320 34.0 in (86.3 cm) 32.0 in (81.3 cm)
S420 34.0 in (86.3 cm) 44.0 in (111.7 cm)
SV1609
SV1614
