60 Part Number 000015433_05 3/21
Power Supplied
to Ice Machine?
Toggle Switch In
ON Position?
Move Switch To ON Position
Restore Power, Reset BreakerNO
NO
YES

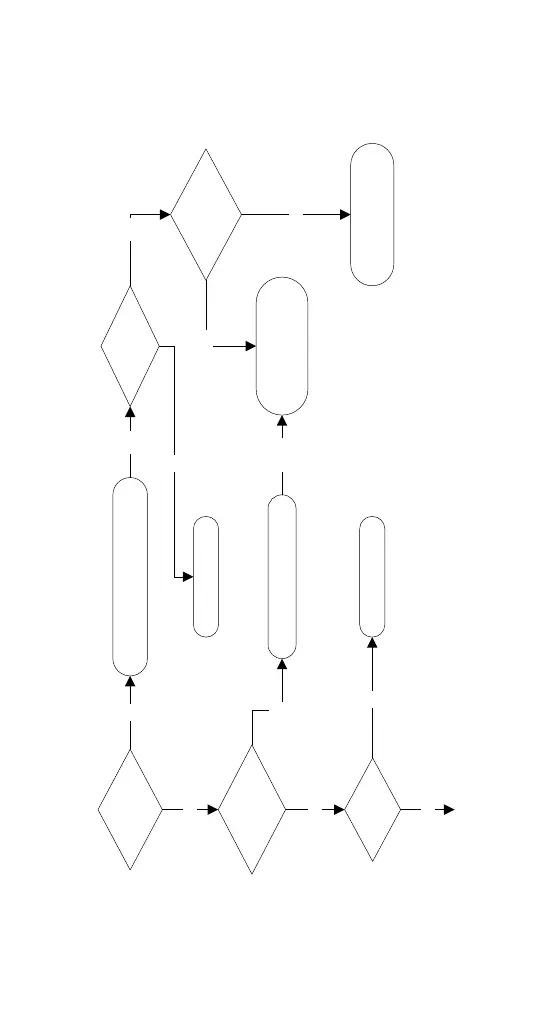

Electrical Flowchart - RNF1020C/RFF1220C QuietQube
Switch
Illuminated?
NO
YES
Replace Switch
Immediately
Trips?
YES
YES
NO
Toggle Switch In
Off Position?
Isolate And Ohm Each
Component - Then Each
Wire If Required
NO
TRIPS
YES
Isolate And Ohm Switch
Check Wiring From Panel
Test Run
YES
