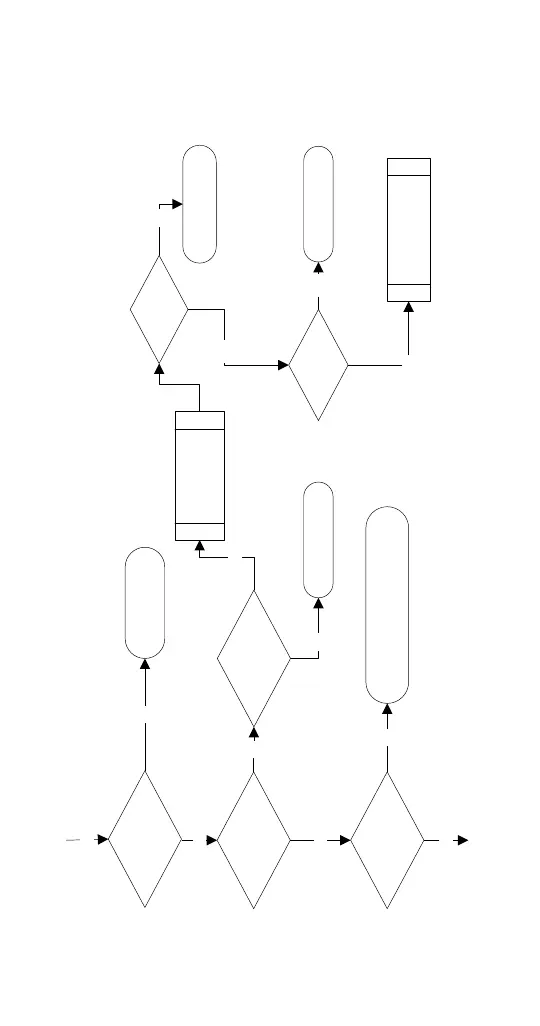

Low Water Level
Switch Closed?
NO
Replace Switch or
Float Assembly
Gear Motor Runs? NO
Line Voltage To
Gear motor?
Repair WiringNO
Disconnect
Evaporator From
Gear Motor
Gear Motor
Runs?
Replace Gear Motor
YES
NO
YES
YES
Ice In
Evaporator?
Rebuild
Or
Replace Evaporator
Thaw EvaporatorYES
NO
YES
YES
YES
8 Minute Time
Delay Expired?
NO
Wait 10 Minutes - Do Not Install
Compressor Time Delay Jumper
