Manitowoc RNF - Page 57

Part Number 000015433_03 5/20 57

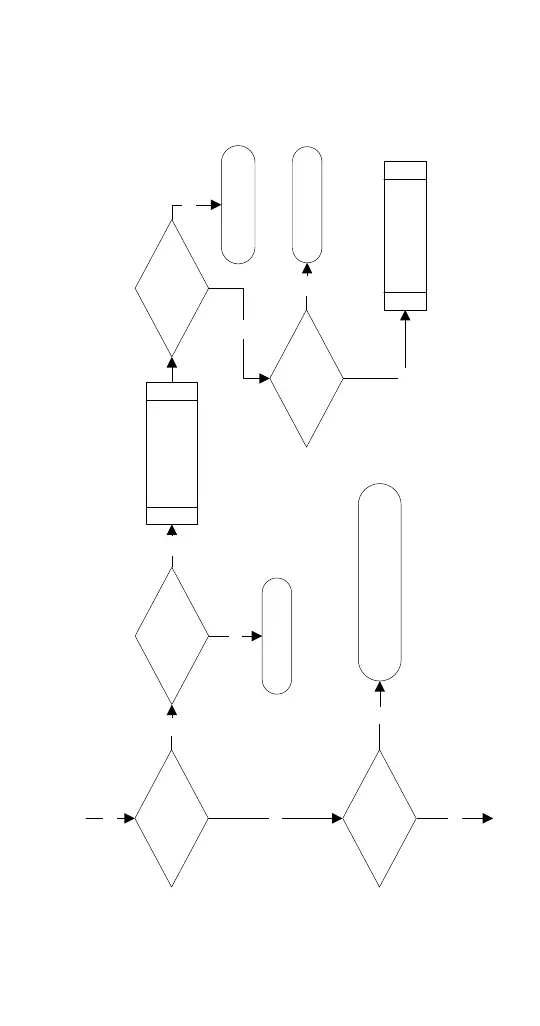

Gear Motor Runs? NO
YES
Line Voltage To
Gear motor?
Repair Wiring
No
Disconnect
Evaporator From
Gear Motor
Ice In Evaporator?
Gear Motor Runs?
Replace Gear Motor
Yes
No
Rebuild
Or
Replace Evaporator
Thaw Evaporator
Yes
Yes
No
Yes
YES
10 Minute Time
Delay Expired?
NO
Wait 10 Minutes - Do Not Install
Compressor Time Delay Jumper
