ATTACHMENTS CD5515-2/YB5515-2 OPERATOR MANUAL
5-6 Published 1-20-2017, Control # 468-02
7. Swing the storage arm forward. Remove pin at location
No. 11. Engage the boom extension with the storage
arm and install pin at location No. 5.
8. Remove pins at No. 6 and disengage boom extension
from boom head. Install pins from location 4 into jib link
to prevent them from becoming lost.
9. Remove pin at location No. 13. Swing the boom
extension to engage it with the bracket on boom. Install
pin at location No. 1.
a0631

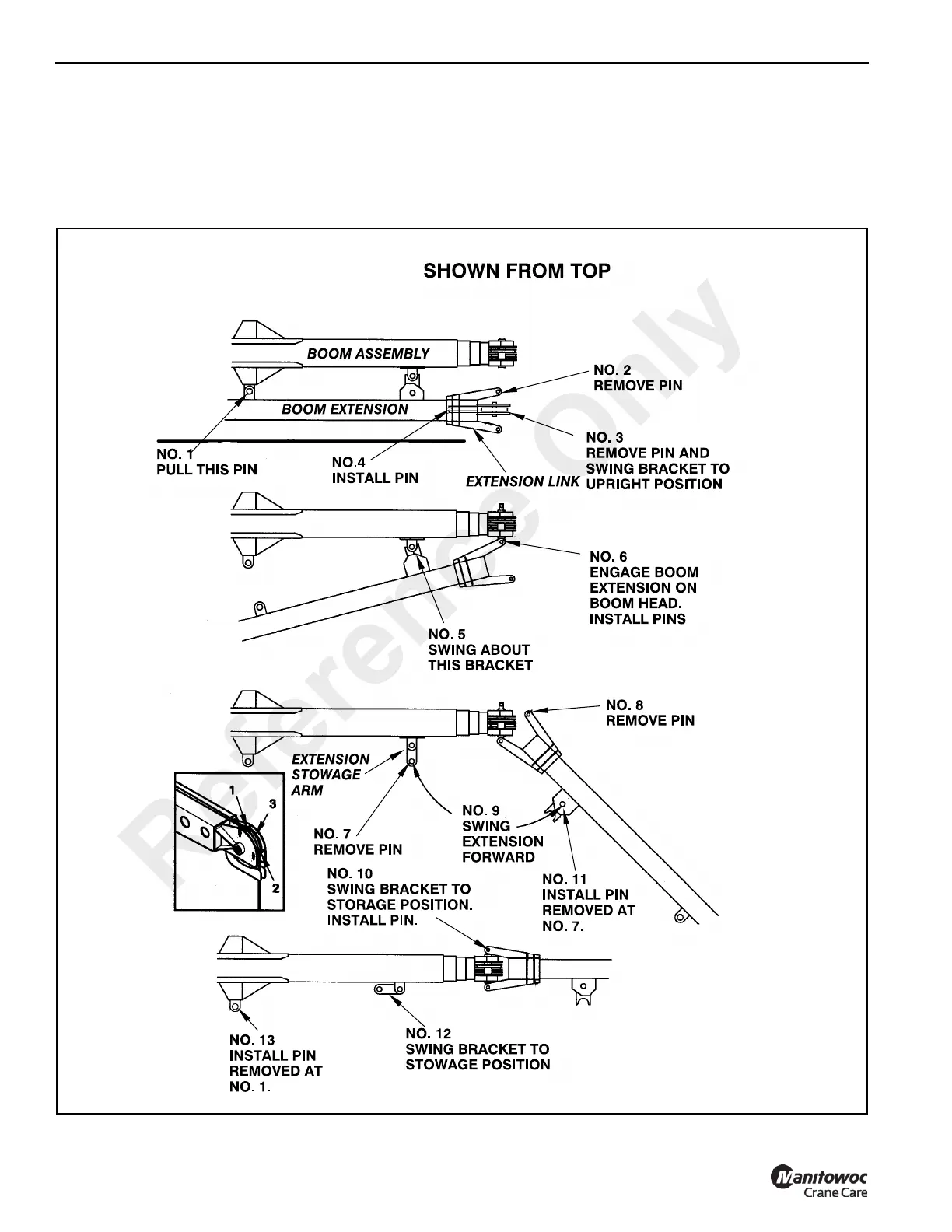

FIGURE 5-9
Reference Only
