CD5515-2/YB5515-2 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3

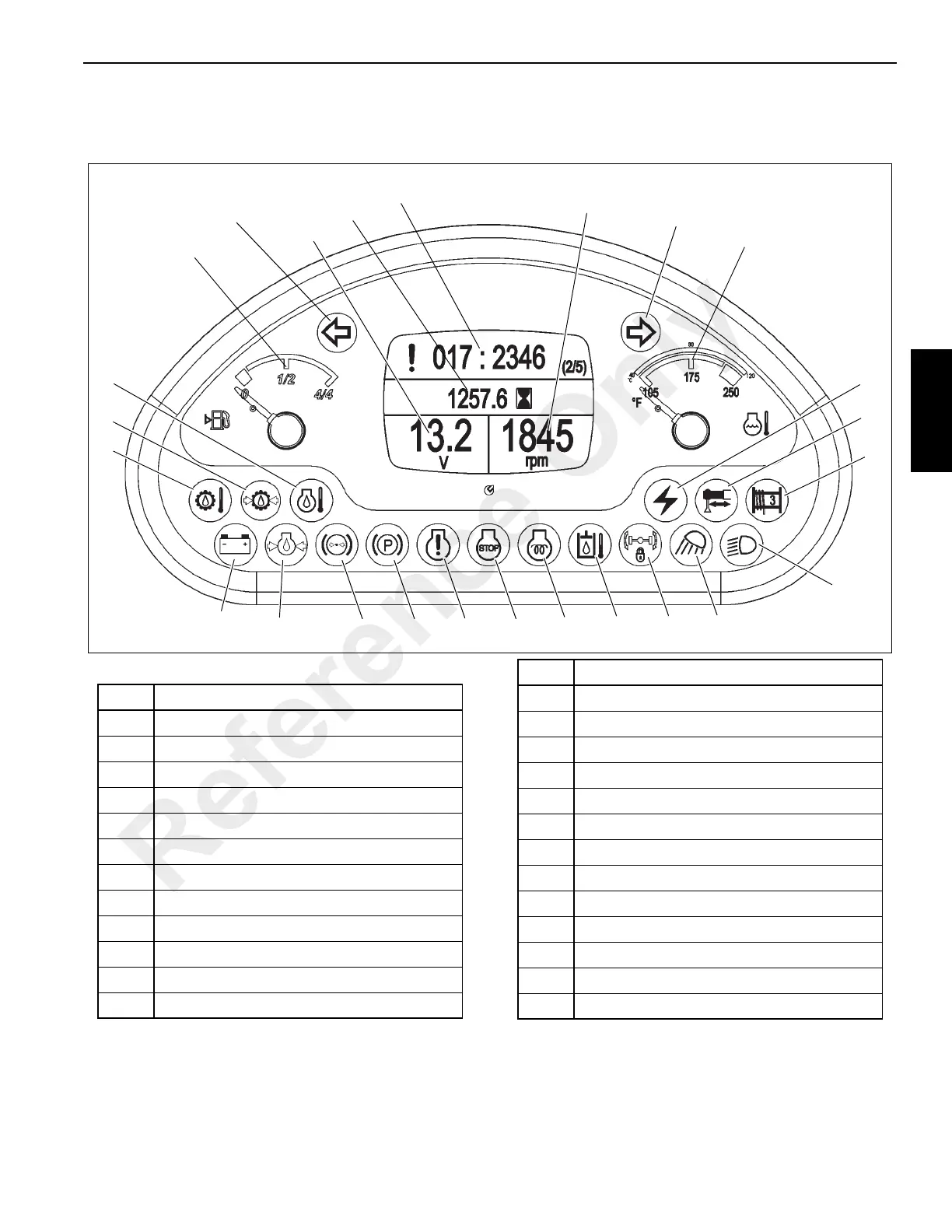

Indicator and Gauge Display
As a system check, the indicators will come on for two seconds when the ignition switch is turned to the RUN position.
(Figure 3-4) Item Numbers
FIGURE 3-4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Item Description
1
Fuel Gauge
2 Left Turn Signal
3 Voltmeter
4 Hour Meter
5 Error Code
6 Tachometer
7 Right Turn Signal
8 Coolant Temperature
9 Crane Functions Enabled
10 Outrigger Monitoring Indicator
11
Third Wrap Indicator
12 Headlights Indicator
13 Work Lights Indicator
14 Axle Lockout Indicator (Not Used)
15 Hydraulic Oil High Temperature
Indicator
16 Engine Wait to Start Indicator
17 Engine Stop Indicator
18 Engine Warning Indicator
19 Parking Brake Indicator
20 Low Brake Pressure Indicator
21 Low Engine Oil Pressure Indicator
22 Low Battery Indicator
23 Transmission Oil High Temperature
24 Low Transmission Oil Pressure
Indicator
25 Not Used
