Section 2 Installation Instructions
Part Number 040001361 05/10 9
Drain Pump Option
1. Remove top cover screws and slide cover off.
Remove back panel screws and lift panel off.
2. Assemble the outlet tube and vent tube to the drain
pump.
3. Plug the drain pump’s wire assembly into the ice
machine’s wire assembly. Slide drain pump into
cavity.
4. Swap out existing Bin Drain Tube for Bin Drain Tube
packaged with drain pump.
5. Route the vent tube and outlet tube.
6. Reassemble ice machine.
NOTE: See instructions packaged with drain pump for
details.
Reversing Door Swing
1. Remove top cover from the door - Use a putty knife
to lift the inside edge of the top door cover out and
up to disengage from the door panel. Repeat on
bottom cover.
2. Release door from top hinge - Remove two allen
screws from the top of the door and lift door panel off
of two bottom allen screws.
NOTE: There are nylon washers for each bottom allen
screw and one plastic bushing for the outside screw, do
not misplace these parts they help the door swing
smoothly.
3. Remove plastic covers from top and bottom hinges
and remove screws securing the hinges. Reinstall
screws in holes after hinges are removed.
4. Remove existing screws from cabinet to reinstall
hinges on opposite side.
5. Install top and bottom hinges in new location.
6. Install the bottom allen screws, nylon washers, and
plastic screw cover (to the outside screw).
7. Before installing the door, there is another plastic
bushing for the top outside allen screw, remove from
top of the door and reinstall on opposite side.
8. Place door on the two bottom screws.
9. Secure top of door with allen screws removed in
step 2.
10. Reinstall top and bottom covers on door. Insert front
pins first then snap into place.
11. Reverse door handle - Loosen 3 screws from inside
door panel until the handle disengages. Flip door
handle 180 degrees and tighten screws.
Disconnect power to ice machine before proceeding.
Upon activation, be sure to check all connections for
water leakage.

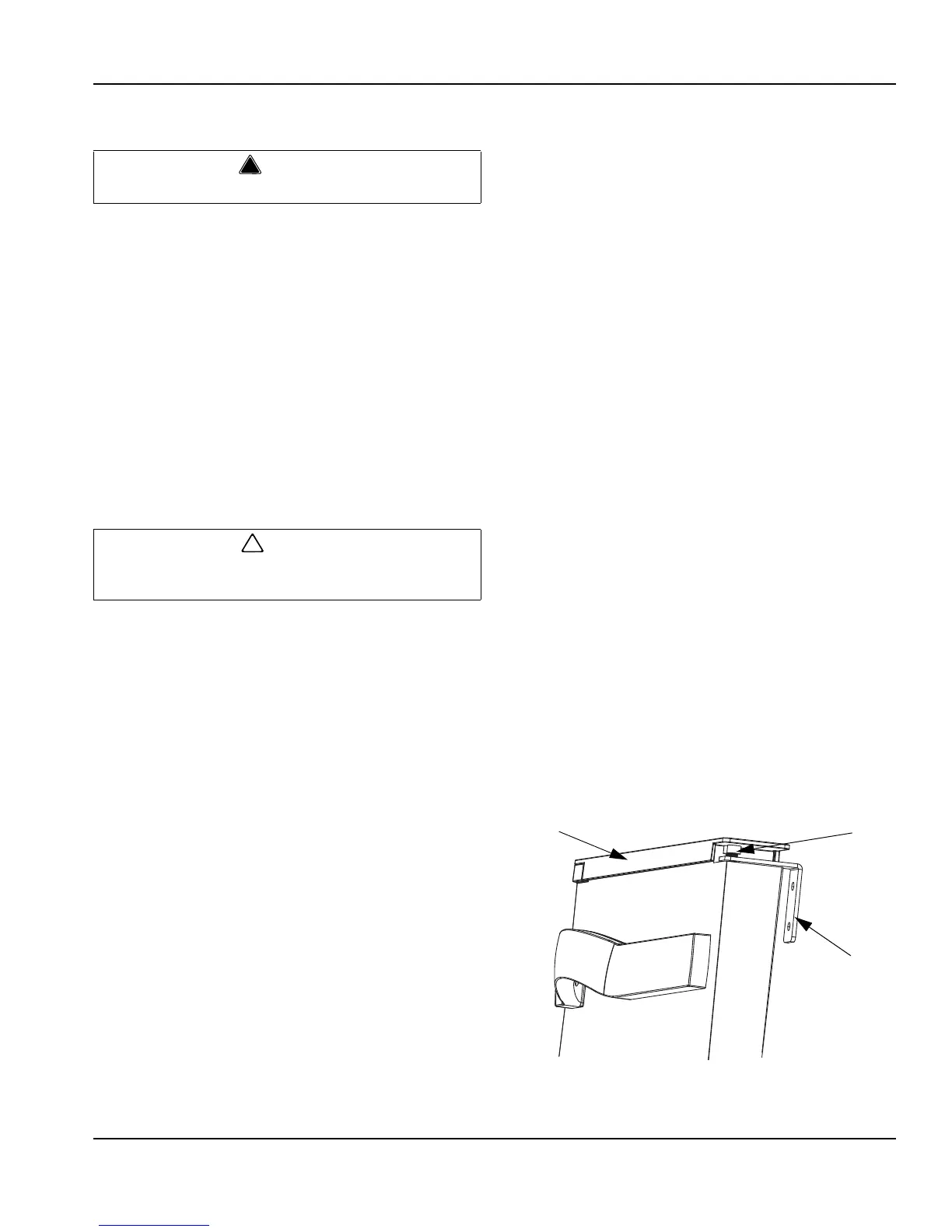

Remove 2
Allen Screws
Remove Top
Cover
Remove Plastic
Covers and
Hinges
To Next Page
