Manitowoc SM50 series User Manual

218 Part Number 80-01111-9 7/10
QM20

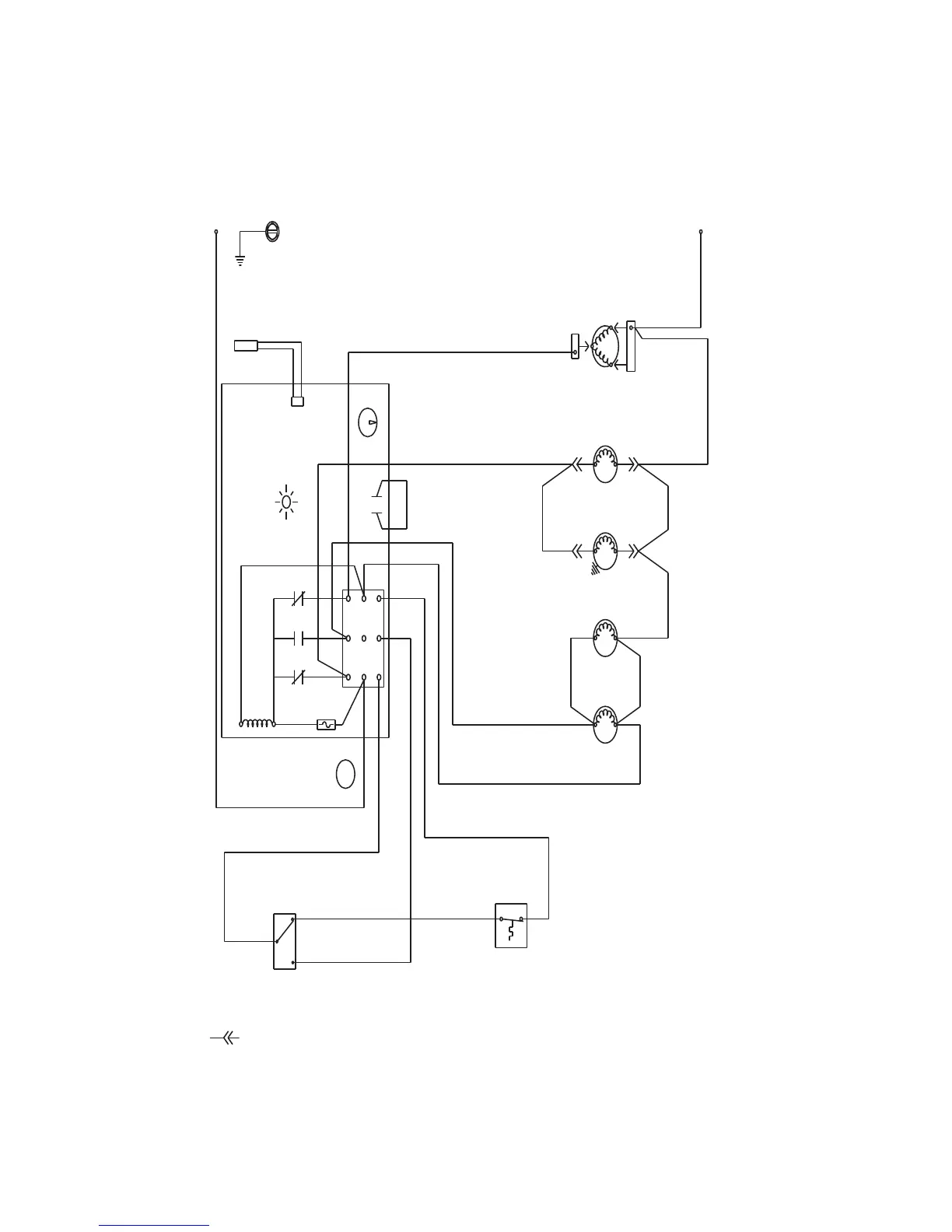

THERMISTOR
CONTROL
BOARD
LIGHT
ICE THICKNESS
ADJUSTMENT
DIAL
COMPRESSOR
FAN MOTOR
(AIR COOLED ONLY)
WATER
PUMP
HOT GAS
SOLENOID
WATER FILL
SOLENOID
SV1774
STARTING
DEVICE
TOGGLE SWITCH
WASH
BIN THERMOSTAT
ON
OFF
FUSE
TRANS.
CAUTION: DISCONNECT POWER BEFORE WORKING ON
ELECTRICAL CIRCUITRY.
NOTE: DIAGRAM SHOWN DURING THE FREEZE CYCLE.
SEE SERIAL PLATE FOR VOLTAGE.
( ) - WIRE NUMBER DESIGNATION
(IS MARKED AT EACH END OF WIRE)
L1
(3)
(9)
C
R
S
OVERLOAD
PROTECTOR
L2 (N)
(23)
(22)
(21)
(13)
(6)
(2)
(1)
1
(8)
(7)
(12)
(4)
2
3
- FEMALE/MALE CONNECTOR
(20)
(24)
(14)
A
