26 Part Number 80-01111-9 7/10
SM50/QM20/QM30
After moving the ice machine into the installation
location, it must be leveled for proper operation.
Follow these steps to level the ice machine:
1. Use a level to check the levelness of the ice
machine from front to back and from side to side.
2. If the ice machine is not level, adjust the leveling
glides or legs on each corner of the base of the
ice machine as necessary.
3. Check the levelness of the ice machine after each
adjustment.
4. Repeat steps 2 and 3 until the ice machine is level
from front to back and from side to side.

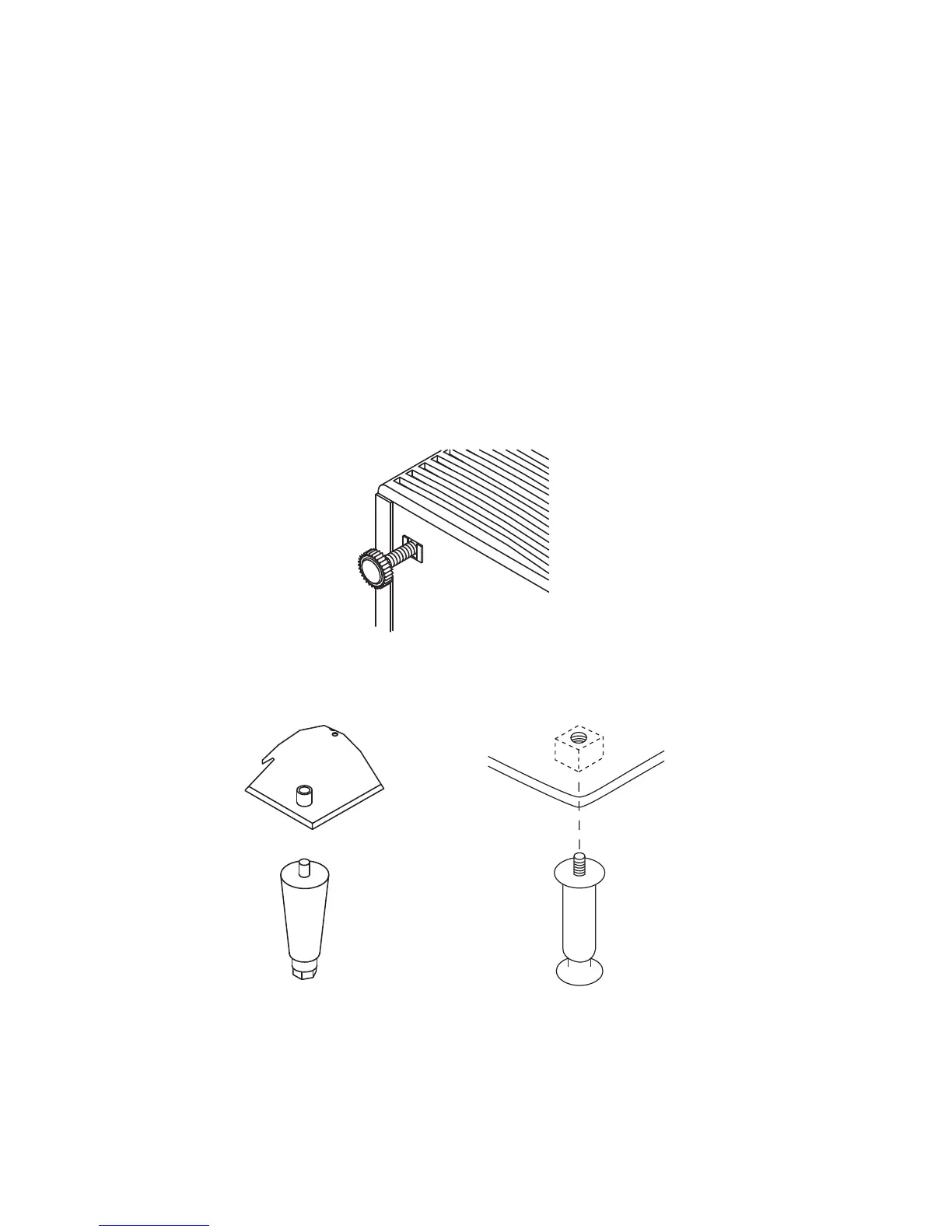

Levelers
Legs
