Q130 Models

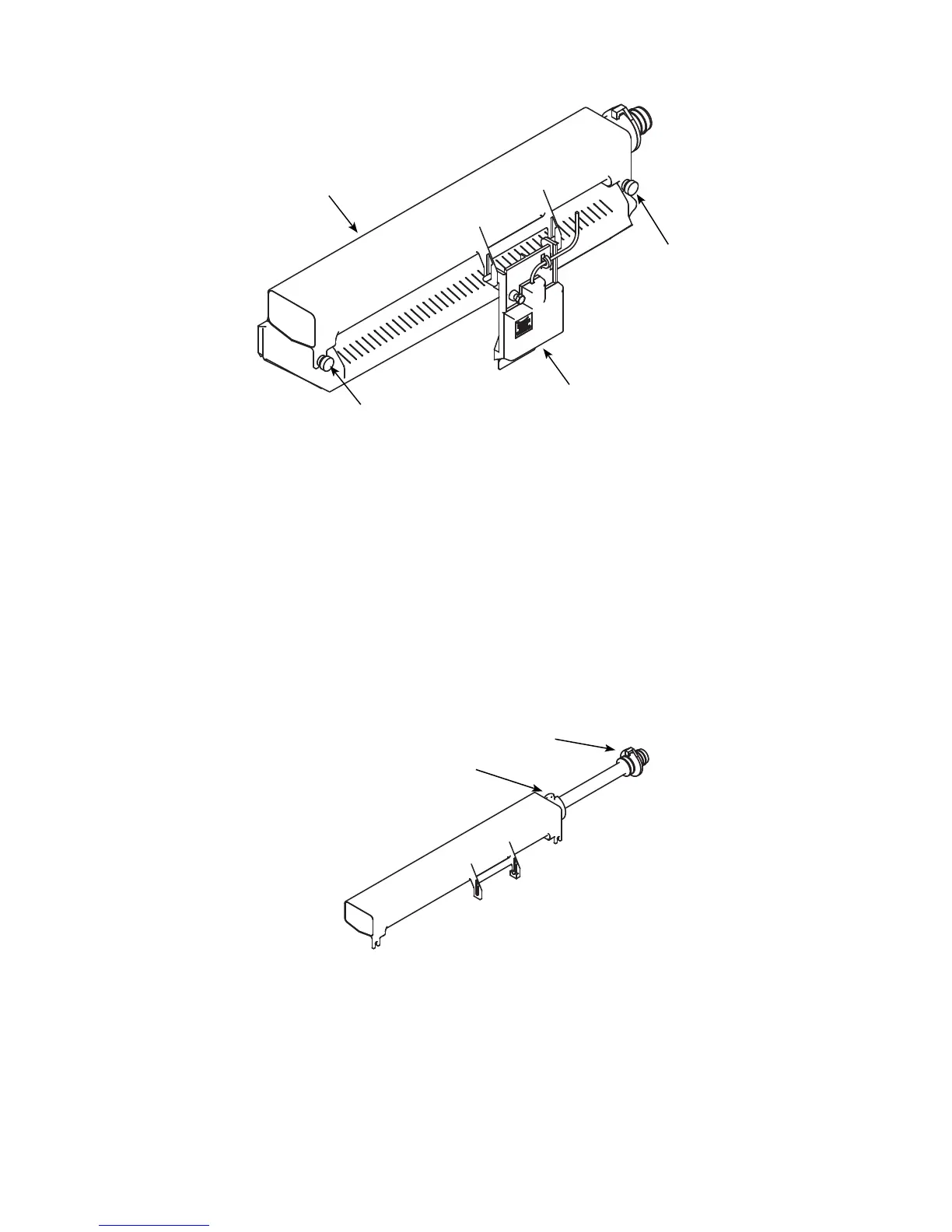

Q130 Water Distribution Tube Removal
• Loosen the two thumbscrews, which secure
the distribution tube.
• Lift the distribution tube up off the
thumbscrews.
Disassembly
• Twist the barbed end until the tab lines up with
the keyway.
• Pull the inner tube end outward.
Q130 Water Distribution Tube Disassembly
