Manitowoc SMS050A Technician's Handbook

226 Part Number 80-01111-9 7/10
Q270
Danfoss Compressor
CONTROL
BOARD
BIN
SWITCH
LIGHT
(GREEN)
ICE THICKNESS
PROBE
FAN MOTOR
(AIR COOLED ONLY)
COMPRESSOR
HOT GAS
SOLENOID
WATER PUMP
START
CAPACITOR
TOGGLE SWITCH
WASH
BIN SWITCH
ON
OFF
FUSE
TRANS.

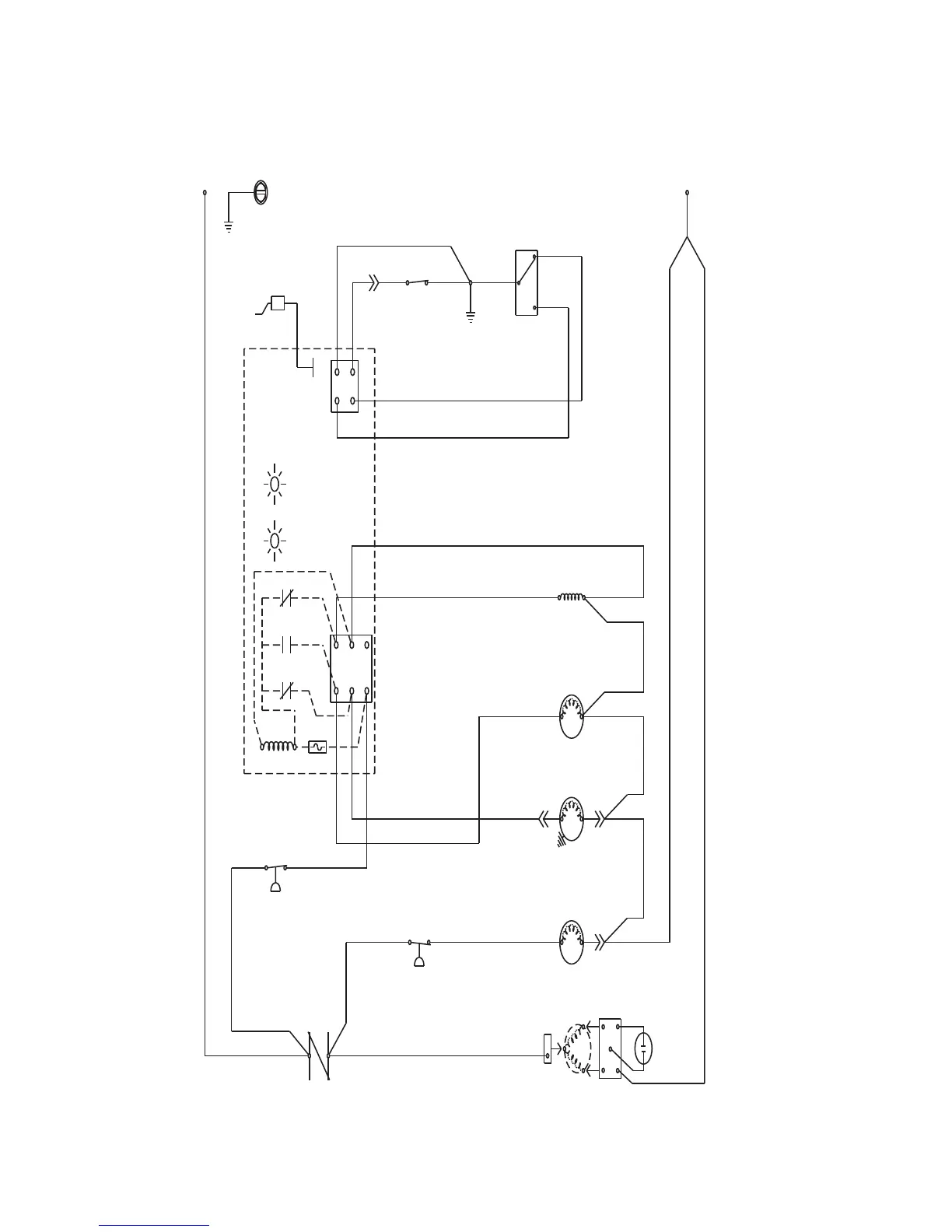

NOTE: DIAGRAM SHOWN DURING THE FREEZE CYCLE.
SEE SERIAL PLATE FOR VOLTAGE
HARVEST
LIGHT
(RED)
RELAY
RELAY
CONTACTS
FAN CYCLE
CONTROL
HIGH PRES.
CUTOUT
L1
L2 (N)
(22)
(24)
(23)
(20)
(21)
(10)
(11)
(2)
(3)
(7)
(5)
(4)
(14)
(15)
(13)
(12)
R
C
S
(8)
(9)
(6)
1
2
3
11
10
13
3
