Manitowoc SMS050A Technician's Handbook

Part Number 80-01111-9 7/10 25
Leveling the Ice Machine
QM45/Q130/Q170/Q210/Q270
1. Screw the leveling legs onto the bottom of the ice
machine.
2. Screw the foot of each leg in as far as possible.
3. Move the ice machine into its final position.
4. Level the ice machine to ensure that the siphon
system functions correctly. Use a level on top of
the ice machine. Turn each foot as necessary to
level the ice machine from front to back and side
to side.
NOTE: An optional 2-1/2" (6.35 cm) caster assembly is
available for use in place of the legs on the Q130,
Q170, Q210, Q270, or QM45. Installation instructions
are supplied with the casters.
Leg Installation
!
Caution
The leg s must be screwe d in tightly to preven t
them from bending.

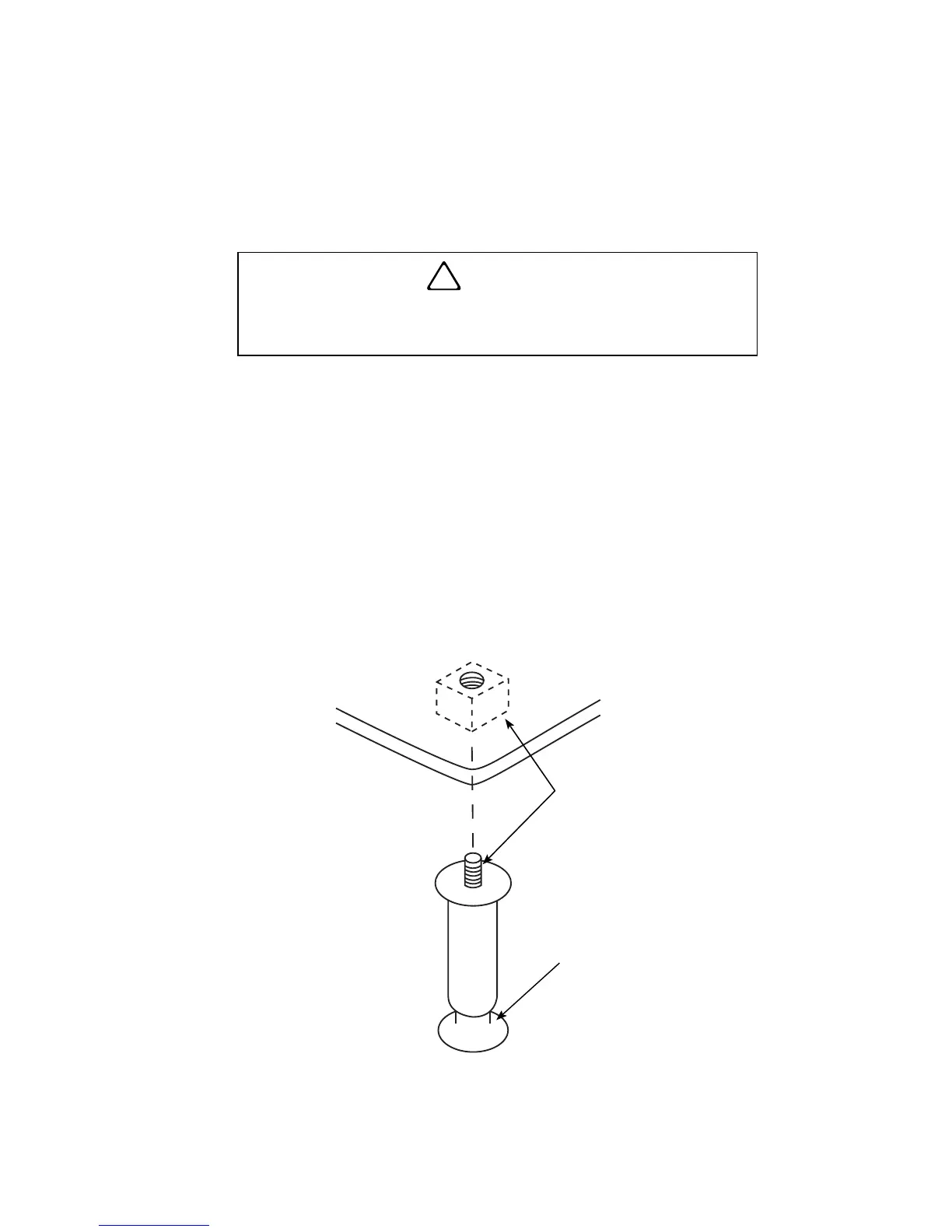

THREAD
LEVELING LEG
INTO BASE OF
CABINET
THREAD “FOOT”
IN AS FAR AS
POSSIBLE
SV1606
