Bin Removal
1. Disconnect power.
2. Remove all ice from bin.
3. Remove air filter and louver from lower front of
machine.
4. Loosen top screw, remove bottom screw and slide
plates to release.
5. Disconnect clamp and remove bin drain.
6. Remove control box panel.
7. Remove communication cable from control board.
8. Remove rear cover.
9. Slide bin forward to remove.
NOTE: When reinstalling the bin, ensure the bin seal is
in place and is not pinched/folded as it mates to the
cabinet. A watertight seal is required to prevent future
condensation or water leakage from entering the ice
machine base.
DISCONNECT COMMUNICATION CABLE
DISCONNECT CLAMP
AND REMOVE BIN DRAIN

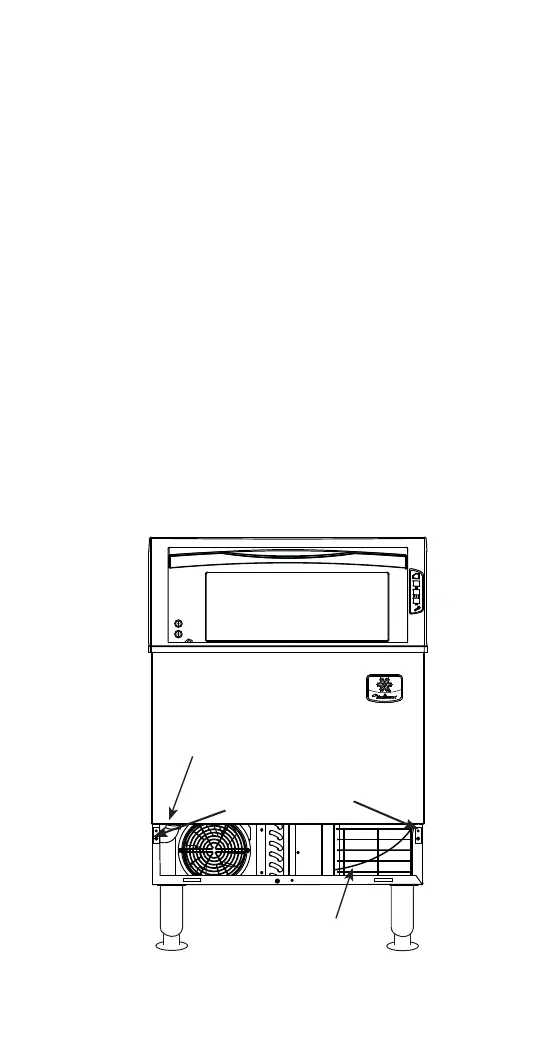

SCREWS AND PLATES
