Part Number 000014797 Rev02 05/18 57

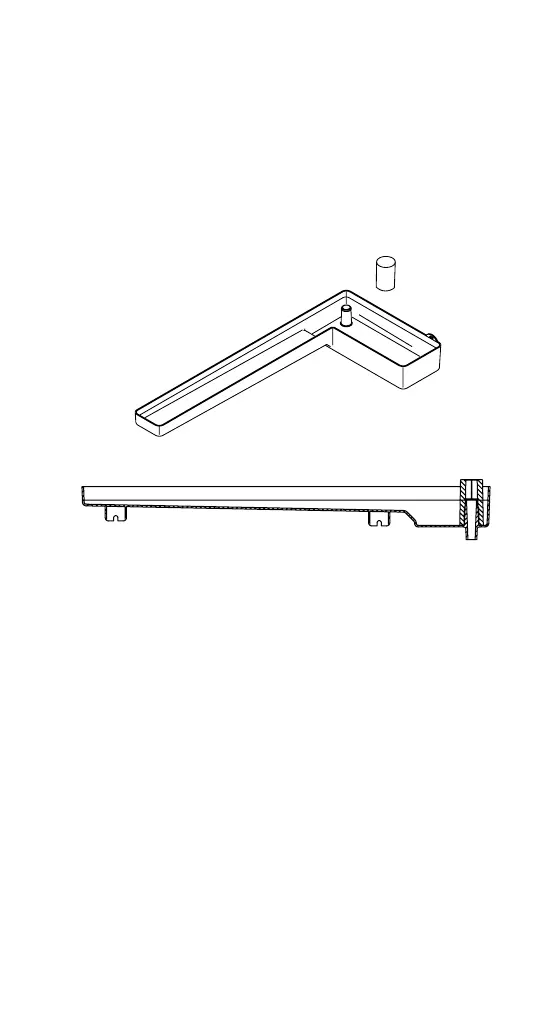

G. Remove the Water Trough

• Apply downward pressure on the siphon tube and

remove from the bottom of the water trough.

• Remove the upper thumbscrew.

• While supporting the water trough remove the two

thumbscrews from beneath the water trough.

• Remove the water trough from the bin area.

Default Chapter3
