COMPONENT REMOVAL

Top Cover

For easiest access to the evaporator compartment, the

top cover can be removed.

1. Remove two screws on the rear of the ice

machine.

2. Slide top cover back to disengage the three pins

from the front panel

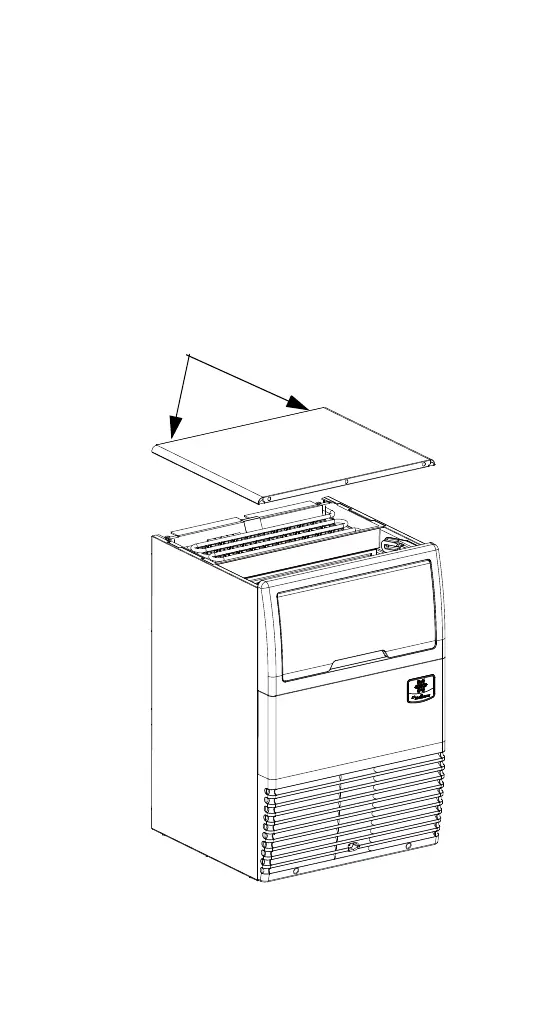

Remove 2 Screws and

Slide Cover Back
