Part Number: 040003628 Rev. 01 01/14/18 3-3
Section 3 Operation

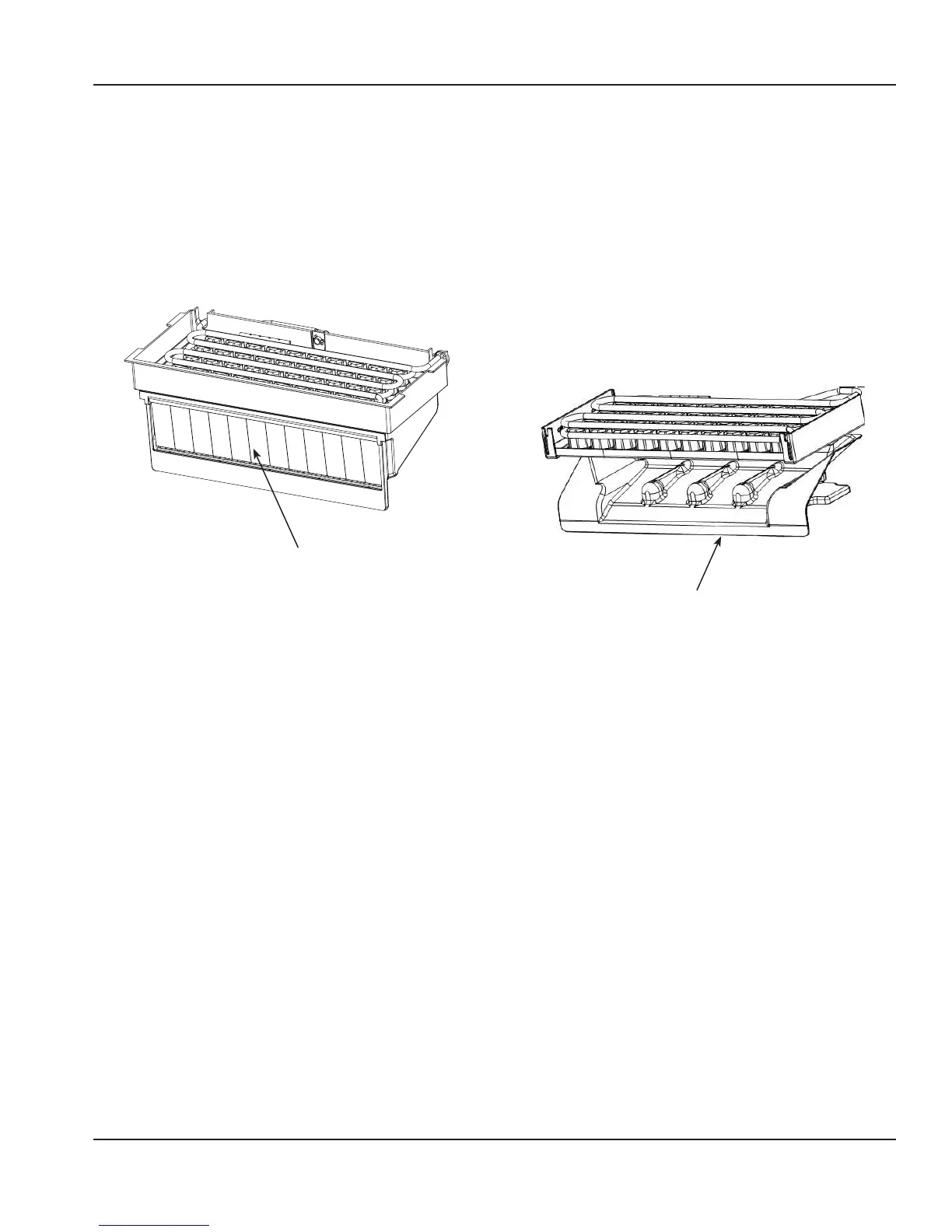

WATER CURTAIN
The water curtain is designed to keep the spraying
water from escaping the evaporator compartment.
Removal of the bin door is not required, but enhances
access.
1. Grasp the ice curtain and lift up.
2. To re-install into ice machine, pivot the water curtain
and pull down into position. Make sure tabs are
secure in grooves.
Water Curtain
ICE CHUTE
The ice chute is positioned over the spray nozzles and
allows the ice to easily fall into the bin. It must be firmly
positioned over the spray bar assembly, with the front
edge inside the water trough or the spray nozzles will
not be aligned with the spray holes, and spray water will
fall into bin.
1. Grab protruding spray holes on one end and lift up.
2. Pivot ice chute and remove.
3. To re-install ice chute, grasp protruding spray holes
and position over spray bar assembly. Make sure
rear supports are over spray bar assembly, and
front edge is inside of water trough.
Ice Chute
