56 Part Number 000014797 Rev02 05/18

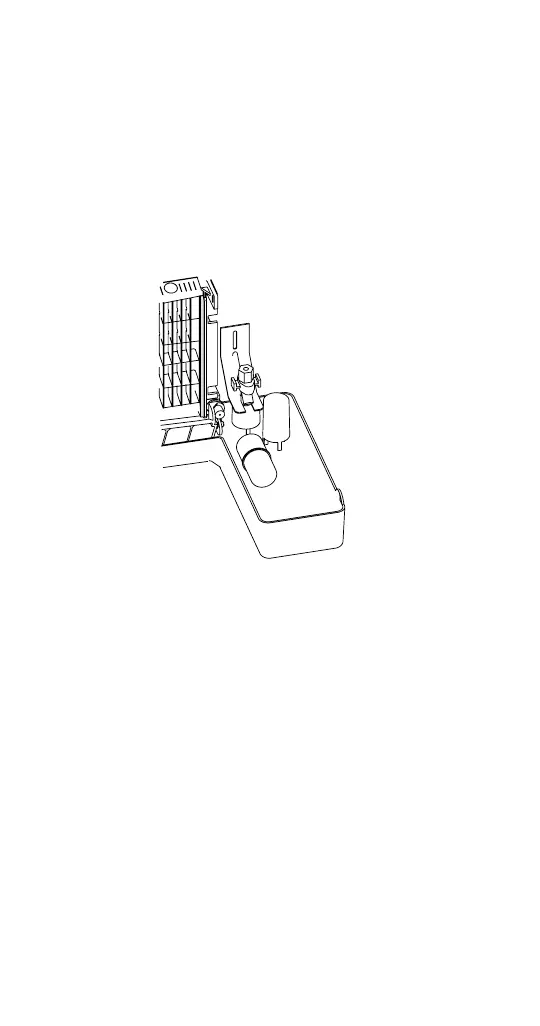

F. Remove the Float Valve
• Turn the splash shield counterclockwise one or two
turns.
• Pull the float valve forward and off the mounting
bracket.
• Disconnect the water inlet tube from the float valve at
the compression fitting.
• Remove the cap and filter screen for cleaning.
To Next Page
