MANN+HUMMEL ProVent 100 - ProVent 200 Installation

MANN + HUMMEL ProVent
MANN+HUMMEL Industrial Filters 10
• Ensure sufficient strength of the screw and nut
material.
• Connect the hoses to the inlet, outlet and oil
return fittings (make sure a sufficient length of
hose is pushed on) and secure with hose
clamps (see Chap.4.2 and 4.3).
• Connect the oil return hose (and non-return
valve if necessary) to the oil sump.
• To ensure proper functioning, the
ProVent should be protected against dirt
(mount splash guards if necessary).
ProVent 200
The housing can (prior to installation) be turned
in the holder in 30° steps around the
longitudinal axis.
This enables the position "Inlet and outlet fitting
to flange" to be flexibly adjusted to the
installation situation.
• Remove the retaining clip (1) upward from the
groove and turn the holder into the desired
position.
• Press the holder together somewhat in the
desired position and engage the retaining clip
in the groove again
• Mount the holder in the vertical position.
Recommended tightening torque for M8
screws: 10 Nm.
• Ensure sufficient strength of the screw and
nut material.
• Connect the hoses to the inlet, outlet and oil
return fittings (make sure a sufficient length of
hose is pushed on) and secure with hose
clamps (see Chap.4.2 and 4.3).
• Connect the oil return hose (and non-return
valve if necessary) to the oil sump.
• To ensure proper functioning, the ProVent
should be protected against dirt (mount
splash guards if necessary).

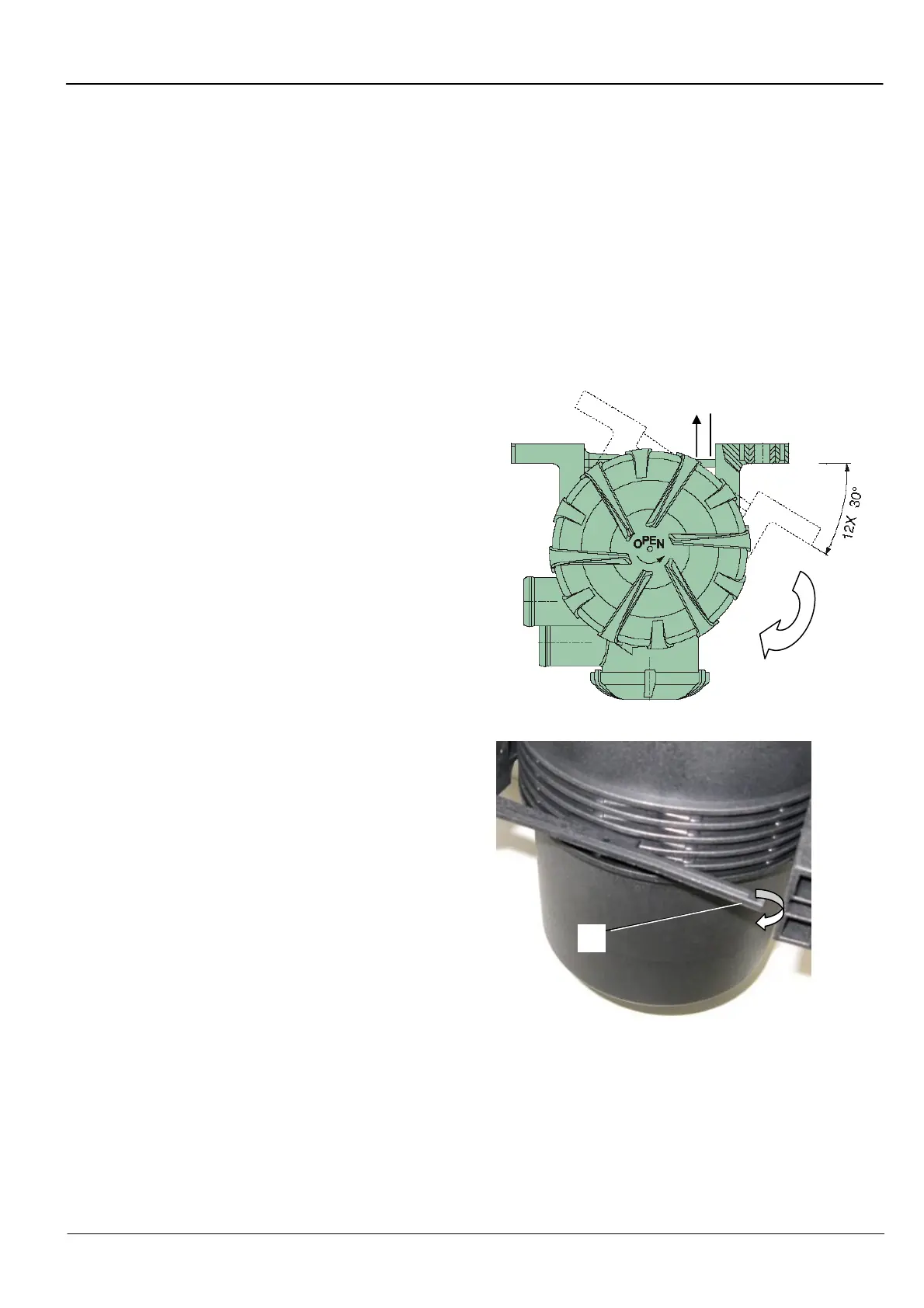

Fig. 5 Positions of outlet for ProVent 200
Fig. 6 Holder for ProVent 200
1
1
