5.3 Seal change
When changing the oil separator elements, the
seals in the lid and the housing should also be
checked for damage and correct seating
regularly. Replace the seals if necessary. Seal
sets are available as service kits.
• Service Kit for ProVent 100: LC 7001 (HE*)
• Service Kit for ProVent 150: LC 7201 X (HE)
• Service Kit for ProVent 200: LC 5001 X (HE)
LC 5002 X (UE**)
• Service Kit for ProVent 400: LC 10 001 X (HE)
• Service Kit for ProVent 800: LC 16 001X (HE)
*HE = High-Efficient Medium
**UE = Ultra-High-Efficient Medium
New separator elements are supplied with new
seals.
Lightly coat the sealing rings (1) with oil before
installation and lay them in the corresponding
groove (2).

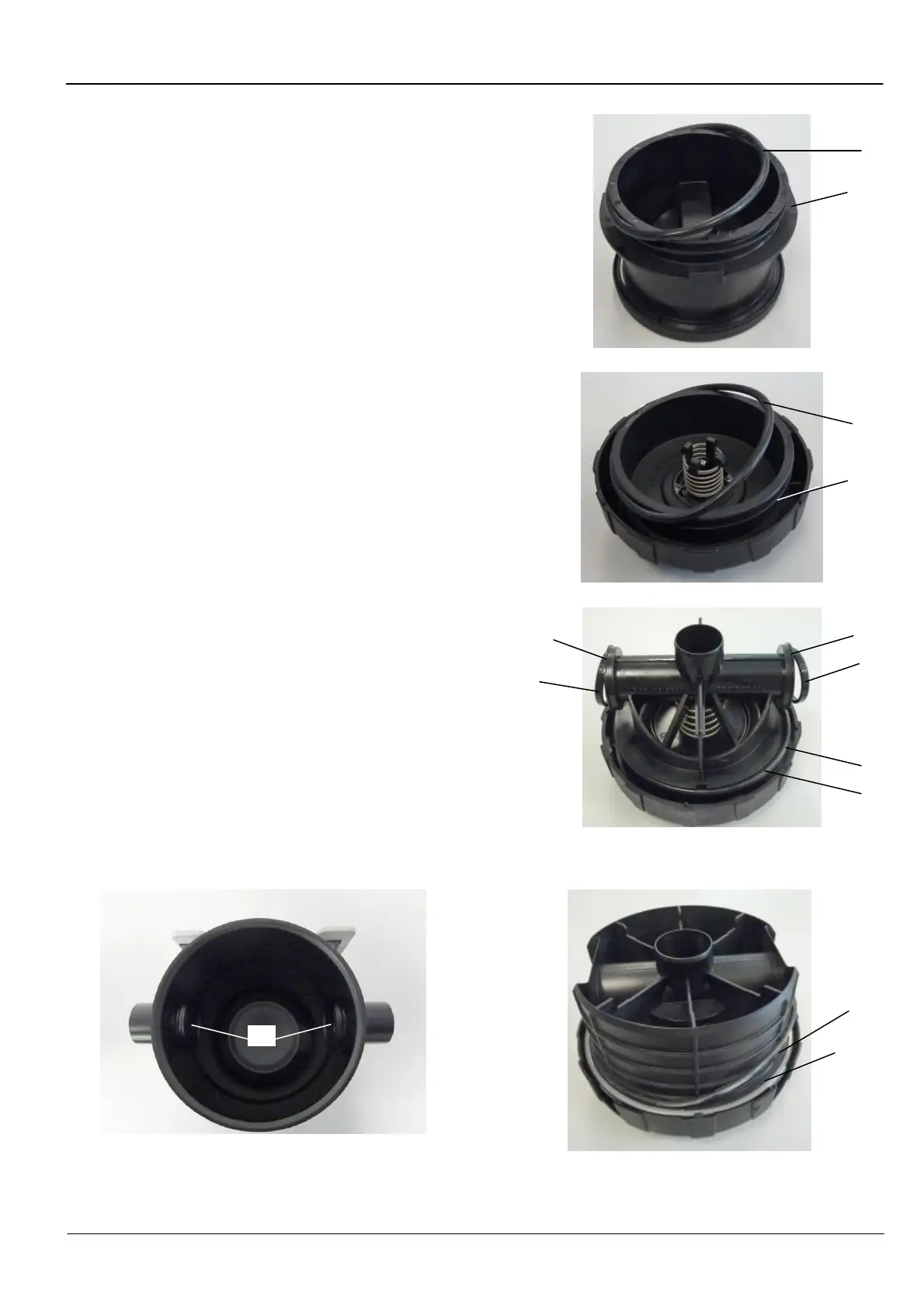

Fig. 26 Seal for lid of ProVent 150
Fig. 27 Seal for lid of ProVent 200
Fig. 28 Seal for lid, inlet and outlet of ProVent
400
Fig. 29 Seals for inlet and outlet of ProVent 800
Fig. 30 Seal for lid of ProVent 800
