ProVent 800
The housing can be turned around the
longitudinal axis before installing it in the
holder.
This enables inlet and outlet fittings to be
adjusted to the installation situation.
•
Loosen the screw (1)
•
Turn the holder (2) into the desired position
and tighten the screw with the nut. Tightening
torque: 9 Nm
•
Mount the holder in the vertical position.
•
Ensure sufficient strength of the screw and
nut material.
•
Connect the hoses to the inlet (3), outlet (4)
and oil return fittings (5) (make sure a
sufficient length of hose is pushed on) and
secure with hose clamps.
•
Connect the oil return hose (and non-return
valve if necessary) to the oil sump.
•
To ensure proper functioning, the ProVent
should be protected against dirt (mount
splash guards if necessary).

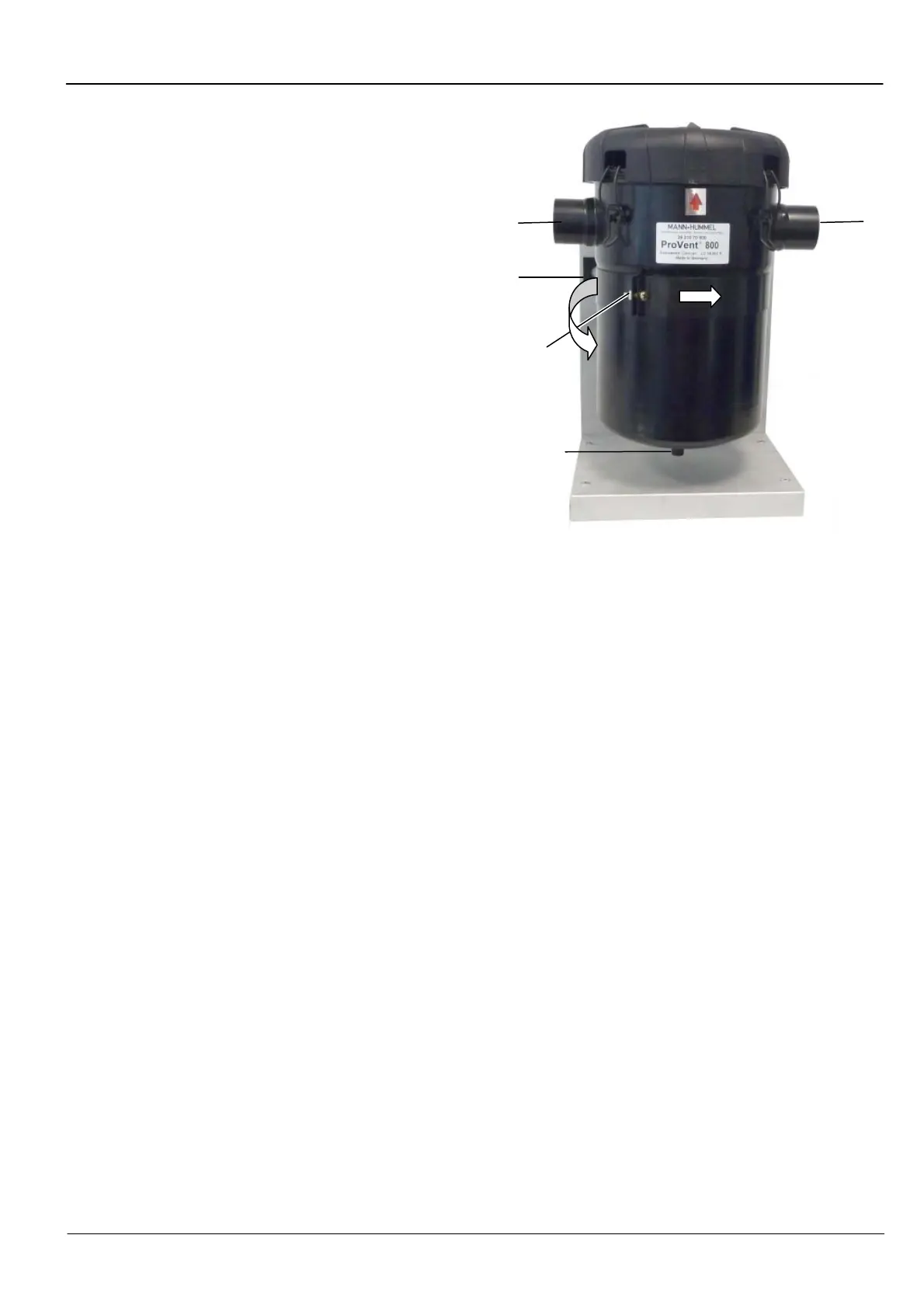

Fig. 9 Adjusting holder of ProVent 800
1
2
34
5
