MANN+HUMMEL ProVent 100 - Page 18

MANN + HUMMEL ProVent
MANN+HUMMEL Industrial Filters 18
• If necessary, position a suitable aid at the
locking points at the edge of the lid and
carefully lift the lid. This loosens the lid.

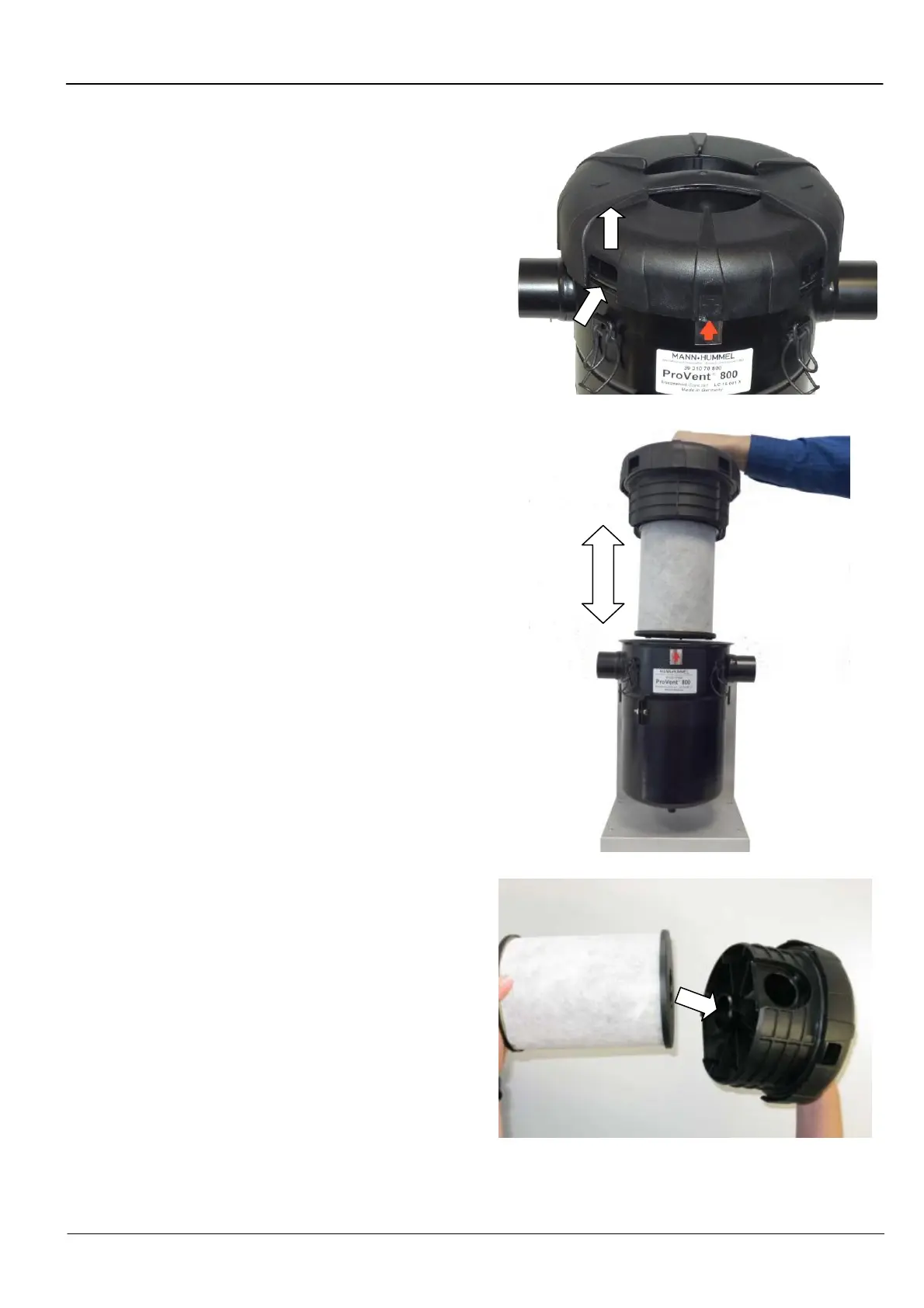

Fig. 22 Removing lid of ProVent 800
• Remove the lid with the oil separator element.
Fig. 23 Removing oil separator of ProVent 800
• Pull the oil separator element off the lid fitting
(see Fig. 24)
Dispose of the old oil separator element
properly.
• Mount the new replacement element on the
lid fitting.
Fig. 24 Fitting oil separator of ProVent 800
