Control Panel
Control Panel Button Function
VOL+ : Volume up.
VOL- : Volume down.
CH+: TV channel up.
CH- : TV channel down.
MENU : Press to select the main menu.
SOURCE : Select the input signal.
POWER : Turn the TV on or o.

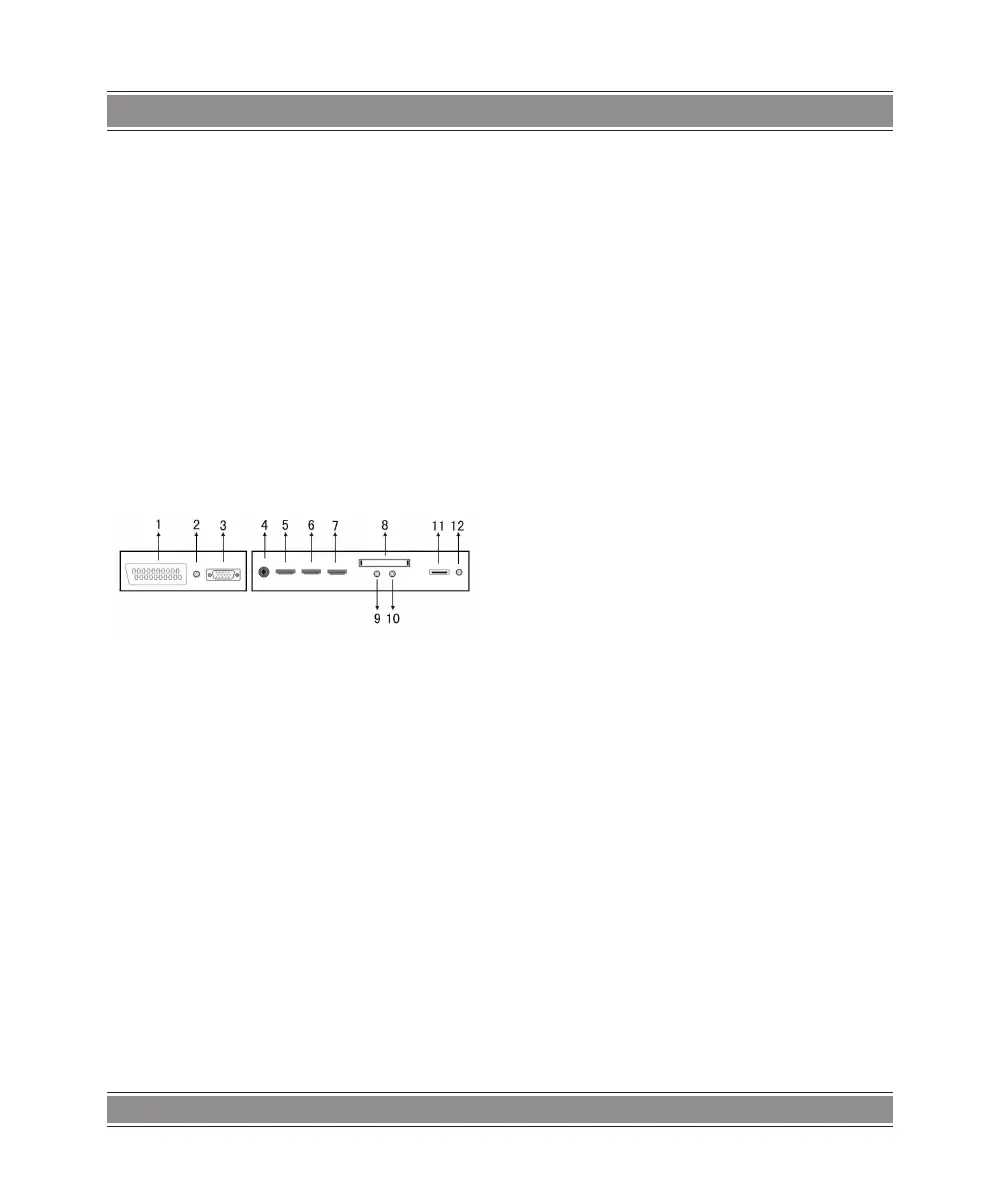

TV Terminal Connections
1. SCART input terminal.
2. PC AUDIO terminal.
3. VGA input terminal.
4. TV antenna.
5. HDMI 1 input terminal.
6. HDMI 2 input terminal.
7. HD M I 3 i n p u t t e r m in a l .
8. CI slot
9. Mini-AV input terminal.
10. Mini-YPBPR input terminal.
11. U SB i n p u t t e r m i na l .
12. HEADPH ONE o utput term inal .
Optional Conguration
as below
Connect the USB to the USB jack on the set.
NOTE
– It is only 500 mA MAX of DC current output when you con-
nect with USB jack
– To ensure the Mobile HD works well, you should use other
power supply for the Mobile HD. And do not use the USB jack
in the same time.
– It supports Mobile HD by connecting with USB jack (must
more than 2 GB). The partitions of the Mobile HD can’t be more
than 4 partitions. The max partition is 2TB. It supports FAT/FAT32
document. The max FAT document is 4GB and the max FAT32
document is 2TB.
