Mantis
®

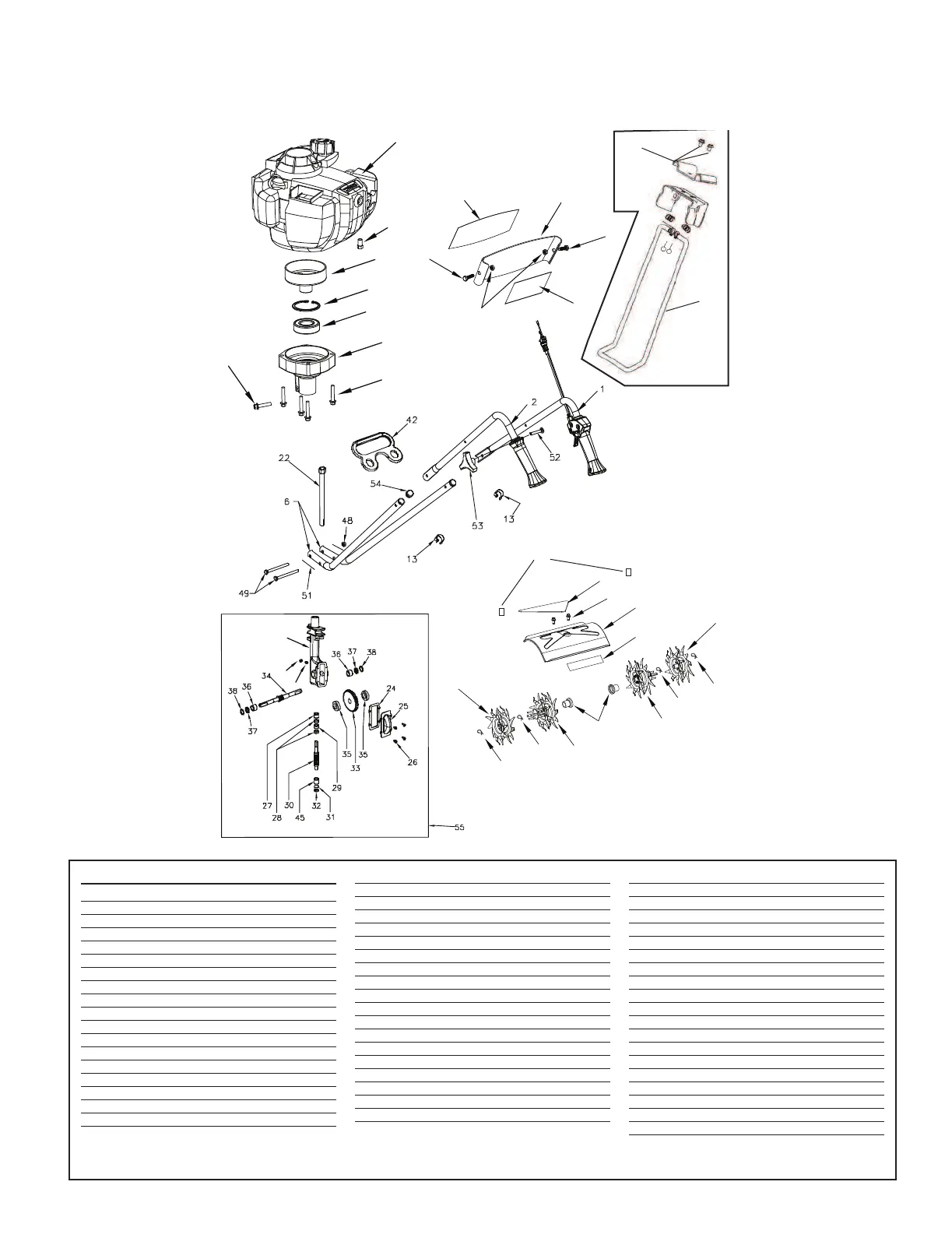

XP Tiller Assembly
ITEM QTY. PART # DESCRIPTION / REMARKS
1 1 400257 TRIGGER HANDLE ASSM. RH
2 1 400255 HANDLE ASSM. LH
6 2 400224 LOWER HANDLE -FOLD DOWN
7 1 400633 LABEL, BRACE FRONT
8 1 400306 HANDLE BRACE
12 1 910502 10-32 X 3/4 - FLANGED BOLT
13 2 478 THROTTLE CLIP
20 1 400312 FENDER GUARD
21 1 400916 ENGINE ASSY – 35CC 4 STROKE
22* 1 468 DRIVE SHAFT
23 1 400301 WORM GEAR HOUSING
24 1 436 GASKET
25 1 437A HOUSING COVER
26 4 651 RD. HD. SELF TAPPING SCREW
27 1 423 ROLLER BEARING
28 2 425 WORM BEARING RACE
29 1 424 WORM THRUST BEARING
30 1 422 WORM SHAFT
31 1 426 WORM DISK
ITEM QTY. PART # DESCRIPTION / REMARKS
32 1 428 RETAINING RING
33 1 429 WORM GEAR
34 1 431 TINE SHAFT
35 2 430 WORM GEAR THRUST WASHER
36 2 432 WORM GEAR BEARING
37 2 434 BEARING SEAL
38 2 435 BEARING SEAL RETAINER
39 1 400328 TINE ASSY - OUTER RIGHT
40 1 400327 TINE ASSY - OUTER LEFT
41 4 418-1 TINE RETAINING HAIR PIN
42 1 400315 CARRYING HANDLE
43 1 400307 ENGINE ADAPTER
44 1 400631 TINE LABEL
45 1 458 ROLLER BEARING
46 1 4058 MANTIS LABEL
47 2 410 CAP SCREW 1/4-20 X 1" LG.
48 4 972 LOCK NUT 1/4 - 20
49 2 470 1/4-20 X 3” BOLT
50 2 M9452 BOLT 1/4 - 20 X 1/2" LG.
ITEM QTY. PART # DESCRIPTION / REMARKS
51 2 377 HANDLE CLAMP
52 2 400509 BOLT
53 2 400510 KNOB
54 2 400230 PLUG
55 1 400302 TRANSMISSION ASSEMBLY
56 1 400132 BEARING
57 1 400308 CLUTCH DRUM
60 4 400529 M6 X 33MM - FLANGED BOLT
61 1 400524 RETAINING RING
62 1 400310 THROTTLE STOP HONDA 35CC
63 1 400634 LABEL WARNING
64 1 400313 DUST CAP FOR GREASE FITTING
65 1 400300 GREASE FITTING
66 1 400330 TINE ASSY. INNER RIGHT
67 1 400329 TINE ASSY. INNER LEFT
68 2 4092 WEED RECYCLER
69# 1 410158 KICKSTAND LEG ASSY.
70# 1 410113 HARDWARE FOR KICKSTAND
71 2 400635 LABEL, XP TINE WARNING
* ALSO IN KEY #55 – 400302
# IF APPLICABLE
71
401764 XP Tiller-Cultivator_manual 5/18/10 10:51 AM Page 18
