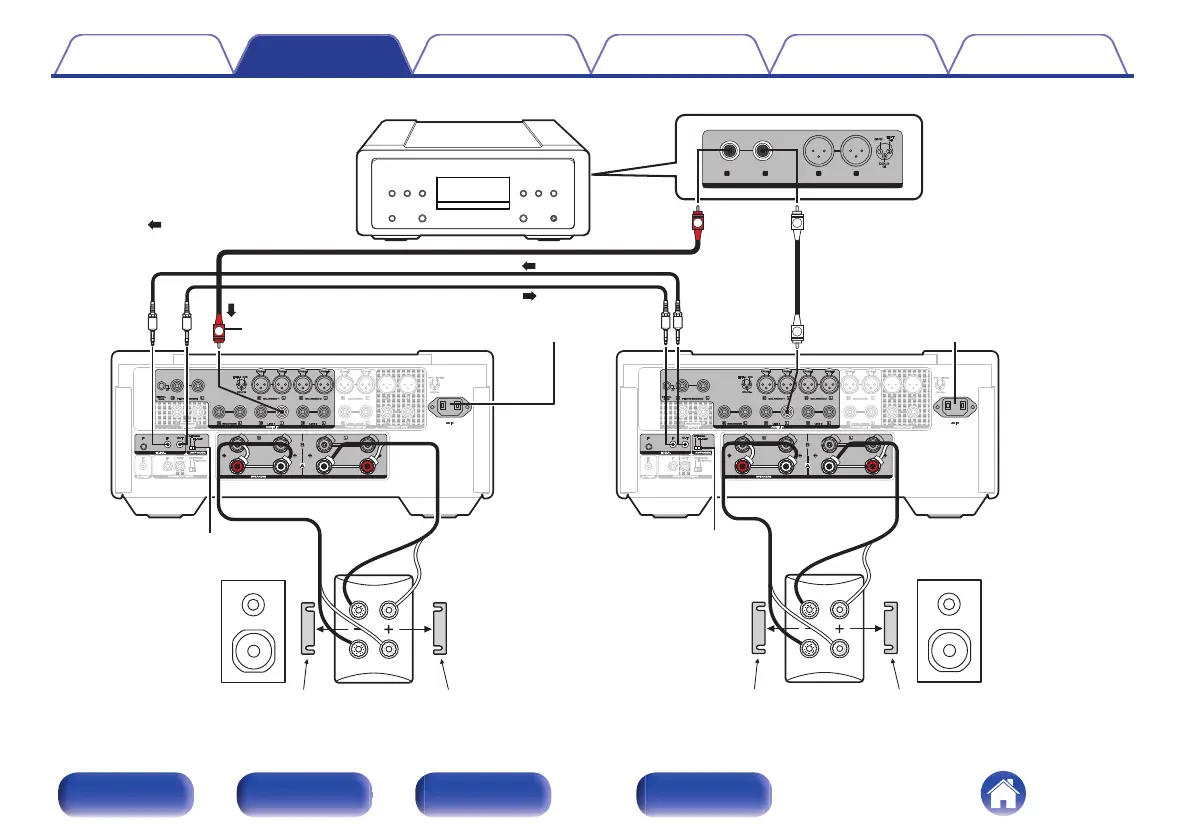

Marantz 10 - Page 30

MF / HF
LF
MF / HF
LF
BALANCED
BALANCED
LINE OUT
LINE OUT
R L R L
UNBALANCED
UNBALANCED
L
L
R
R
Super Audio CD player, etc.
: Signal flow
Set to “BI-AMP” Set to “BI-AMP”
Set MODEL 10 for
R channel to “Member 1”
To power outletTo power outlet
Remove shorting bar
Remove shorting bar
Remove shorting barRemove shorting bar
R channel
speaker
L channel
speaker
When in bi-amp mode,
connect to the L channel
input connector.
Set MODEL 10 for
L channel to “Leader”
