Marantz 3600 - Power Consumption Verification

EQUIPMENT ITEM
Distortion Analyzer
(capable of measuring
0.02% THD)
AC Voltmeter (capable of
measuring 30 mV (noise)
accurately)
Audio Oscillator residual
distortion less than 0.02%
MANUFACTURER AND MODEL NO.
OR EQUIVALENT
Sound Technology Model 1700A or Hewlett
Packard Mode! 331A or 333A
Measure total harmonic distor-
tion of preamp
Hewlett Packard Model 400F Measure preamp output voltage
Sound Technology Model 1700A or Weston Audio signal source
Model CVO-100P
Oscilloscope Tektronix Model 503; Data Modei 555 Waveform analysis and trouble-
shooting
Variable Autotransformer
(0-140 V AC) ©
AC Wattmeter 0-150 W
C.
VTVM
Line Voltmeter 0-150 V
AC
AC Power Box
(optional)
Control
Phono Shorting Plug (4)
Noise Filter (20 Hz to 20
KHz, 12 dB per octave
roll off, less than 3 micro-
volts residual noise input)
RCA Senior Volt-Ohm-yst Model 555; Simp-
son 312
Voltage and resistance measure-
ments
Controls A.C. line voltage to
preamp
Powerstat Model 116B
Monitor preamp power consump-
tion
Simpson Model. 1379 (Catalog No. 10970)
Monitor A.C.
preamp
Simpson Model 1359 (Catalog No. 10320) line voltage to
Monitor line voltage and power
consumption
Fabricated in accordance with Figure 4.
Short preamp input to eliminate
noise pickup
Phono shorting plug with 600 ohm resistor across
center pin and shell
Commercial grade. Measure noise.

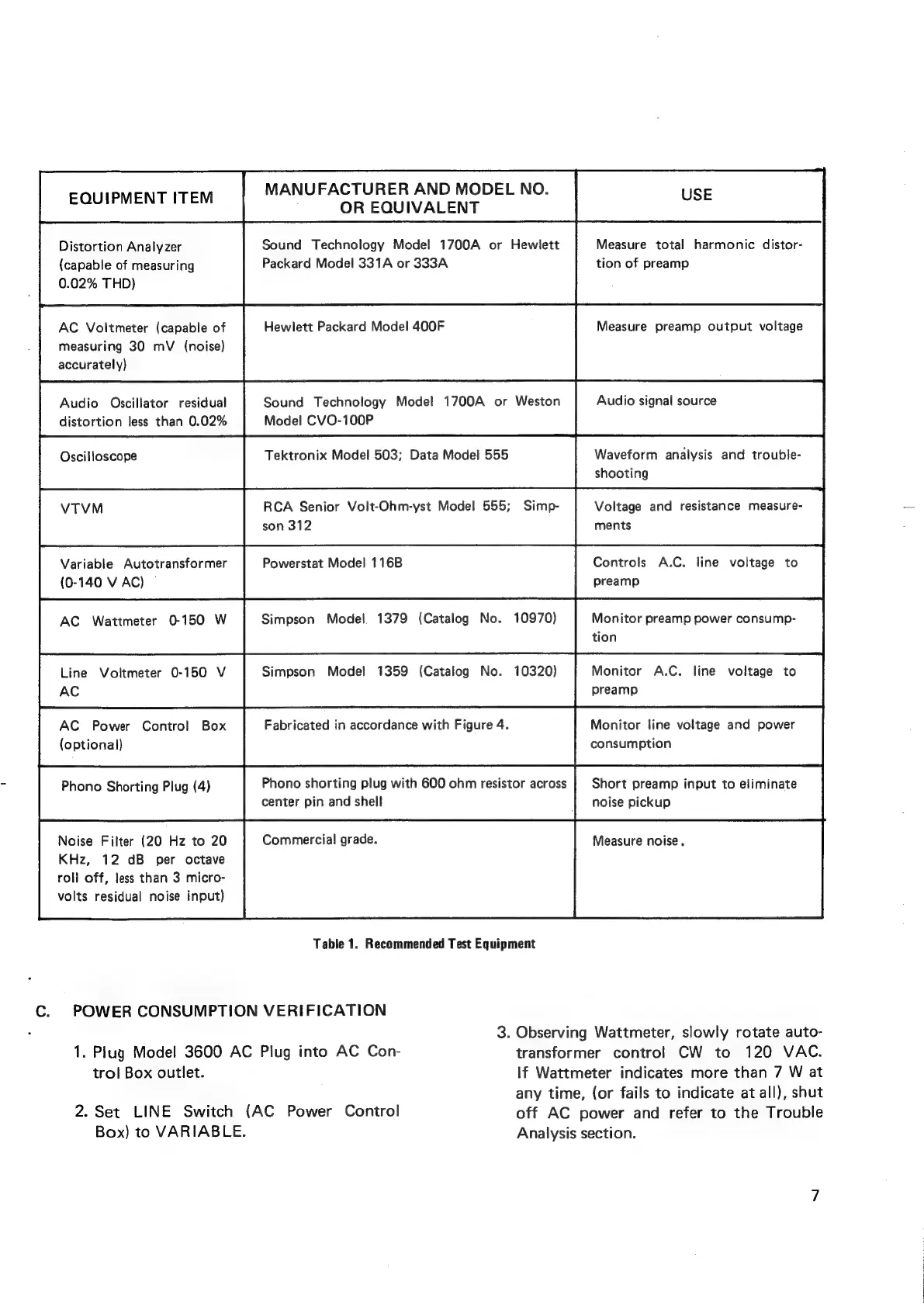

Table 1. Recommended Test Equipment
POWER CONSUMPTION VERIFICATION
1. Plug Model 3600 AC Plug into AC Con-
trol Box outlet.
2. Set LINE Switch (AC Power Control
Box) to VARIABLE.
3. Observing Wattmeter, slowly rotate auto-
transformer control CW to 120 VAC.
If Wattmeter indicates more than 7 W at
any time, (or fails to indicate at all), shut
off AC power and refer to the Trouble
Analysis section.
