A

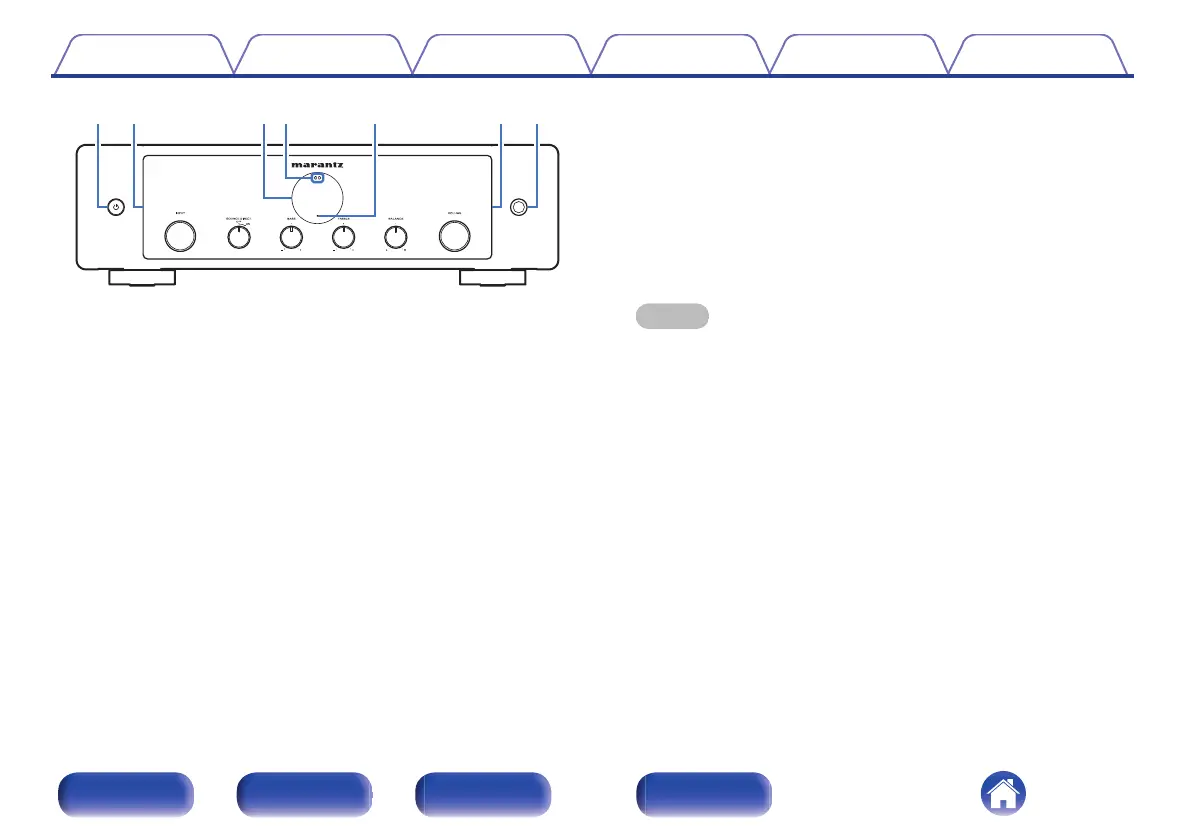

Power on/standby button (X)
This turns the power on/off (standby). (v p. 34)
B
Lighting LED
This illuminates when the power is turned on. Brightness can be
changed and lighting turned off. (v p. 69)
C
Display
This displays various pieces of information.
D
Remote control sensor
This receives signals from the remote control unit. (v p. 7)
E
Protection circuit indicator
This blinks when the protection circuit has operated. (v p. 105)
F
Headphones jack
Used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers and from the PRE OUT
connectors.
NOTE
0
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
