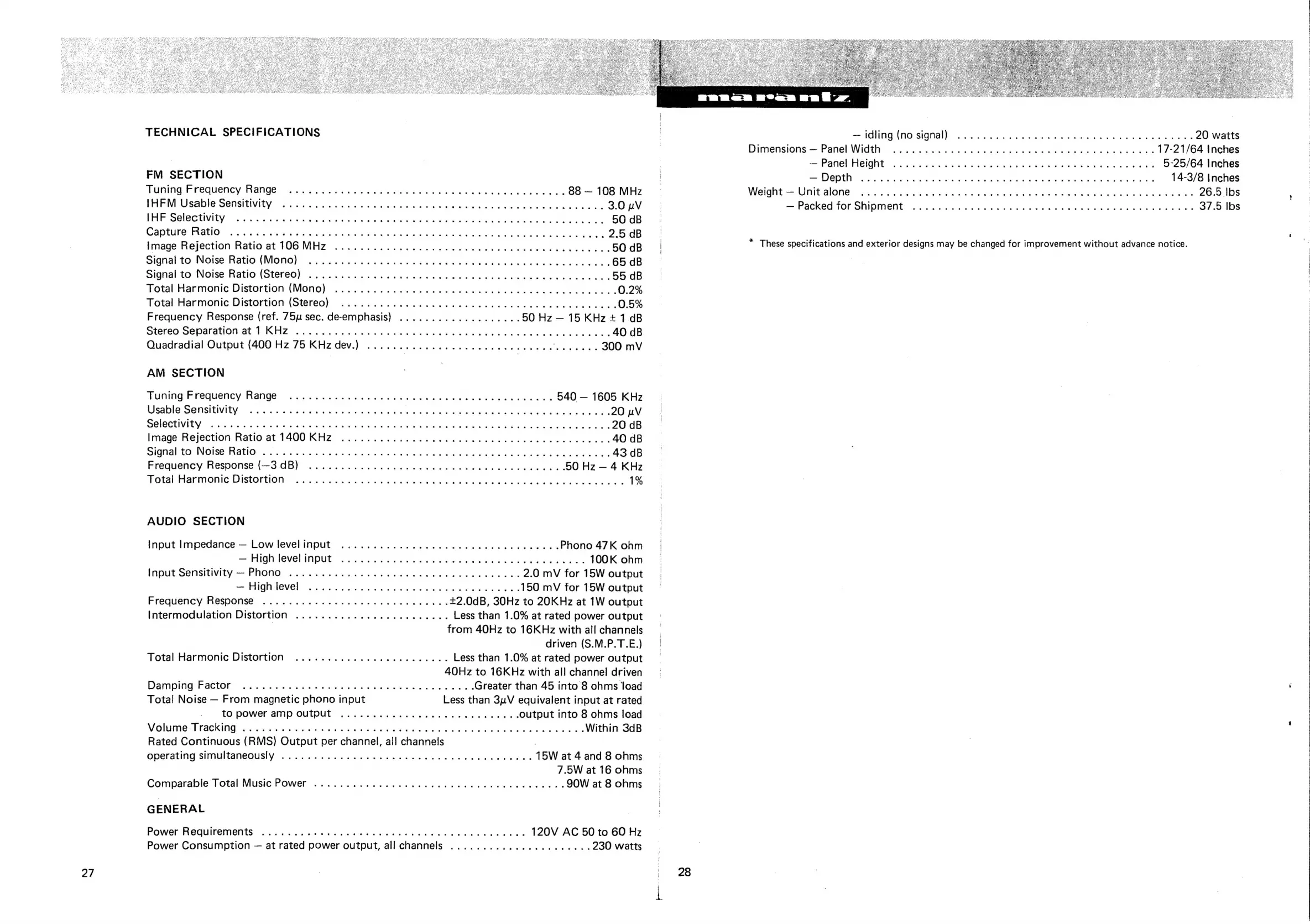

TECHNICAL SPECIFICATIONS
FM SECTION
Tuning Frequency Range ......... ccc cc ce ee cece eee nent astaens 88 — 108 MHz
(HEM USaDIG SENSIIIVITY. s4244<scac nko we Gawd ade Gvhe G ire eis bud Be nea e weds 3.0 pV
NFP OCIECHIVICY: 5.5 ace Pak ey Bee an autek wold Bcc eae EF Sisk Wh 0 ae es ee Eater Ea eek 50 dB
CAaptUleRGNO: fttiebatideuweiden eed ecm ion bar etete Pe ol UN ee hens .. 2.5 dB
Image Rejection Ratio at 106 MHZ 2c. cite ed toa e VASES eee eee Se eee aid wees 50 dB
Signal to Noise Ratio (Mono) ......... 0. cece eee eee e etna een eney 65 dB
signal to. Noise Ratio (Stereo): 4.35. ssnb itt waged cae bea eRe be bree eet ek ba dead 55 dB
Total Harmonic Distortion (Mono) .......... 0.0. cee eee ee ne ee eee ee enneens 0.2%
Total Harmonic Distortion (Stereo) 2.1... .. ce ee eee cence ene enuneus 0.5%
Frequency Response (ref. 75u sec. de-emphasis) ................000. 50 Hz — 15 KHz + 1 dB
Stereo: Separation at | KAZ ce dade G44 ann ba oS ald we 2 Re ee hob Bo Pe ae ae Ea 40 dB
Quadradial Output (400 Hz 75 KHz dev.) ........ 0.0... ccc eee eee eae eee 300 mV
AM SECTION
Tuning Frequency Range ......... 0c ccc cece eee cee eee een ten anes 540 — 1605 KHz
Usable Sensitivity ........... 0.2. cee eee a Guin tee toe aa Gates Sera Mane aeea a 20 pV
DEIPCUIVILY. 26ctocls. bes re Win ood Soa aes Oates ag ec Re SO Cl Ra ae ye ES eee wen ae aes 20 dB
Image Rejection Ratio at 1400 KHZ ........ 0... cee eee eee ees 40 dB
SiGhal. 10-'INGISG RGN O) 35 s.s5.0n Bn eet ete eee eh SUS a Wb i ae ee Ba OS 43 dB
Frequency Response (-3 dB) ......... 0.00 cece eee eee eee nnn eeeenes 50 Hz — 4 KHz
Total: Harmonic-DistOrtion: 4:0: secdaee i e eeees hb bo alee aedienn e Pea ba bee ed . 1%
AUDIO SECTION
Input Impedance — Low levelinput ............. 0.00.0 cee pate Bees .Phono 47K ohm
SS FIGINEVEL RADU 655 ic9s oie het Saeriw eae wieder 4 100K ohm
Input Sensitivity — Phono ....... ee en ae eee a bees cee sae ae 2.0 mV for 15W output
SIGE VOVOL! 55a ce cieriatic'8, arias a ere eats ton de woe wha wo 150 mV for 15W output
Frequency Response ........- 0c eee cece eects +2.0dB, 30Hz to 20KHz at 1W output
Intermodulation Distortion ......... 20. e cece eee eee. Less than 1.0% at rated power output
from 40Hz to 16KHz with all channels
driven (S.M.P.T.E.)
Total Harmonic Distortion ............ 0.0 e ee eaeee Less than 1.0% at rated power output
40Hz to 16KHz with all channel driven
Dampind Factor 24 2vc.udea tess bscuwe ten ope esheets d Greater than 45 into 8 ohms load
Total Noise — From magnetic phono input Less than 3uV equivalent input at rated
to power amp output ........ 0... cc ee ee ee ee ee output into 8 ohms load
VW OlWUIMEC ULACKING sc aaah aw 6 OR ee eA ee bo ee es, Co be ae eee Within 3dB
Rated Continuous (RMS) Output per channel, all channels |
OPeralinG SIMIUITANCOUSLY seach ob eee ide Skew de Posed eee 15W at 4 and 8 ohms
7.5W at 16 ohms
Comparable Total Music Power ......... 0... cc cee eee eee eee eee ee eene 9OW at 8 ohms
GENERAL
Power Requirements ........ 000 cece eee ee ee ee eee ee ee eee n anes 120V AC 50 to 60 Hz
Power Consumption — at rated power output, all channels ...............000000e 230 watts
28
= ICME (HO: SIGNI 4.45 sop us Bese bow icy awed Sees ode be 20 watts
Dimensions — Panel Width ......... 0... cece eee eee eee Sede 17-21/64 Inches
= PAMEWHEIGN: 24.2 cs eaceiw,$.b-a'a'aoslac ace are eae wale ate taeda . 5-25/64 Inches
GO Ui aut shu en we od eas ec ee oa a eee hate et Y 14-3/8 Inches
Weight — Unitalone ..... 0... cee ee 4 Siae, arcn area Beale a ate eas tee ae ee ae 26.5 Ibs
=PACKEO [OF ONIDIMENE. -s:0 46 5-4 ostetn nadine are Foto bee wend Se beens 37.5 Ibs
* These specifications and exterior designs may be changed for improvement without advance notice.
