are
A
ashe
ua
bel
vO
Aer
Rta
ect
ano
nik
anentartsin
etme
As
AALAMAAe
tdi
tes
nner
ina
he:
nabeeteoeete
i
ets

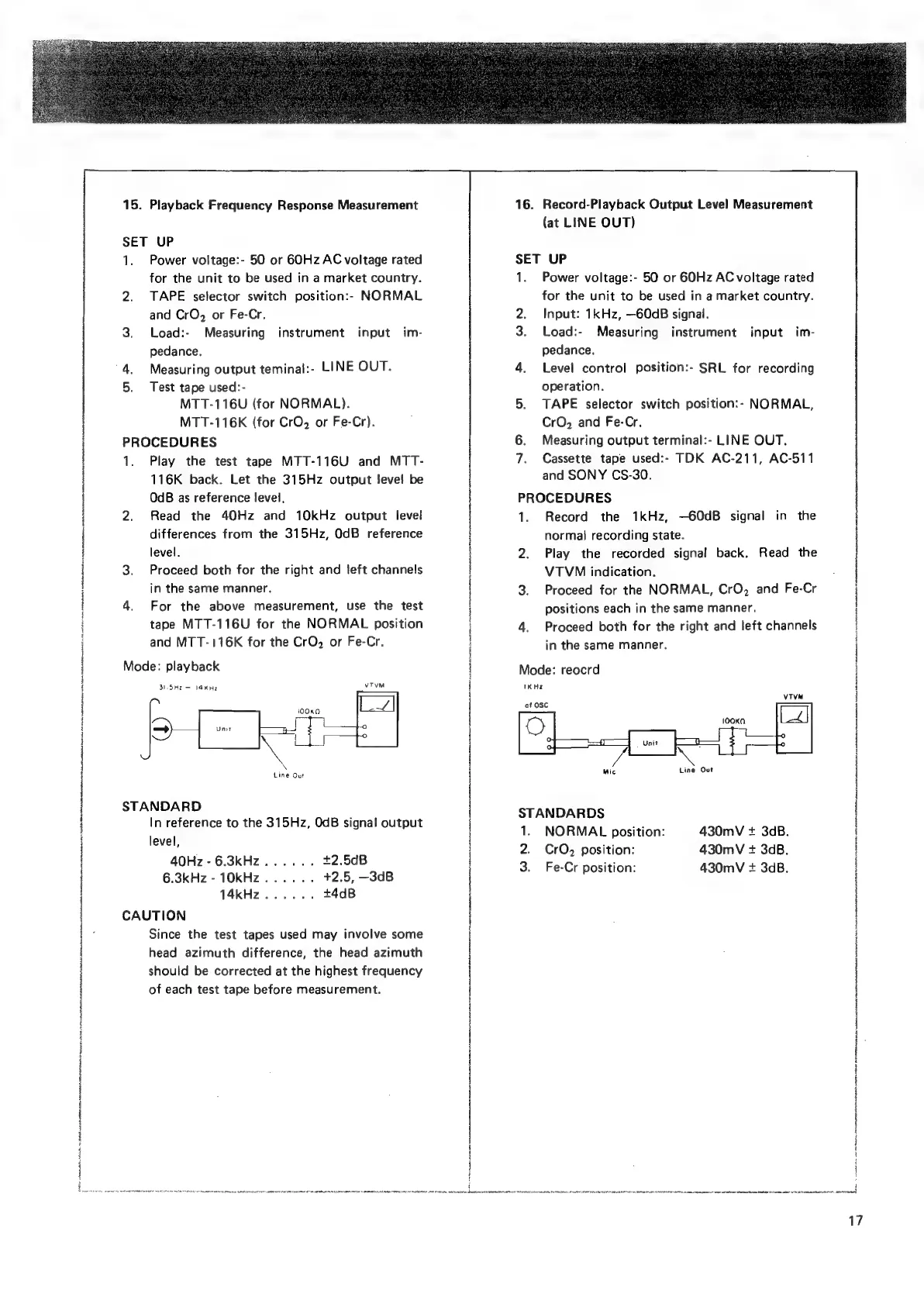

15.
Playback
Frequency
Response
Measurement
SET
UP
1.
Power
voltage:-
50
or
GOHzAC
voltage
rated
for
the
unit
to
be
used
in
a
market
country.
2.
TAPE
selector
switch
position:-
NORMAL
and
CrO,
or
Fe-Cr.
3.
Load:-
Measuring
instrument
input
im-
pedance.
4.
Measuring
output
teminal:-
LINE
OUT.
5.
Test
tape
used:-
MTT-116U
(for
NORMAL).
MTT-116K
(for
CrO,
or
Fe-Cr).
PROCEDURES
1.
Play
the
test
tape
MTT-116U
and
MTT-
116K
back.
Let
the
315Hz
output
Seve!
be
OdB
as
reference
level,
2.
Read
the
40Hz
and
10kHz
output
level
differences
from
the
315Hz,
OdB
reference
level.
3.
Proceed
both
for
the
right
and
teft
channels
in
the
same
manner.
4.
For
the
above
measurement,
use
the
test
tape
MTT-116U
for
the
NORMAL
position
and
MTT-116K
for
the
CrO,
or
Fe-Cr.
Mode:
playback
BISHr
14KH2
vTVM
=_
ums
=:
<
Line
Our
STANDARD
In
reference
to
the
315Hz,
OdB
signal
output
level,
40Hz-6.3kHz......
+2.5dB
6.3kHz-10kHz......
+2.5,
—3dB
14kHz......
+4dB
CAUTION
Since
the
test
tapes
used
may
involve
some
head
azimuth
difference,
the
head
azimuth
should
be
corrected
at
the
highest
frequency
of
each
test
tape
before
measurement.
16.
Record-Playback
Output
Level
Measurement
(at
LINE
OUT)
SET
UP
1.
Power
voltage:-
50
or
60Hz
AC
voltage
rated
for
the
unit
to
be
used
in
a
market
country.
2.
Input:
1kHz,
—60dB
signal.
3.
Load:-
Measuring
instrument
input
im-
pedance.
4.
Level
control
position:-
SRL
for
recording
operation.
5.
TAPE
selector
switch
position:-
NORMAL,
CrO,
and
Fe-Cr.
6.
Measuring
output
terminal:-
LINE
OUT.
7.
Cassette
tape
used:-
TDK
AC-211,
AC-511
and
SONY
CS-30.
PROCEDURES
1.
Record
the
1kHz,
—60dB
signal
in
the
normal
recording
state.
2.
Play
the
recorded
signal
back.
Read
the
VTVM
indication.
3.
Proceed
for
the
NORMAL,
CrO,
and
Fe-Cr
positions
each
in
the
same
manner.
4.
Proceed
both
for
the
right
and
left
channels
in
the
same
manner.
Mode:
reocrd
IKHE
VTVM
STANDARDS
1.
NORMAL
position:
430mV
+
3dB.
2.
CrO,
position:
430mV
+
3dB.
3.
Fe-Cr
position:
430mV
+
3dB.
a
eae
RAL
MINA
Cadena
enn
ne
LAME
ee
ON NL
nh
ve
aren
CeN
ne
me
nme
inl
aE
ACOs
saith
dbeamntenteAbnrLurmitt
Semorina
tuff
neatmeiielineasIRmvE-
etn
mn
