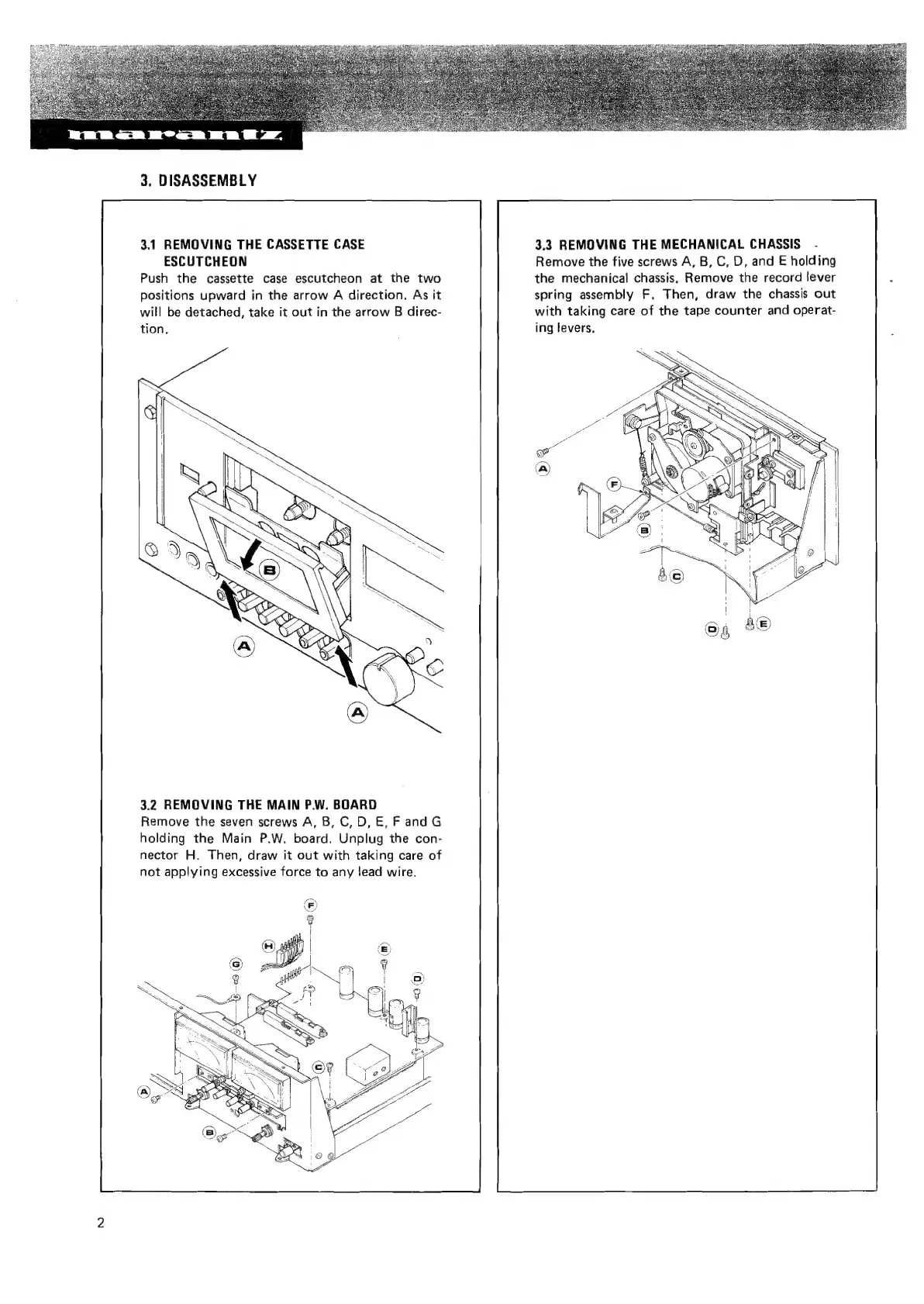

3. DISASSEMBLY
3.1 REMOVING THE CASSETTE CASE
ESCUTCHEON
Push the cassette case escutcheon at the two
positions upward in the arrow A direction. As it
will be detached, take it out in the arrow B direc-
tion.
3.2 REMOVING THE MAIN PW. BOARD
Remove the seven screws A, B, C,D, E, F andG
holding the Main P.W. board. Unplug the con-
nector H. Then, draw it out with taking care of
not applying excessive force to any lead wire.
3.3 REMOVING THE MECHANICAL CHASSIS -
Remove the five screws A, B, C, D, and E holding
the mechanical chassis. Remove the record lever
spring assembly F, Then, draw the chassis out
with taking care of the tape counter and operat-
ing levers,
