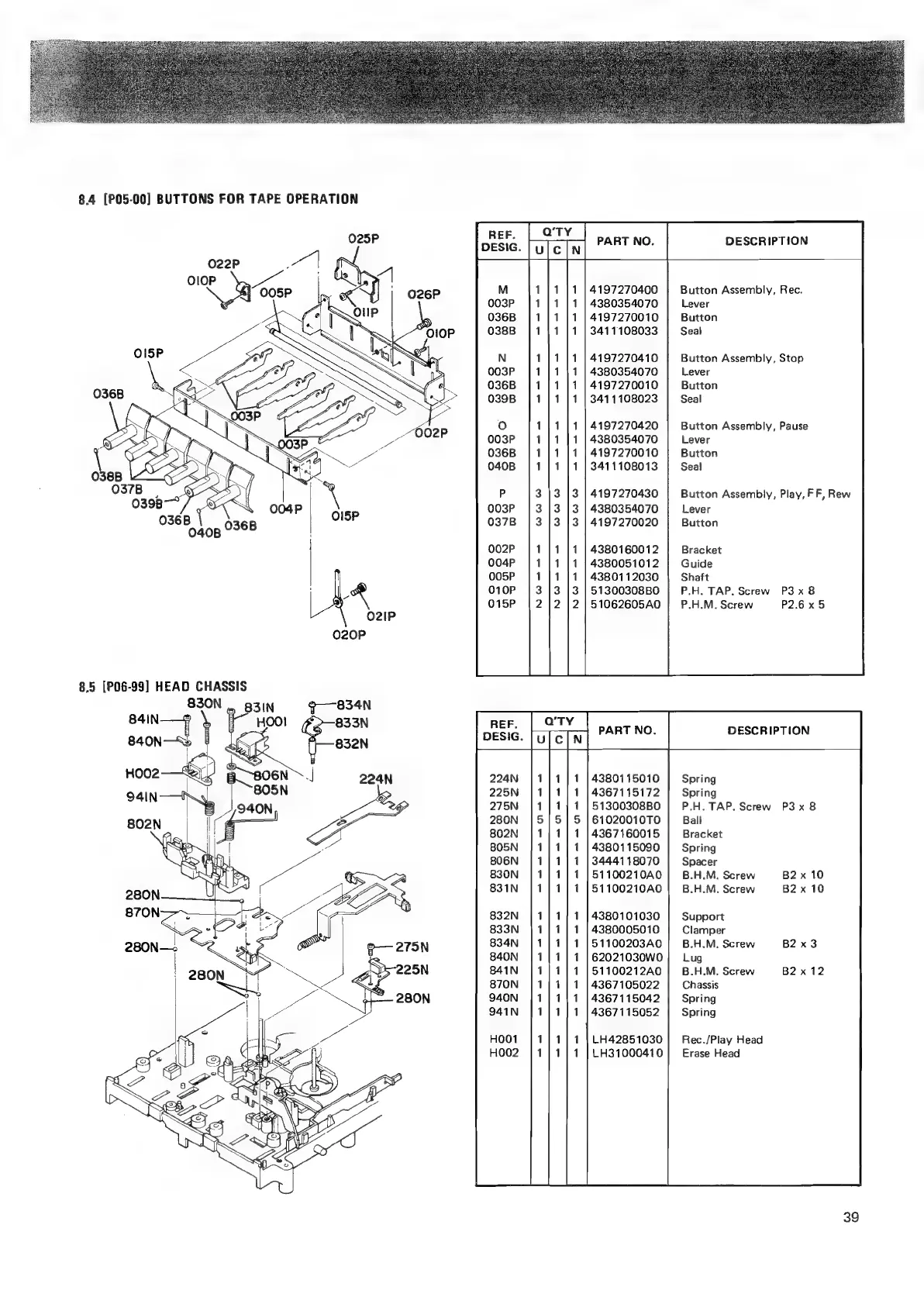

Marantz 5010 - Page 35

DESCRIPTION
4197270400 Button Assembly, Rec.
4380354070 Lever
4197270010 Button
3411108033 Seal
4197270410 Button Assembly, Stop
4380354070 Lever
4197270010 Button
3411108023 Seal
4197270420 Button Assembly, Pause
4380354070 Lever
4197270010 Button
3411108013 Seal
4197270430 Button Assembly, Play, FF, Rew
4380354070 Lever
4197270020 Button
4380160012 Bracket
4380051012 Guide
4380112030 Shaft
51300308B0 P.H. TAP. Screw P3 x8
51062605A0 | P.H.M. Screw P2.6x5
8.5 [P06-99] HEAD CHASSIS
830N
84IN
; 2 PART NO. DESCRIPTION
840N—SS ;
HO02 é 4380115010 | Spring
4367115172 Spring
51300308BO0 P.H. TAP. Screw P3x 8
61020010TO Ball
4367160015 Bracket
4380115090 Spring
3444118070 Spacer
51100210A0 B.H.M. Screw
51100210A0 B.H.M. Screw
4380101030 Support
4380005010 Clamper
51100203A0 | B.H.M. Screw
62021030W0 | Lug
51100212A0 B.H.M. Screw
4367105022 Chassis
4367115042 Spring
4367115052 Spring
LH42851030 Rec./Play Head
LH31000410 |] Erase Head
