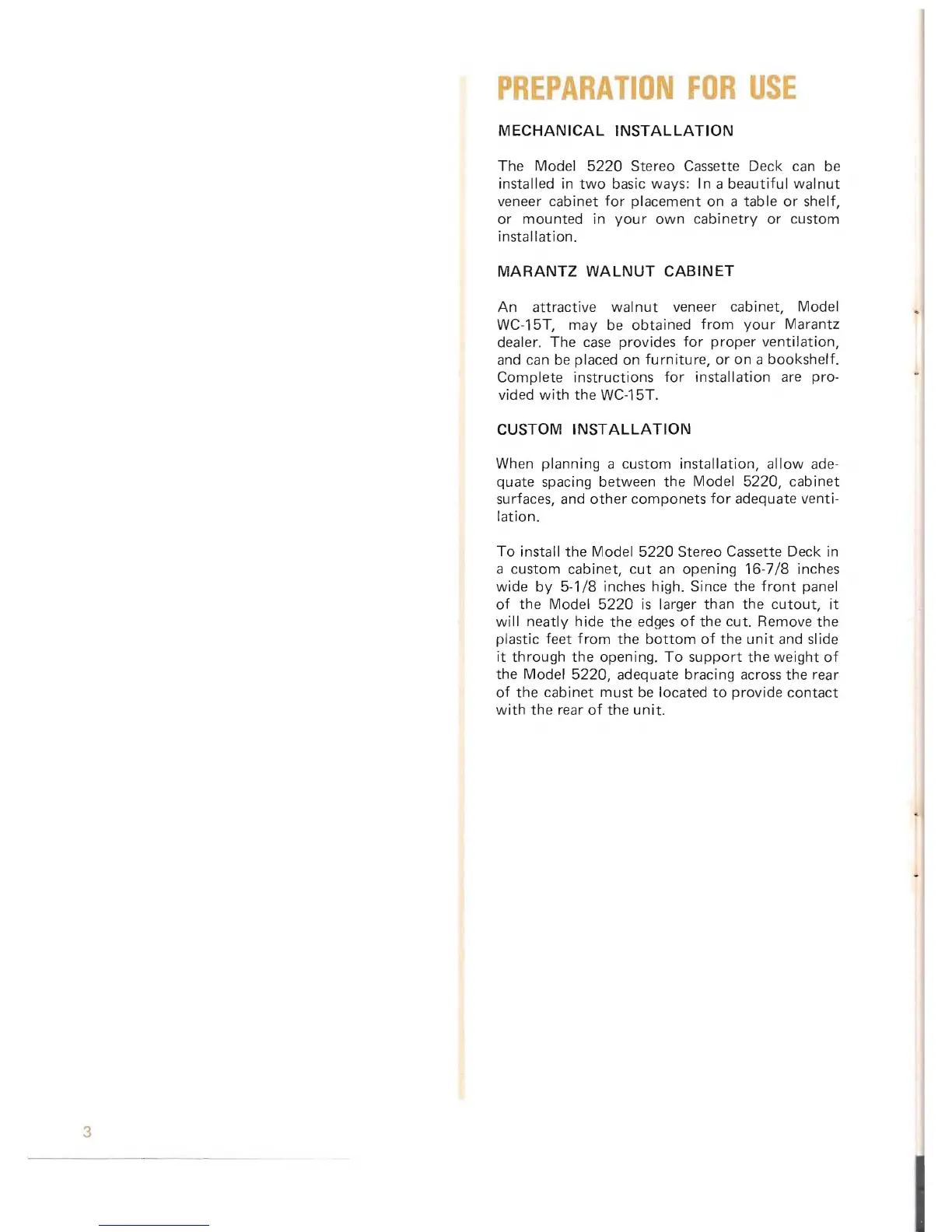

Marantz 5220 - PREPARATION FOR USE; MECHANICAL INSTALLATION; MARANTZ WALNUT CABINET; CUSTOM INSTALLATION

liON F
MECHANICAL INSTALLATION
The Model 5220 Stereo Cassette Deck can be
installed in
two basic ways : In a beautiful walnut
veneer cabinet for placement on a table or shelf,
or
mounted in your own cabinetry or custom
installation.
MARANTZ WALNUT CABINET
An attractive walnut veneer cabinet, Model
WC-15T,
may be obtained from your Marantz
dealer.
The case provides for proper ventilation,
and can be placed on furniture, or on a bookshelf.
Complete instructions for installation are pro -
vided
with the WC-15T.
CUSTOM INSTALLATIOI\I
When planning a custom installation, allow ade-
quate spacing between
the Model 5220, cabinet
surfaces, and other componets for adequate venti -
lation.
To install the Model 5220 Stereo Cassette Deck in
a
custom cabinet, cut an opening 16-7/8 inches
wide by 5-1/8 inches high. Since the front panel
of the Model 5220 is larger than the cutout, it
will neatly hide the edges of the cut. Remove the
plastic feet from the bottom of the unit and slide
it through the opening. To support the weight of
the Model 5220, adequate bracing across the rear
of the cabinet must be located to provide contact
with the rear of the unit.
