9.1-channel playback
This system, which is based on a 5.1-channel system, plays back up to
9.1-channels at the same time.
n

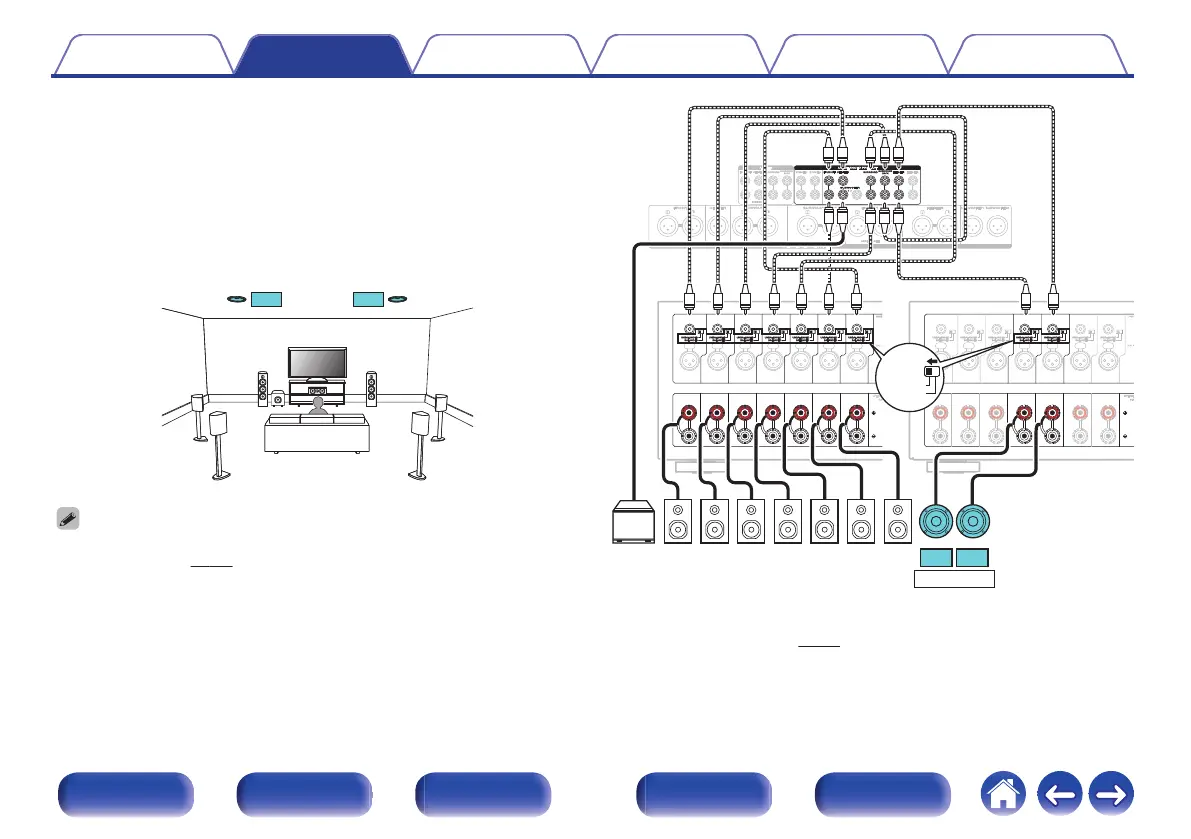

Example connection when using one set of ceiling
speakers
.
C
FL FR
SBL
SBR
SW
SL SR
TML TMR
0
Set “Height” - “Height Sp” to “2ch” in the menu when connecting in this
configuration. (v p. 219)
.
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL7
(C)
CHANNEL7
(C)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
SW SR SL FR FLC
BALANCED
BALANCED
UNBALANCED
UNBALANCED
TMLTMR
【
MM8077
】
SBLSBR
HEIGHT 1
z
z
The top front or top rear speakers can be connected instead of the top middle
speakers. In this case, set the ceiling speakers to be connected under “Height” -
“Layout” in the menu. (v p. 220)
