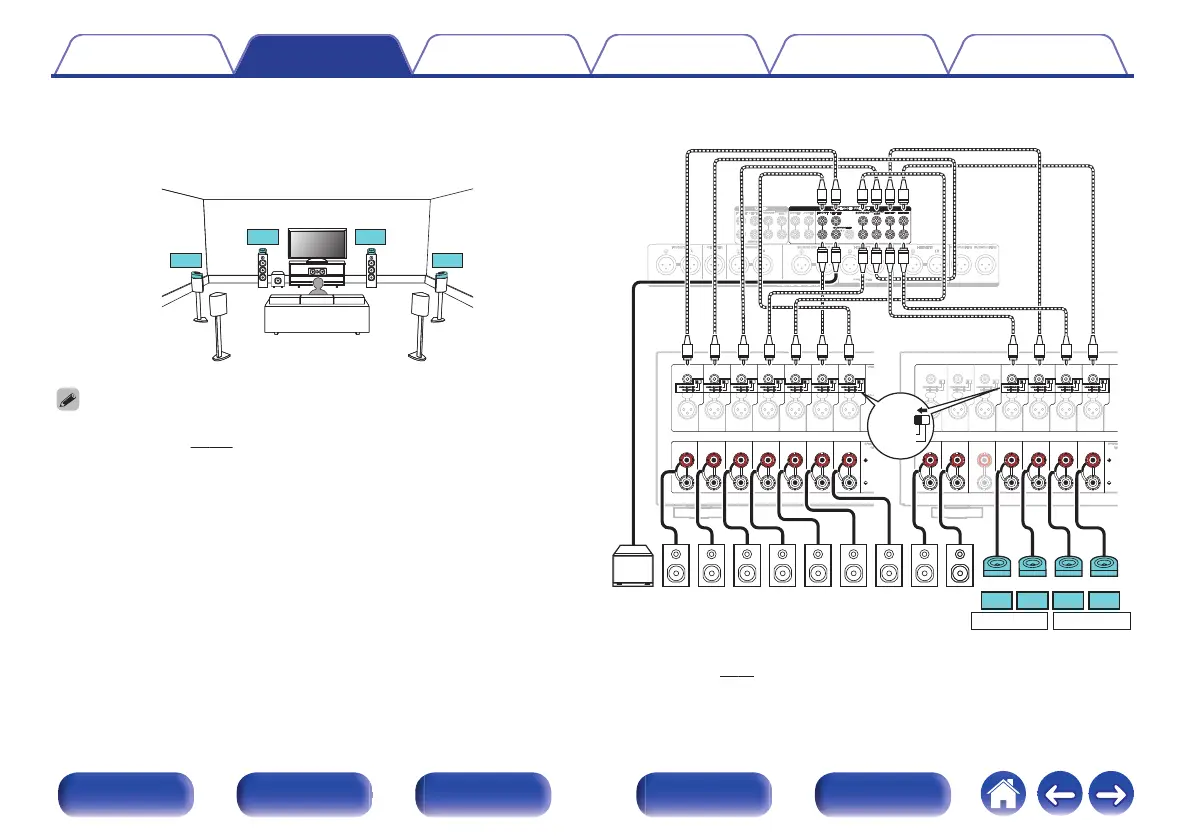

Example connection when using two sets of Dolby Atmos Enabled speakers
.
C
SBL
SBR
SW
SL SR
FL
FR
FDL FDR
SDL SDR
0
Set “Height” - “Dolby Sp” to “4ch” in the menu when connecting in this
configuration. (v
p. 219)
.
CHANNEL7
(C)
CHANNEL7
(C)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
BALANCED
BALANCED
UNBALANCED
UNBALANCED
SW SR SL FR FLC
SBLSBR
FWR FWL
HEIGHT 2
z
BALANCED
BALANCED
UNBALANCED
UNBALANCED
SDLSDR
HEIGHT 1
z
FDLFDR
【
MM8077
】
z
You can change the combination of the HEIGHT1 and HEIGHT2 channels in the
settings. (v p. 67)
