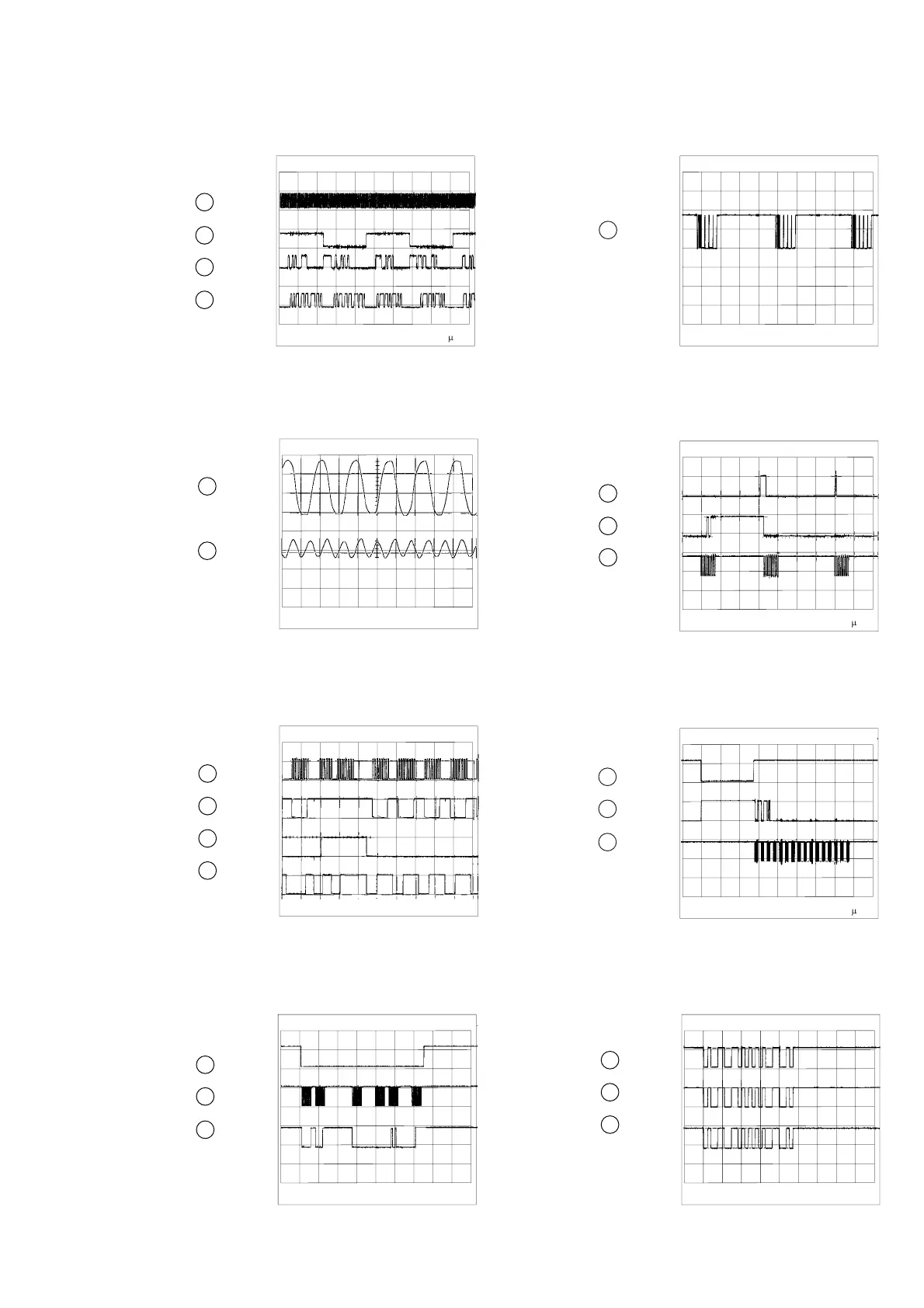

4. WAVEFORM ( FLAG NO. )
5 V/Div 5 Sec
1-A BCK
1-B LRCK
1-C ADDT
1-D DADT
2 V/Div 5 mSec
2-A TXD
2 V/Div 50 nSec
3-A FS256AD
3-B FS512
5 V/Div 10 Sec
4-A DAI_SI
4-B DAI_SO
4-C DAI_CLK
5 V/Div 0.1 mSec
5-A SBCK
5-B PW
5-C SBSY
5-D SFSY
(EXCK)
(SBSO)
(SCOR)
(WFCK)
5 V/Div 50 Sec
6-A TXT_DQSY
6-B TXT_SI
6-C TXT_CLK
5 V/Div 0.5 mSec
7-A FL_STB
7-B FL_CLK
7-C FL_SO
5 V/Div 5 mSec
8-A
8-B
8-C
