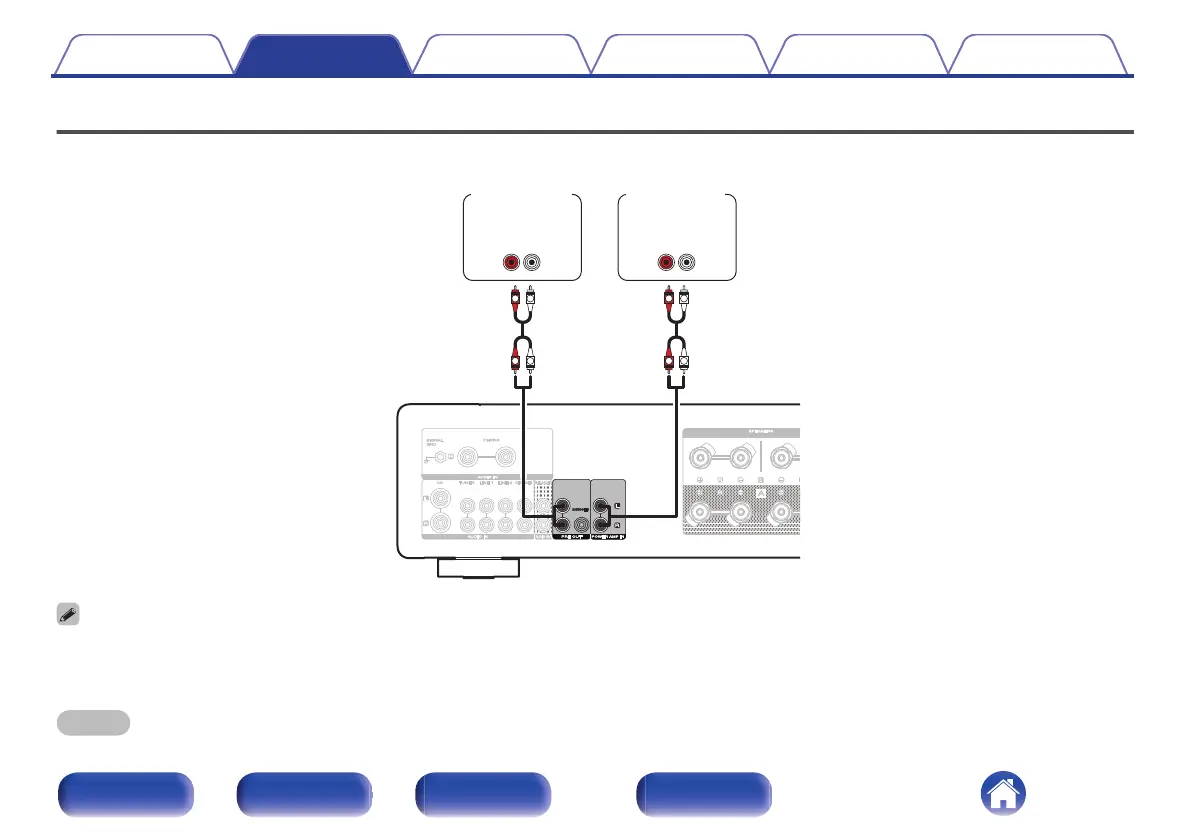

Connecting a pre-amplifier or power amplifier
Connect a power amplifier to the unit to use it as a pre-amplifier, or connect a pre-amplifier to the unit to use it as a power amplifier.
AUDIO
IN
LR
AUDIO
OUT
LR
L
L
R
R
L
L
R
R
Power
amplifier
Pre-
amplifier
0
When connecting a pre-amplifier and using this unit as a power amplifier, switch the input source to “PWR AMP”. (v p. 29)
0
This unit does not output the audio signal from the PRE OUT connectors when the speaker output setting is off.
0
The volume of the audio signal from the PRE OUT connectors is linked to the speakers A/B volume.
NOTE
0
Never insert the short-circuiting pin plug into the PRE OUT connectors. Doing so could result in damage.
