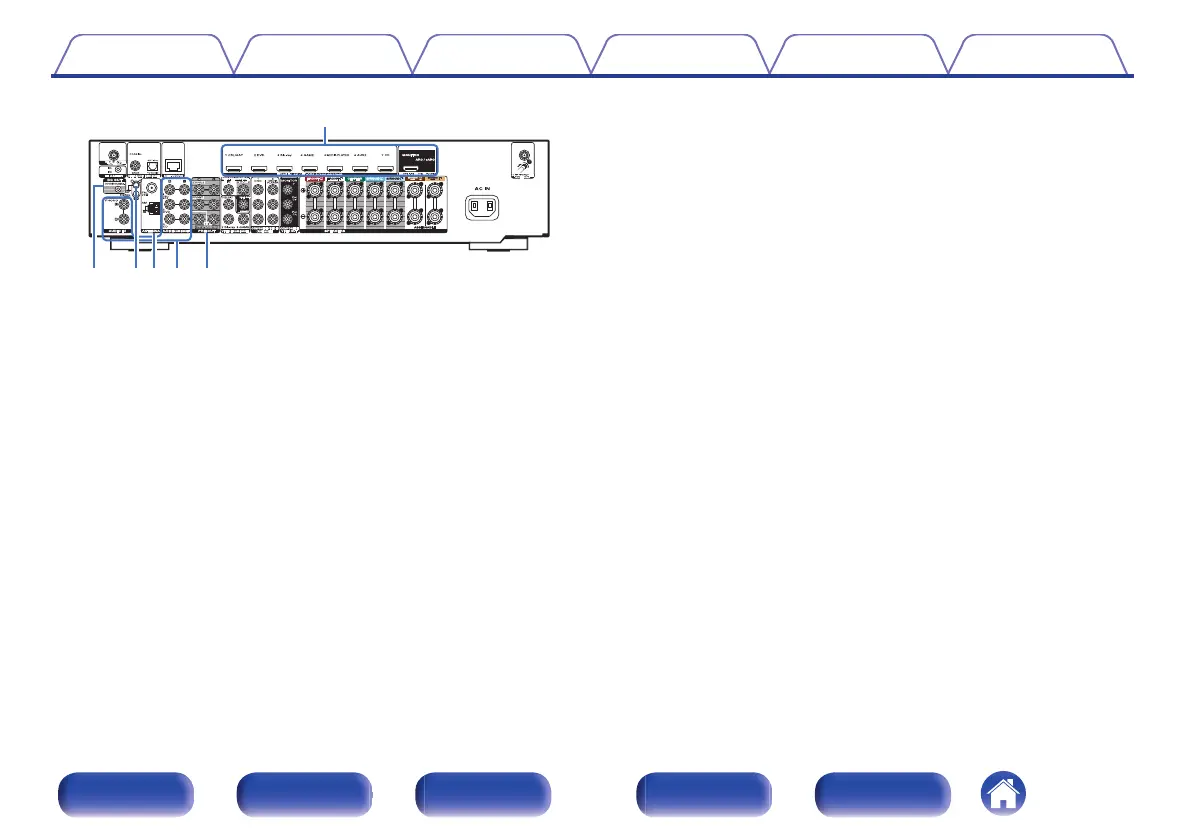

HDMI connectors
Used to connect devices equipped with HDMI connectors.
0
“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel) / eARC (Enhanced
Audio Return Channel)” (v p. 52)
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) / eARC
(Enhanced Audio Return Channel)” (v p. 54)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 57)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 58)
G
DC OUT jack
Used to connect devices equipped with the trigger function.
(v p. 67)
H
SIGNAL GND terminal
Used to connect a ground wire for the turntable. (v p. 60)
I
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 62)
J
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 57)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 58)
0
“Connecting a turntable” (v p. 60)
K
PRE OUT connectors
Used to connect a subwoofer with built-in amplifier or a power amplifier
for ZONE2.
0
“Connecting the subwoofer” (v p. 37)
0
“Connection 2 : Connection using an external amplifier
(ZONE2)” (v p. 141)
