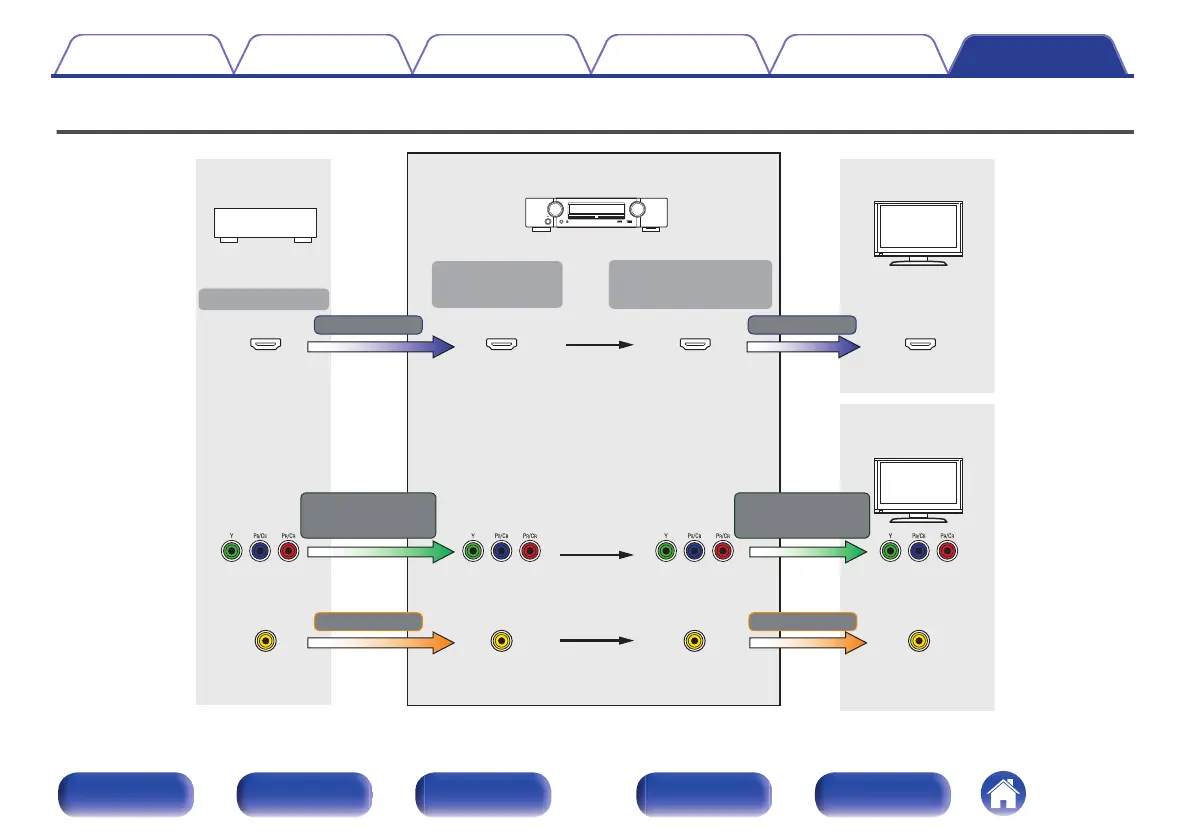

Relationship between video signals and monitor output
.
Video device
This unit
Output
Input (IN)
Output
(MONITOR OUT)
HDMI-compatible TV
HDMI connector HDMI connector HDMI connector HDMI connector
HDMI-incompatible TV
HDMI signal
HDMI signal
Component video
connectors
Component video
connectors
Component video
connectors
Component video
connectors
Video connector Video connector Video connector Video connector
Component
video signal
Component
video signal
Video signal Video signal
