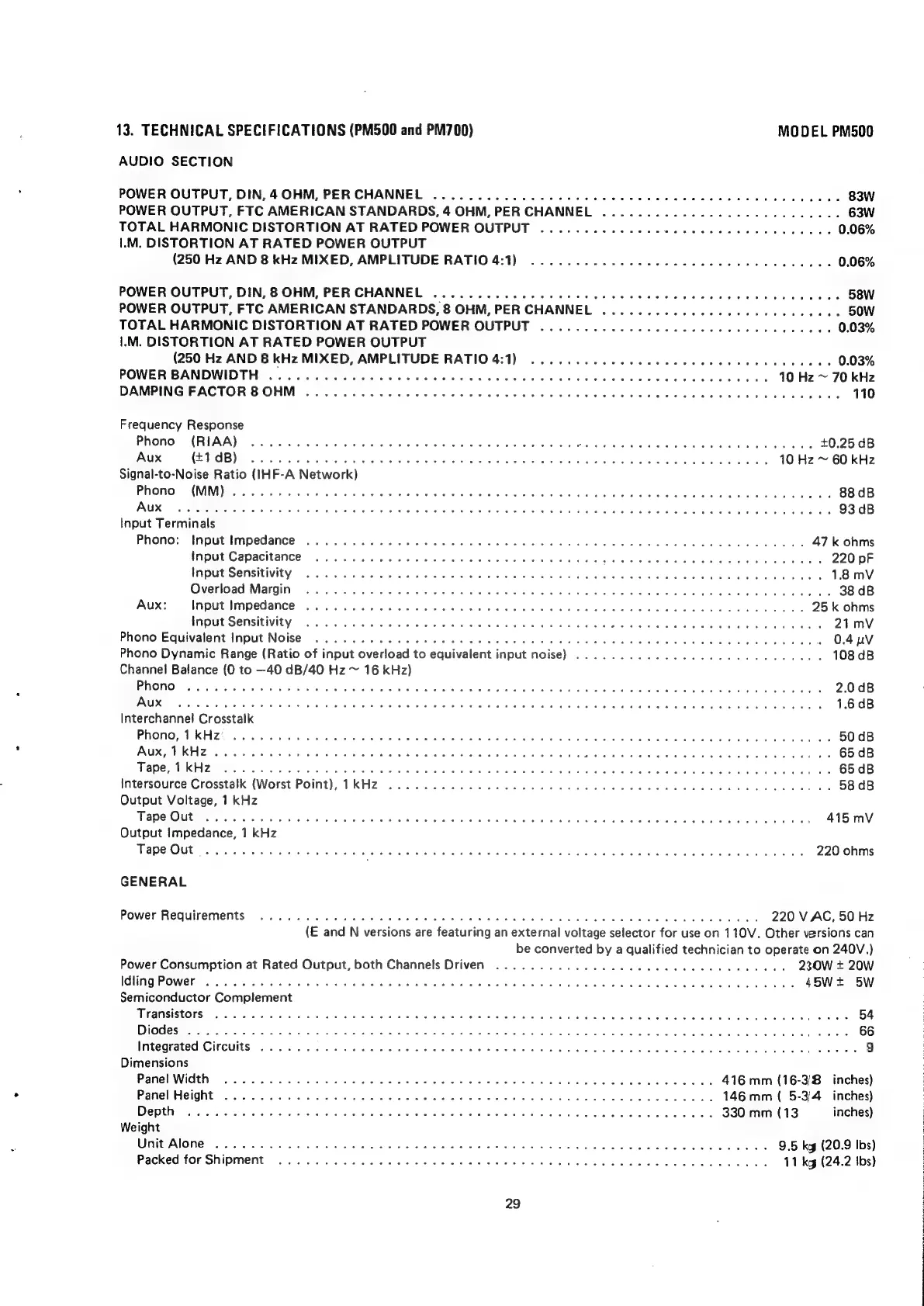

13. TECHNICAL SPECIFICATIONS (PM500 and PM700) MODEL PM500
AUDIO SECTION
POWER OUTPUT, DIN, 4OHM, PER CHANNEL .... 0... cc ee ce cee ce ee en tent eeneeeee 83W
POWER OUTPUT, FTC AMERICAN STANDARDS, 4 OHM, PER CHANNEL .............. 002-2 cececceue 63W
TOTAL HARMONIC DISTORTION AT RATED POWER OUTPUT .......... 00.2 cece cece cece eceecae 0.06%
LM. DISTORTION AT RATED POWER OUTPUT
(250 Hz AND 8 kHz MIXED, AMPLITUDE RATIO 4:1) 2.0.0.0. 0... cece cece cece e tee neeuees 0.06%
POWER OUTPUT, DIN, 8 OHM, PER CHANNEL ... 0... 0... cece ee ee ee ete teen ee enenneue 58w
POWER OUTPUT, FTC AMERICAN STANDARDS, 8 OHM, PER CHANNEL .............. 0000 ccceceuee 50W
TOTAL HARMONIC DISTORTION AT RATED POWER OUTPUT ......... 20... ccc cece cece ete ec uae 0.03%
1.M. DISTORTION AT RATED POWER OUTPUT
(250 Hz AND 8 kHz MIXED, AMPLITUDE RATIO 4:1) 22... ee eee ee eee eee 0.03%
POWER: BANDWIDTH? 2.5 ck 5 Sco sek od oS Sided OE Ok wh a ee Sa BN exe Wie ee ea Rte boa aie 10 Hz ~ 70 kHz
DAMPING FACTOR’S OHM: ici occ erm esa soko ace ees ES, Said, Ae eva ne! 2b Row wwe etal eete eids Mea anne iat a 110
Frequency Response
Phono (RIAA) so 8 se os ee en ew Se a eee A Rae as bce ae en Sw BE Re +0.25 dB
Aux (EVGB): Sesce dela ete te eed Wise oor 6 BE a he Ae ee a OE OR RES 10 Hz ~ 60 kHz
Signal-to-Noise Ratio (IHF-A Network)
PRONG: MMMM nase sree aeatten tal oe Mid eaten Sls NES cae rane UR ant i Es oR Oe) balls peas te, 88 dB
PRUKS Skis ah a oupeeat Se timate -lecaak die, med ty Sele. coebenetd One heal Peek, of Bh aedterded Sse arid ee Mei iat dachen bg Mg ad Es ented 93 dB
Input Terminals
Phono: Input:lmpedance: 24.000 bees Chet dwanec dda dagen vdai is cain da we dak 47 k ohms
Input Gapacitance: *.x.<.2)0.6. lence eliotn aise gd Gnd Gheiwe yd aca cac od ata GS ROR @ See ea ee OE gen hiaes aa acters 220 pF
Input: Sensitivity 0 c:3208 62.6 rei Sine hed FieG howe. Dele) el ve he dtemee ade agate es wk 1.8 mV
Overload Margini: 4.4.3 Ss. ccd ase ee wal iat Seta ah ae eda eS be oes Oe Tea See dae RE Wee alee 38 dB
Aux: Input lmpedanes aise crates cls ois edetece tude deg, suauk bec ae baled sue bea bated am watt 25 k ohms
Input Sensitivity: «2 .24c02-28.cs caked Vie k bee el eet od bye Oe oe Pe ee 21mV
Phono Equivalent Input Noise 2.0... ce ee eee ee ee ee eee been eee bene bens 0.4 uv
Phono Dynamic Range (Ratio of input overload to equivalent input noise) .... 2.0.0.0... 00 ee ee ee ees . 108dB
Channel Balance (0 to —40 dB/40 Hz ~ 16 kHz)
PRONG? ian. Patalesa ead beso eas aa neta Geis coca oi ab aed Gee tae Ahad a AU Oa dances wi els caeshiunne bo he peices a RVD etal belek uae 2.0 dB
PUKE Seen oe ecltres ed Ai than Ges Bats Bh al asa cll fot caida A sey at debe as Canals Agee atiaeNen aucid cuits Aland abe nee ee gic Ue Reto 1.6 dB
Interchannel Crosstalk
PROMO UI Z 5, Pecets PS tacit Miahata desta da Gh ehad exch Oita ornare atest Marae Gadel Eno eR taba ue litte: Ge Ph etonte 50 dB
PUK R265 fytircnctin tgs 24 Peaks cawcttden des aoe ce adel asada oe av, oalete: ee Goad aaa Atanas Ae eta ae ged ain wok Sh ek ee 65 dB
WAPO, WIKAZ* eS Set ecg BS iat ands, ad all wae Sal eet DALAL OA ber es pune as NR Buna ue thea ee Ree cae 65 dB
Intersource Crosstalk (Worst Point), TKHZ 2.0... 2... ec eee ee ee eee nena nee eer ns 58 dB
Output Voltage, 1 kHz
Pape Our oe as wee Bs Gate, Wad Vi Gd Sale Bat and etd -a ca Die we Maumdie a oaelaee BOG A Cae Salad fp lek 415 mV
Output Impedance, 1 kHz
Tape Our * second Mote ice Midst hit Pa teehee aaa So a eae yee aaah, bapa din dl ee Re la es 220 ohms
GENERAL
Power’ Requirements: 2.0 oc ecg ele Sek ee ee, aha ee ead eta dat eand ganged aE anduep au ae 220 VAC, 50 Hz
(E and N versions are featuring an external voltage selector for use on 110V. Other versions can
be converted by a qualified technician to operate on 240V.)
Power Consumption at Rated Output, both Channels Driven ........... 00 000. cece ee ce eee 230W + 20W
Idling: ROWer asses so Nece icc aece Bas bry We ee ees shag nae os Sade ae tide Lacon echo s “hea Bolla 228 Bralceracuewweduwae- SNe 45Wt 5W
Semiconductor Complement
STPANSESONS: oe eect hates Ske ies sage War ES lise eats of SRS Reet does, 4a Snes aoe dears Send Saeed s Peseta dah ase 8 54
DOCS ose. cs cone, ave le an Siu eh al eet at adh ene ethndl dare a Ma aw B Be vee Rael oe ee S 66
Integrated Circuits: jis. 3:02 :e.c. 5 a Bee Ue Sw Bd be ea adda eos Gran ale ea weed ae dao abide a bg wo tanTe 9
Dimensions
Panel: Width) 22sec ey m ot eee te pore ete te Saha Sa ee a als Sth teas 416 mm (16-3/8 inches)
Panel: Heights so. ays Bs Fs Rose nls Seale ar a eRe enya oe oes eee Oba 146 mm ( 5-3/4 inches)
Depths i sins s cutirenethd eek are 85 A aeiotaiioe a die og bana ee A os ane a dee va Bake 330 mm (13 inches}
Weight
UIA OMG er, Stiscare nc ive 10 wnteere eee tre date Oe tated Macs Siege eM, 28s Eat Oel Se Oe gS Meee hd 9.5 ky (20.9 Ibs)
Packed for Shipment. 2...) ..6 6 ed ace edd eG ee eee Ce ee ee ene aed ed ek a ele 11 kg (24.2 Ibs)
29
