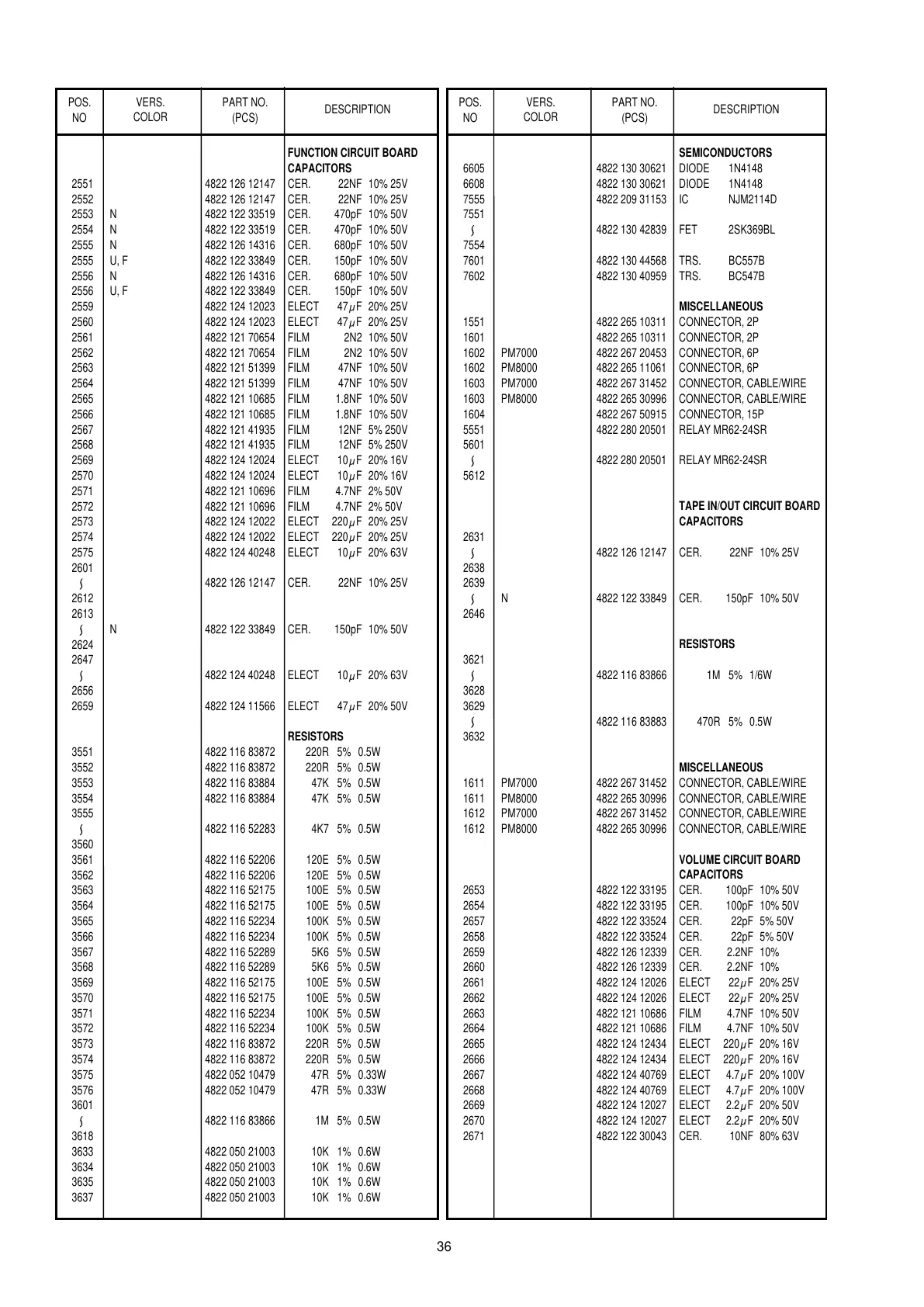

Marantz PM7000 Service Manual

POS.
NO
VERS.
COLOR
PART NO.
(PCS)
DESCRIPTION
POS.
NO
VERS.
COLOR
PART NO.
(PCS)
DESCRIPTION
FUNCTION CIRCUIT BOARD
CAPACITORS
2551 4822 126 12147 CER. 22NF 10% 25V
2552 4822 126 12147 CER. 22NF 10% 25V
2553 N 4822 122 33519 CER. 470pF 10% 50V
2554 N 4822 122 33519 CER. 470pF 10% 50V
2555 N 4822 126 14316 CER. 680pF 10% 50V
2555 U, F 4822 122 33849 CER. 150pF 10% 50V
2556 N 4822 126 14316 CER. 680pF 10% 50V
2556 U, F 4822 122 33849 CER. 150pF 10% 50V
2559 4822 124 12023 ELECT 47 F 20% 25V
2560 4822 124 12023 ELECT 47 F 20% 25V
2561 4822 121 70654 FILM 2N2 10% 50V
2562 4822 121 70654 FILM 2N2 10% 50V
2563 4822 121 51399 FILM 47NF 10% 50V
2564 4822 121 51399 FILM 47NF 10% 50V
2565 4822 121 10685 FILM 1.8NF 10% 50V
2566 4822 121 10685 FILM 1.8NF 10% 50V
2567 4822 121 41935 FILM 12NF 5% 250V
2568 4822 121 41935 FILM 12NF 5% 250V
2569 4822 124 12024 ELECT 10 F 20% 16V
2570 4822 124 12024 ELECT 10 F 20% 16V
2571 4822 121 10696 FILM 4.7NF 2% 50V
2572 4822 121 10696 FILM 4.7NF 2% 50V
2573 4822 124 12022 ELECT 220 F 20% 25V
2574 4822 124 12022 ELECT 220 F 20% 25V
2575 4822 124 40248 ELECT 10 F 20% 63V
2601
4822 126 12147 CER. 22NF 10% 25V
2612
2613
N 4822 122 33849 CER. 150pF 10% 50V
2624
2647
4822 124 40248 ELECT 10 F 20% 63V
2656
2659 4822 124 11566 ELECT 47 F 20% 50V
RESISTORS
3551 4822 116 83872 220R 5% 0.5W
3552 4822 116 83872 220R 5% 0.5W
3553 4822 116 83884 47K 5% 0.5W
3554 4822 116 83884 47K 5% 0.5W
3555
4822 116 52283 4K7 5% 0.5W
3560
3561 4822 116 52206 120E 5% 0.5W
3562 4822 116 52206 120E 5% 0.5W
3563 4822 116 52175 100E 5% 0.5W
3564 4822 116 52175 100E 5% 0.5W
3565 4822 116 52234 100K 5% 0.5W
3566 4822 116 52234 100K 5% 0.5W
3567 4822 116 52289 5K6 5% 0.5W
3568 4822 116 52289 5K6 5% 0.5W
3569 4822 116 52175 100E 5% 0.5W
3570 4822 116 52175 100E 5% 0.5W
3571 4822 116 52234 100K 5% 0.5W
3572 4822 116 52234 100K 5% 0.5W
3573 4822 116 83872 220R 5% 0.5W
3574 4822 116 83872 220R 5% 0.5W
3575 4822 052 10479 47R 5% 0.33W
3576 4822 052 10479 47R 5% 0.33W
3601
4822 116 83866 1M 5% 0.5W
3618
3633 4822 050 21003 10K 1% 0.6W
3634 4822 050 21003 10K 1% 0.6W
3635 4822 050 21003 10K 1% 0.6W
3637 4822 050 21003 10K 1% 0.6W
SEMICONDUCTORS
6605 4822 130 30621 DIODE 1N4148
6608 4822 130 30621 DIODE 1N4148
7555 4822 209 31153 IC NJM2114D
7551
4822 130 42839 FET 2SK369BL
7554
7601 4822 130 44568 TRS. BC557B
7602 4822 130 40959 TRS. BC547B
MISCELLANEOUS
1551 4822 265 10311 CONNECTOR, 2P
1601 4822 265 10311 CONNECTOR, 2P
1602 PM7000 4822 267 20453 CONNECTOR, 6P
1602 PM8000 4822 265 11061 CONNECTOR, 6P
1603 PM7000 4822 267 31452 CONNECTOR, CABLE/WIRE
1603 PM8000 4822 265 30996 CONNECTOR, CABLE/WIRE
1604 4822 267 50915 CONNECTOR, 15P
5551 4822 280 20501 RELAY MR62-24SR
5601
4822 280 20501 RELAY MR62-24SR
5612
TAPE IN/OUT CIRCUIT BOARD
CAPACITORS
2631
4822 126 12147 CER. 22NF 10% 25V
2638
2639
N 4822 122 33849 CER. 150pF 10% 50V
2646
RESISTORS
3621
4822 116 83866 1M 5% 1/6W
3628
3629
4822 116 83883 470R 5% 0.5W
3632
MISCELLANEOUS
1611 PM7000 4822 267 31452 CONNECTOR, CABLE/WIRE
1611 PM8000 4822 265 30996 CONNECTOR, CABLE/WIRE
1612 PM7000 4822 267 31452 CONNECTOR, CABLE/WIRE
1612 PM8000 4822 265 30996 CONNECTOR, CABLE/WIRE
VOLUME CIRCUIT BOARD
CAPACITORS
2653 4822 122 33195 CER. 100pF 10% 50V
2654 4822 122 33195 CER. 100pF 10% 50V
2657 4822 122 33524 CER. 22pF 5% 50V
2658 4822 122 33524 CER. 22pF 5% 50V
2659 4822 126 12339 CER. 2.2NF 10%
2660 4822 126 12339 CER. 2.2NF 10%
2661 4822 124 12026 ELECT 22 F 20% 25V
2662 4822 124 12026 ELECT 22 F 20% 25V
2663 4822 121 10686 FILM 4.7NF 10% 50V
2664 4822 121 10686 FILM 4.7NF 10% 50V
2665 4822 124 12434 ELECT 220 F 20% 16V
2666 4822 124 12434 ELECT 220 F 20% 16V
2667 4822 124 40769 ELECT 4.7 F 20% 100V
2668 4822 124 40769 ELECT 4.7 F 20% 100V
2669 4822 124 12027 ELECT 2.2 F 20% 50V
2670 4822 124 12027 ELECT 2.2 F 20% 50V
2671 4822 122 30043 CER. 10NF 80% 63V
36
