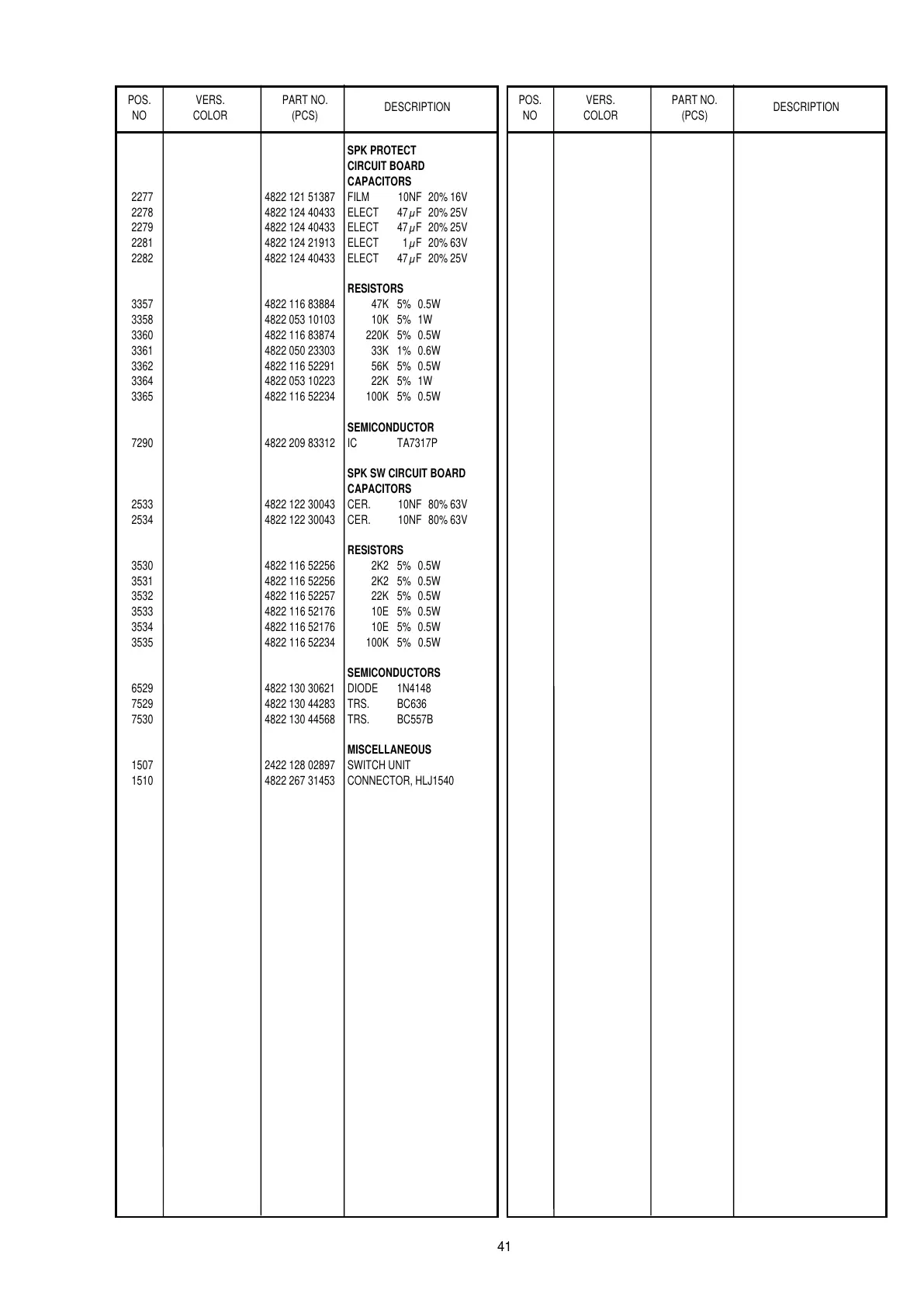

Marantz PM7000 Service Manual

41
POS.
NO
VERS.
COLOR
PART NO.
(PCS)
DESCRIPTION
POS.
NO
VERS.
COLOR
PART NO.
(PCS)
DESCRIPTION
SPK PROTECT
CIRCUIT BOARD
CAPACITORS
2277 4822 121 51387 FILM 10NF 20% 16V
2278 4822 124 40433 ELECT 47 F 20% 25V
2279 4822 124 40433 ELECT 47 F 20% 25V
2281 4822 124 21913 ELECT 1 F 20% 63V
2282 4822 124 40433 ELECT 47 F 20% 25V
RESISTORS
3357 4822 116 83884 47K 5% 0.5W
3358 4822 053 10103 10K 5% 1W
3360 4822 116 83874 220K 5% 0.5W
3361 4822 050 23303 33K 1% 0.6W
3362 4822 116 52291 56K 5% 0.5W
3364 4822 053 10223 22K 5% 1W
3365 4822 116 52234 100K 5% 0.5W
SEMICONDUCTOR
7290 4822 209 83312 IC TA7317P
SPK SW CIRCUIT BOARD
CAPACITORS
2533 4822 122 30043 CER. 10NF 80% 63V
2534 4822 122 30043 CER. 10NF 80% 63V
RESISTORS
3530 4822 116 52256 2K2 5% 0.5W
3531 4822 116 52256 2K2 5% 0.5W
3532 4822 116 52257 22K 5% 0.5W
3533 4822 116 52176 10E 5% 0.5W
3534 4822 116 52176 10E 5% 0.5W
3535 4822 116 52234 100K 5% 0.5W
SEMICONDUCTORS
6529 4822 130 30621 DIODE 1N4148
7529 4822 130 44283 TRS. BC636
7530 4822 130 44568 TRS. BC557B
MISCELLANEOUS
1507 2422 128 02897 SWITCH UNIT
1510 4822 267 31453 CONNECTOR, HLJ1540
