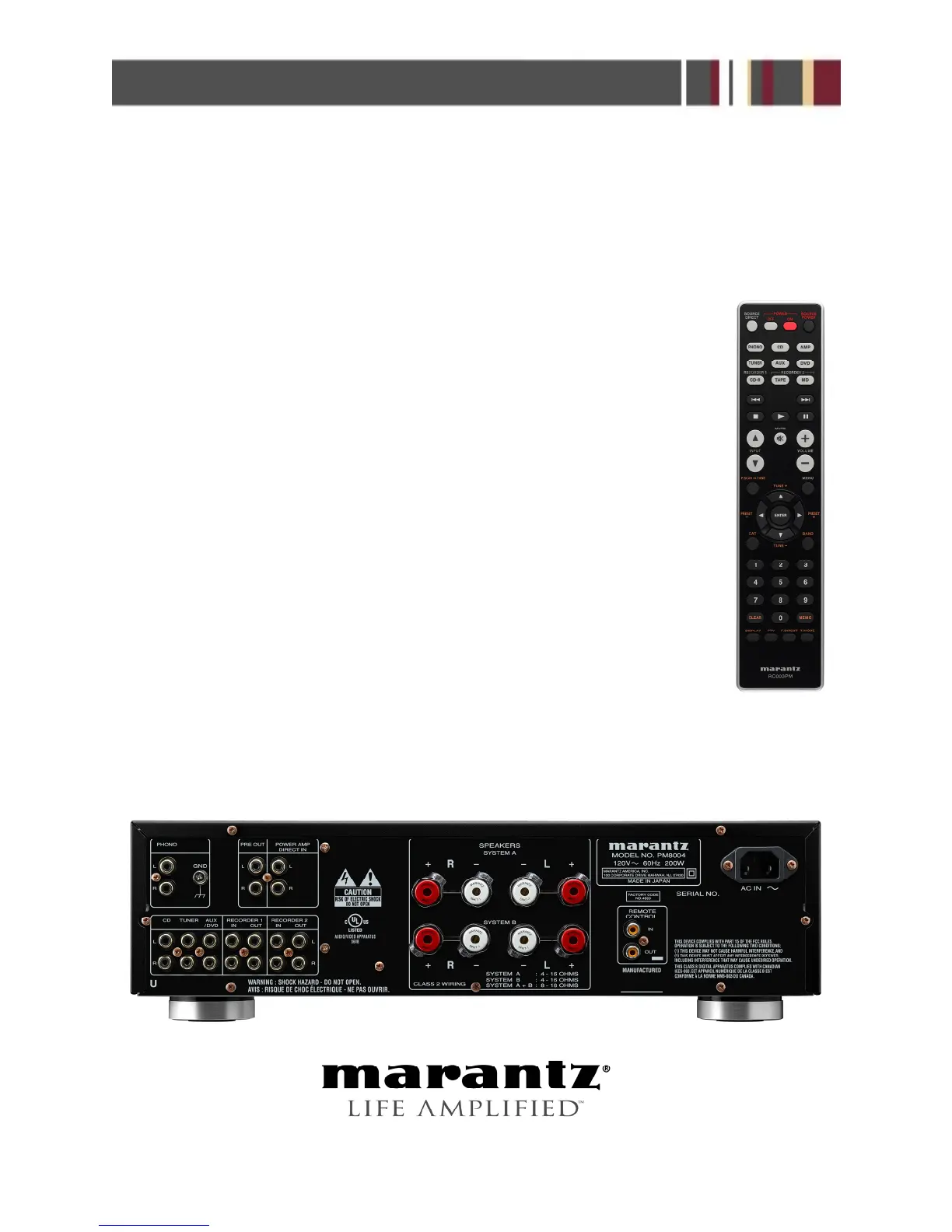

PM8004
Integrated Amplifier w/ Power Amp Direct
©2010 Marantz America, LLC · www.marantz.com
All specifications, dimensions and weights are subject to change without notice.
D&M Holdings, Marantz, Marantz America, LLC. or any of its subsidiaries will not assume any liability for errors in this spec sheet which may result in consequential errors
Being made by dealers, designers, custom installers, cabinet makers or end users, etc based upon information contained within this document.
Power Output
(20 Hz – 20 kHz simultaneous drive of both channels): 70 W x 2 (8 ohm load)
100 W x 2 (4 ohm load)
Total Harmonic Distortion
(20Hz – 20kHz simultaneous drive of both channels, 8Ù load): 0.02%
Output Bandwidth
(8Ù load, 0.05%): 5Hz – 60kHz
Frequency Response
(CD, 1W, 8Ù load): 5Hz – 100kHz ±3dB
Damping Factor
(8Ù load, 20Hz – 20kHz): 100
Input Sensitivity/Input Impedance
PHONO (MM): 2mV/47kOhms
CD, TUNER, AUX/DVD, RECORDER: 200mV/20kOhms
POWER AMP DIRECT IN 1.6V/15kOhms
Output Voltage/Output Impedance
PRE OUT 1.6V/600Ohms
Maximum Allowable Phono Input Level (1kHz)
MM 100mV
RIAA deviation (20Hz ~ 20kHz) ±0.5dB
S/N (IHF-A 8 ohm load)
PHONO (MM) 87dB (5mV input, 1W output)
CD, TUNER, AUX/DVD, RECORDER 106dB (2V input, Rated output)
POWER AMP DIRECT IN . 125dB (Rated output)
Tone Control
Bass (50Hz) ±10dB
Mid (900Hz) ±6dB
Treble (15kHz) ±10dB
Power Requirement
AC 120V 60Hz
Power Consumption
200W
UL60065
0.3W
Standby power consumption
Weight
26.9 lbs (12.2kg)
For the purpose of improvement, the specifications and design are subject to change without notice.
