Marantz PMD560 Service Manual

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
54
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION

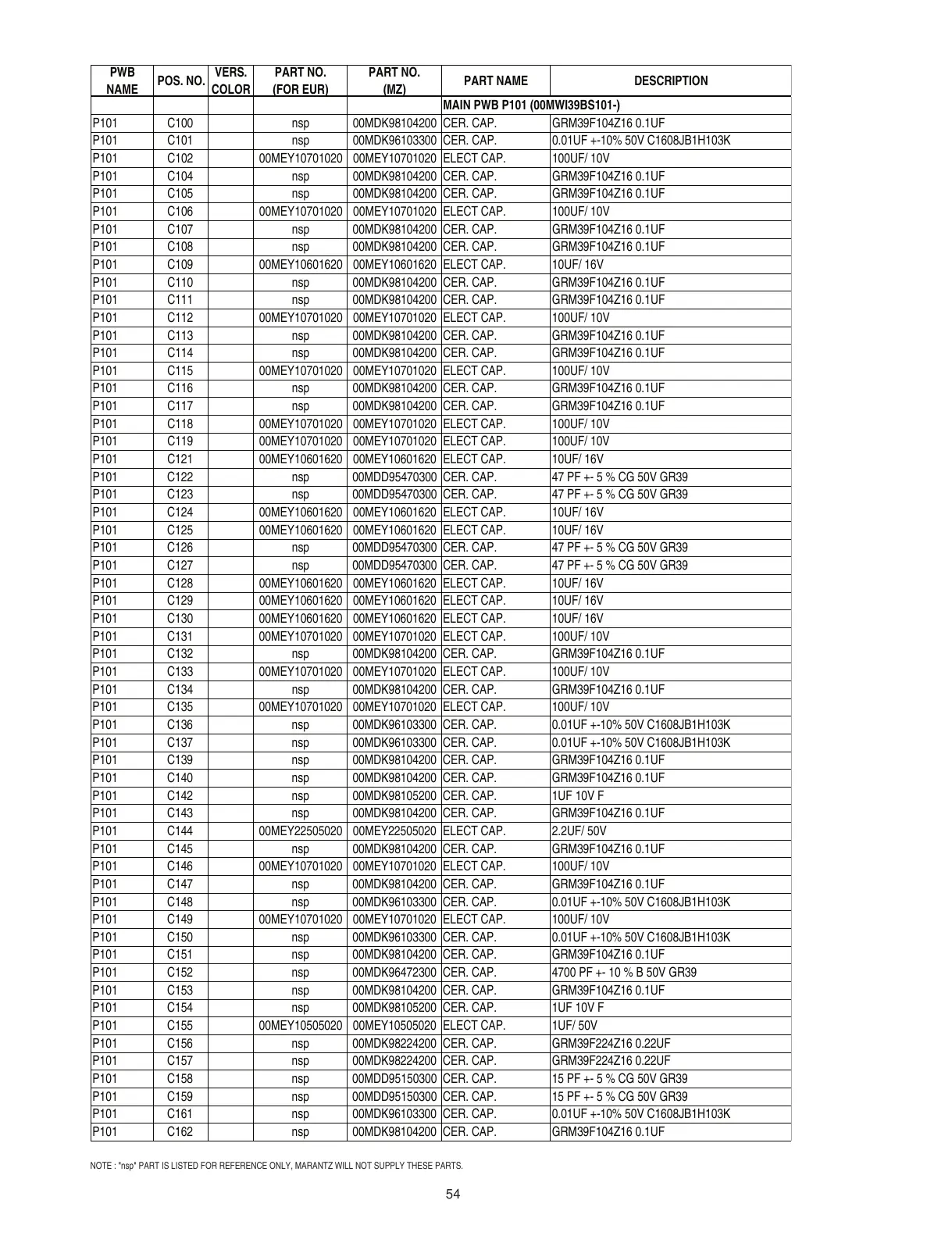

MAIN PWB P101 (00MWI39BS101-)
P101 C100 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C101 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C102 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V
P101 C104 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C105 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C106 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V
P101 C107 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C108 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C109 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V
P101 C110 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C111 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C112 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V
P101 C113 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C114 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C115 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V
P101 C116 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C117 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C118 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V
P101 C119 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V
P101 C121 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V
P101 C122 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39
P101 C123 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39
P101 C124 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V
P101 C125 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V
P101 C126 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39
P101 C127 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39
P101 C128 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V
P101 C129 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V
P101 C130 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V
P101 C131 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V
P101 C132 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C133 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V
P101 C134 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C135 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V
P101 C136 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C137 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C139 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C140 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C142 nsp 00MDK98105200 CER. CAP. 1UF 10V F
P101 C143 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C144 00MEY22505020 00MEY22505020 ELECT CAP. 2.2UF/ 50V
P101 C145 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C146 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V
P101 C147 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C148 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C149 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V
P101 C150 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C151 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C152 nsp 00MDK96472300 CER. CAP. 4700 PF +- 10 % B 50V GR39
P101 C153 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C154 nsp 00MDK98105200 CER. CAP. 1UF 10V F
P101 C155 00MEY10505020 00MEY10505020 ELECT CAP. 1UF/ 50V
P101 C156 nsp 00MDK98224200 CER. CAP. GRM39F224Z16 0.22UF
P101 C157 nsp 00MDK98224200 CER. CAP. GRM39F224Z16 0.22UF
P101 C158 nsp 00MDD95150300 CER. CAP. 15 PF +- 5 % CG 50V GR39
P101 C159 nsp 00MDD95150300 CER. CAP. 15 PF +- 5 % CG 50V GR39
P101 C161 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C162 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
