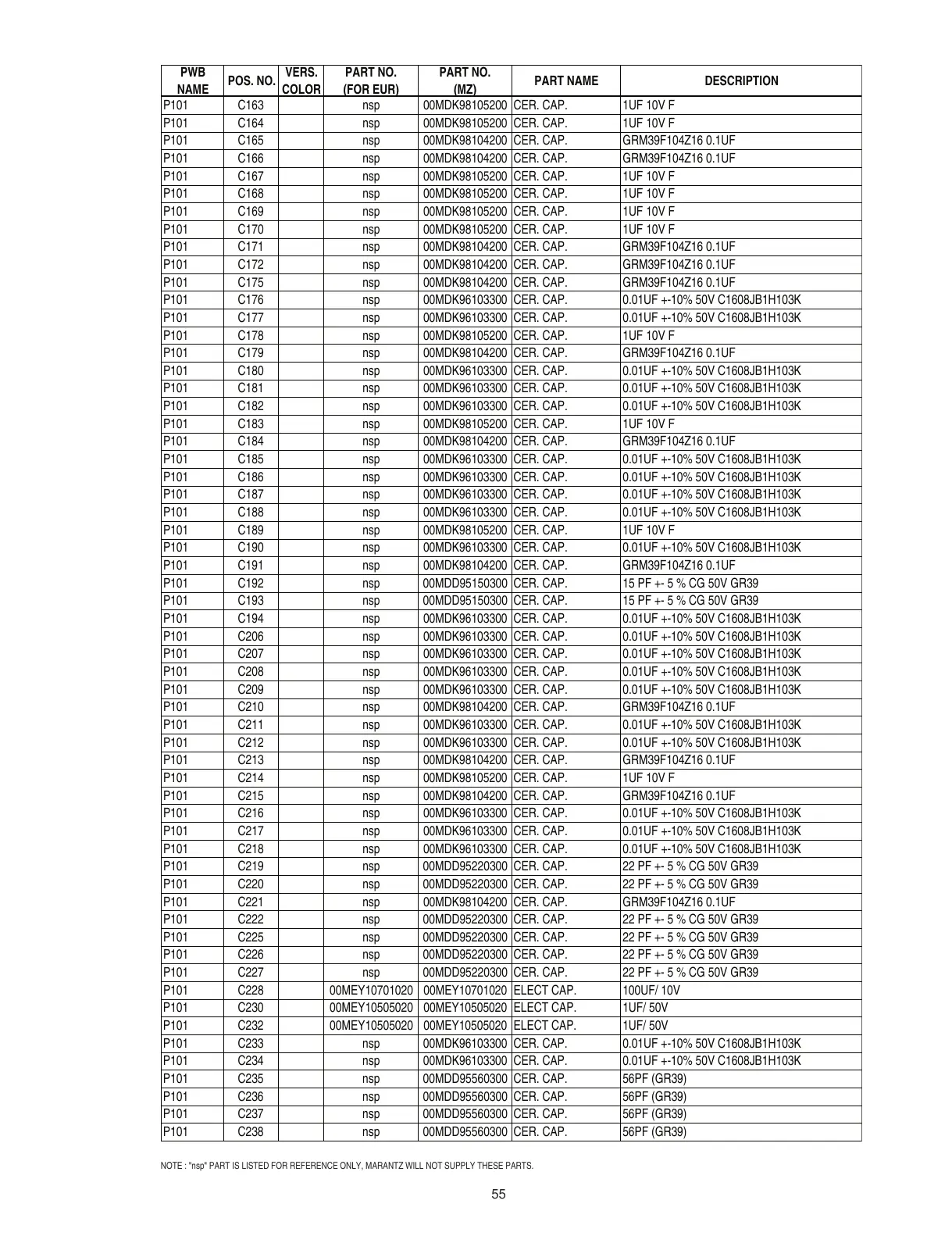

Marantz PMD560 Service Manual

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
55
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
P101 C163 nsp 00MDK98105200 CER. CAP. 1UF 10V F
P101 C164 nsp 00MDK98105200 CER. CAP. 1UF 10V F
P101 C165 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C166 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C167 nsp 00MDK98105200 CER. CAP. 1UF 10V F
P101 C168 nsp 00MDK98105200 CER. CAP. 1UF 10V F
P101 C169 nsp 00MDK98105200 CER. CAP. 1UF 10V F
P101 C170 nsp 00MDK98105200 CER. CAP. 1UF 10V F
P101 C171 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C172 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C175 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C176 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C177 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C178 nsp 00MDK98105200 CER. CAP. 1UF 10V F
P101 C179 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C180 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C181 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C182 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C183 nsp 00MDK98105200 CER. CAP. 1UF 10V F
P101 C184 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C185 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C186 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C187 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C188 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C189 nsp 00MDK98105200 CER. CAP. 1UF 10V F
P101 C190 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C191 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C192 nsp 00MDD95150300 CER. CAP. 15 PF +- 5 % CG 50V GR39
P101 C193 nsp 00MDD95150300 CER. CAP. 15 PF +- 5 % CG 50V GR39
P101 C194 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C206 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C207 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C208 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C209 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C210 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C211 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C212 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C213 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C214 nsp 00MDK98105200 CER. CAP. 1UF 10V F
P101 C215 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C216 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C217 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C218 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C219 nsp 00MDD95220300 CER. CAP. 22 PF +- 5 % CG 50V GR39
P101 C220 nsp 00MDD95220300 CER. CAP. 22 PF +- 5 % CG 50V GR39
P101 C221 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C222 nsp 00MDD95220300 CER. CAP. 22 PF +- 5 % CG 50V GR39
P101 C225 nsp 00MDD95220300 CER. CAP. 22 PF +- 5 % CG 50V GR39
P101 C226 nsp 00MDD95220300 CER. CAP. 22 PF +- 5 % CG 50V GR39
P101 C227 nsp 00MDD95220300 CER. CAP. 22 PF +- 5 % CG 50V GR39
P101 C228 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V
P101 C230 00MEY10505020 00MEY10505020 ELECT CAP. 1UF/ 50V
P101 C232 00MEY10505020 00MEY10505020 ELECT CAP. 1UF/ 50V
P101 C233 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C234 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C235 nsp 00MDD95560300 CER. CAP. 56PF (GR39)
P101 C236 nsp 00MDD95560300 CER. CAP. 56PF (GR39)
P101 C237 nsp 00MDD95560300 CER. CAP. 56PF (GR39)
P101 C238 nsp 00MDD95560300 CER. CAP. 56PF (GR39)
