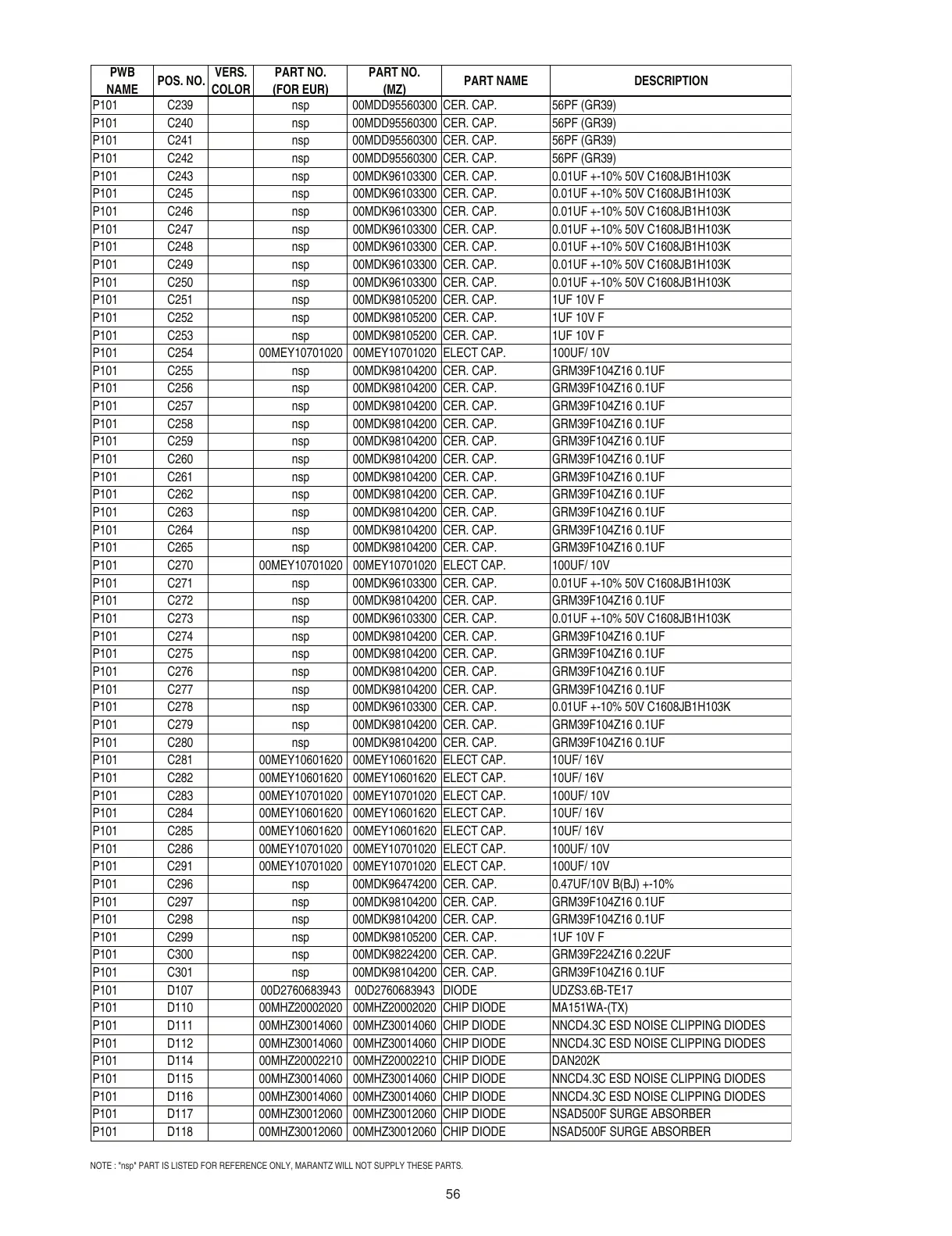

Marantz PMD560 Service Manual

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
56
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
P101 C239 nsp 00MDD95560300 CER. CAP. 56PF (GR39)
P101 C240 nsp 00MDD95560300 CER. CAP. 56PF (GR39)
P101 C241 nsp 00MDD95560300 CER. CAP. 56PF (GR39)
P101 C242 nsp 00MDD95560300 CER. CAP. 56PF (GR39)
P101 C243 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C245 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C246 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C247 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C248 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C249 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C250 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C251 nsp 00MDK98105200 CER. CAP. 1UF 10V F
P101 C252 nsp 00MDK98105200 CER. CAP. 1UF 10V F
P101 C253 nsp 00MDK98105200 CER. CAP. 1UF 10V F
P101 C254 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V
P101 C255 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C256 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C257 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C258 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C259 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C260 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C261 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C262 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C263 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C264 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C265 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C270 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V
P101 C271 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C272 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C273 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C274 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C275 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C276 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C277 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C278 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P101 C279 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C280 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C281 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V
P101 C282 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V
P101 C283 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V
P101 C284 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V
P101 C285 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V
P101 C286 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V
P101 C291 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V
P101 C296 nsp 00MDK96474200 CER. CAP. 0.47UF/10V B(BJ) +-10%
P101 C297 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C298 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 C299 nsp 00MDK98105200 CER. CAP. 1UF 10V F
P101 C300 nsp 00MDK98224200 CER. CAP. GRM39F224Z16 0.22UF
P101 C301 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P101 D107 00D2760683943 00D2760683943 DIODE UDZS3.6B-TE17
P101 D110 00MHZ20002020 00MHZ20002020 CHIP DIODE MA151WA-(TX)
P101 D111 00MHZ30014060 00MHZ30014060 CHIP DIODE NNCD4.3C ESD NOISE CLIPPING DIODES
P101 D112 00MHZ30014060 00MHZ30014060 CHIP DIODE NNCD4.3C ESD NOISE CLIPPING DIODES
P101 D114 00MHZ20002210 00MHZ20002210 CHIP DIODE DAN202K
P101 D115 00MHZ30014060 00MHZ30014060 CHIP DIODE NNCD4.3C ESD NOISE CLIPPING DIODES
P101 D116 00MHZ30014060 00MHZ30014060 CHIP DIODE NNCD4.3C ESD NOISE CLIPPING DIODES
P101 D117 00MHZ30012060 00MHZ30012060 CHIP DIODE NSAD500F SURGE ABSORBER
P101 D118 00MHZ30012060 00MHZ30012060 CHIP DIODE NSAD500F SURGE ABSORBER
