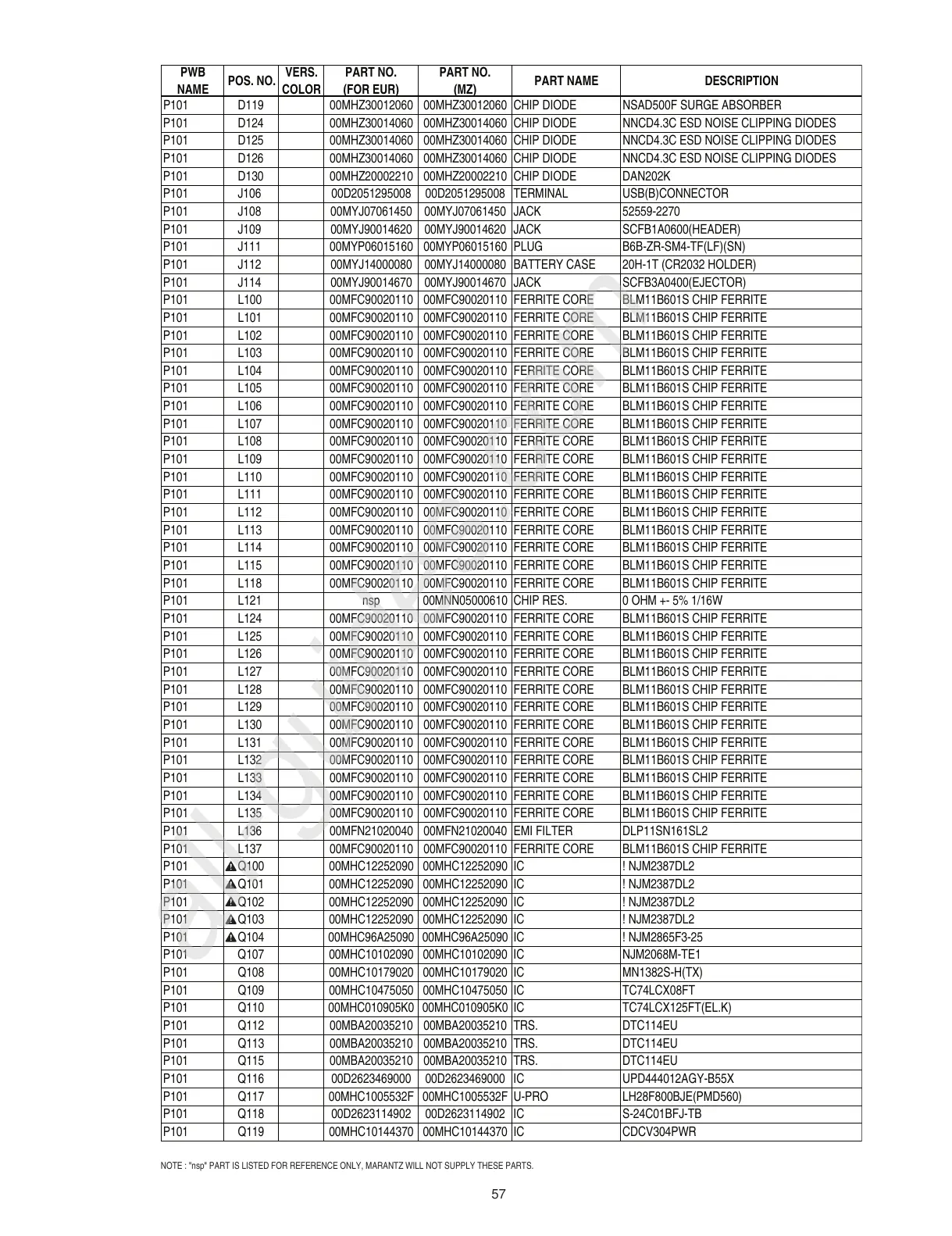

Marantz PMD560 Service Manual

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
57
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
P101 D119 00MHZ30012060 00MHZ30012060 CHIP DIODE NSAD500F SURGE ABSORBER
P101 D124 00MHZ30014060 00MHZ30014060 CHIP DIODE NNCD4.3C ESD NOISE CLIPPING DIODES
P101 D125 00MHZ30014060 00MHZ30014060 CHIP DIODE NNCD4.3C ESD NOISE CLIPPING DIODES
P101 D126 00MHZ30014060 00MHZ30014060 CHIP DIODE NNCD4.3C ESD NOISE CLIPPING DIODES
P101 D130 00MHZ20002210 00MHZ20002210 CHIP DIODE DAN202K
P101 J106 00D2051295008 00D2051295008 TERMINAL USB(B)CONNECTOR
P101 J108 00MYJ07061450 00MYJ07061450 JACK 52559-2270
P101 J109 00MYJ90014620 00MYJ90014620 JACK SCFB1A0600(HEADER)
P101 J111 00MYP06015160 00MYP06015160 PLUG B6B-ZR-SM4-TF(LF)(SN)
P101 J112 00MYJ14000080 00MYJ14000080 BATTERY CASE 20H-1T (CR2032 HOLDER)
P101 J114 00MYJ90014670 00MYJ90014670 JACK SCFB3A0400(EJECTOR)
P101 L100 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L101 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L102 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L103 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L104 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L105 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L106 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L107 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L108 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L109 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L110 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L111 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L112 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L113 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L114 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L115 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L118 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L121 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 L124 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L125 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L126 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L127 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L128 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L129 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L130 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L131 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L132 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L133 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L134 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L135 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101 L136 00MFN21020040 00MFN21020040 EMI FILTER DLP11SN161SL2
P101 L137 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P101
!
Q100 00MHC12252090 00MHC12252090 IC ! NJM2387DL2
P101
!
Q101 00MHC12252090 00MHC12252090 IC ! NJM2387DL2
P101
!
Q102 00MHC12252090 00MHC12252090 IC ! NJM2387DL2
P101
!
Q103 00MHC12252090 00MHC12252090 IC ! NJM2387DL2
P101
!
Q104 00MHC96A25090 00MHC96A25090 IC ! NJM2865F3-25
P101 Q107 00MHC10102090 00MHC10102090 IC NJM2068M-TE1
P101 Q108 00MHC10179020 00MHC10179020 IC MN1382S-H(TX)
P101 Q109 00MHC10475050 00MHC10475050 IC TC74LCX08FT
P101 Q110 00MHC010905K0 00MHC010905K0 IC TC74LCX125FT(EL.K)
P101 Q112 00MBA20035210 00MBA20035210 TRS. DTC114EU
P101 Q113 00MBA20035210 00MBA20035210 TRS. DTC114EU
P101 Q115 00MBA20035210 00MBA20035210 TRS. DTC114EU
P101 Q116 00D2623469000 00D2623469000 IC UPD444012AGY-B55X
P101 Q117 00MHC1005532F 00MHC1005532F U-PRO LH28F800BJE(PMD560)
P101 Q118 00D2623114902 00D2623114902 IC S-24C01BFJ-TB
P101 Q119 00MHC10144370 00MHC10144370 IC CDCV304PWR
