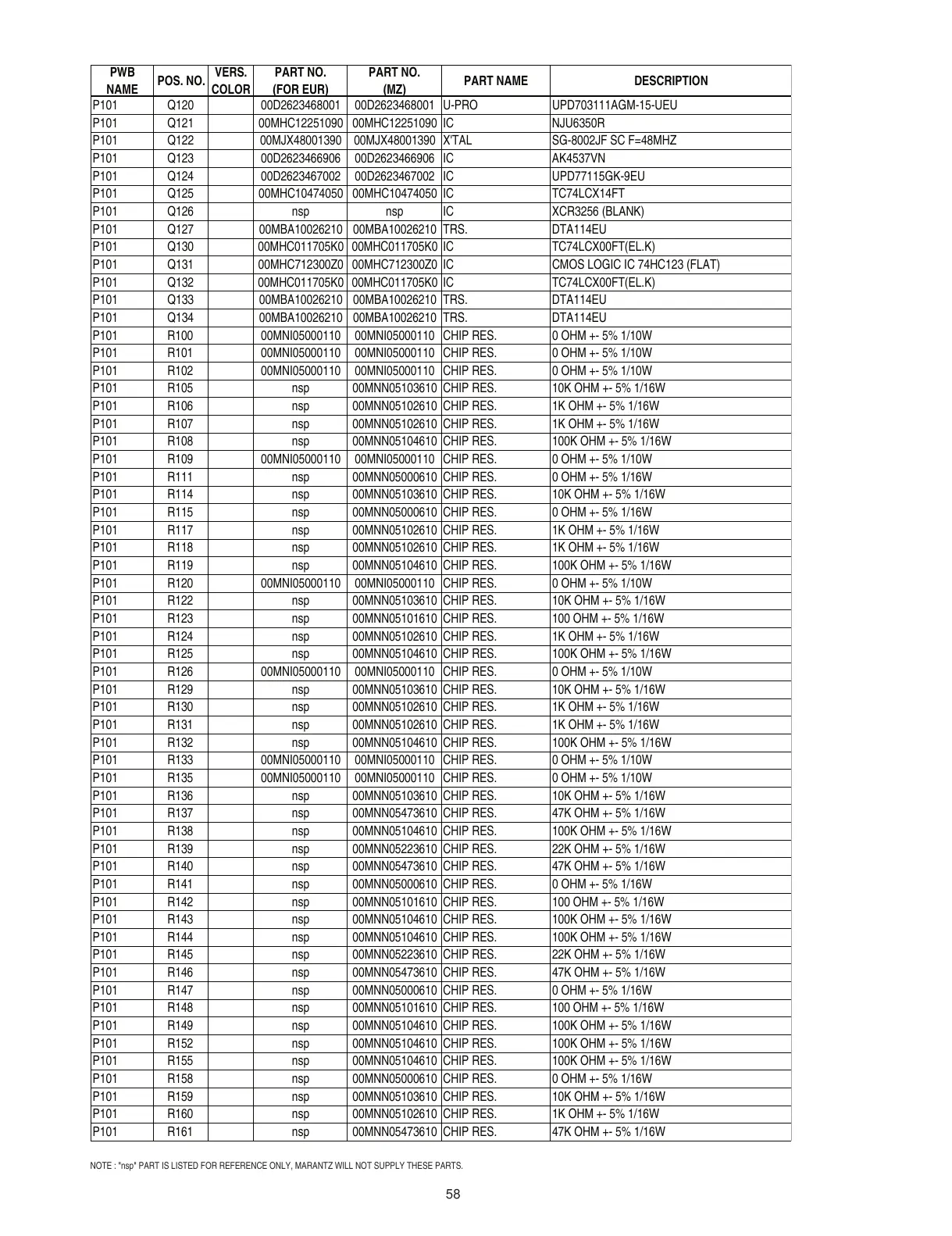

Marantz PMD560 Service Manual

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
58
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
P101 Q120 00D2623468001 00D2623468001 U-PRO UPD703111AGM-15-UEU
P101 Q121 00MHC12251090 00MHC12251090 IC NJU6350R
P101 Q122 00MJX48001390 00MJX48001390 X'TAL SG-8002JF SC F=48MHZ
P101 Q123 00D2623466906 00D2623466906 IC AK4537VN
P101 Q124 00D2623467002 00D2623467002 IC UPD77115GK-9EU
P101 Q125 00MHC10474050 00MHC10474050 IC TC74LCX14FT
P101 Q126 nsp nsp IC XCR3256 (BLANK)
P101 Q127 00MBA10026210 00MBA10026210 TRS. DTA114EU
P101 Q130 00MHC011705K0 00MHC011705K0 IC TC74LCX00FT(EL.K)
P101 Q131 00MHC712300Z0 00MHC712300Z0 IC CMOS LOGIC IC 74HC123 (FLAT)
P101 Q132 00MHC011705K0 00MHC011705K0 IC TC74LCX00FT(EL.K)
P101 Q133 00MBA10026210 00MBA10026210 TRS. DTA114EU
P101 Q134 00MBA10026210 00MBA10026210 TRS. DTA114EU
P101 R100 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P101 R101 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P101 R102 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P101 R105 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P101 R106 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P101 R107 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P101 R108 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P101 R109 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P101 R111 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R114 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P101 R115 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R117 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P101 R118 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P101 R119 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P101 R120 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P101 R122 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P101 R123 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W
P101 R124 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P101 R125 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P101 R126 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P101 R129 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P101 R130 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P101 R131 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P101 R132 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P101 R133 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P101 R135 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P101 R136 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P101 R137 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R138 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P101 R139 nsp 00MNN05223610 CHIP RES. 22K OHM +- 5% 1/16W
P101 R140 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R141 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R142 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W
P101 R143 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P101 R144 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P101 R145 nsp 00MNN05223610 CHIP RES. 22K OHM +- 5% 1/16W
P101 R146 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R147 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R148 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W
P101 R149 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P101 R152 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P101 R155 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P101 R158 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R159 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P101 R160 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P101 R161 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
